DRIVER INSTALLATION

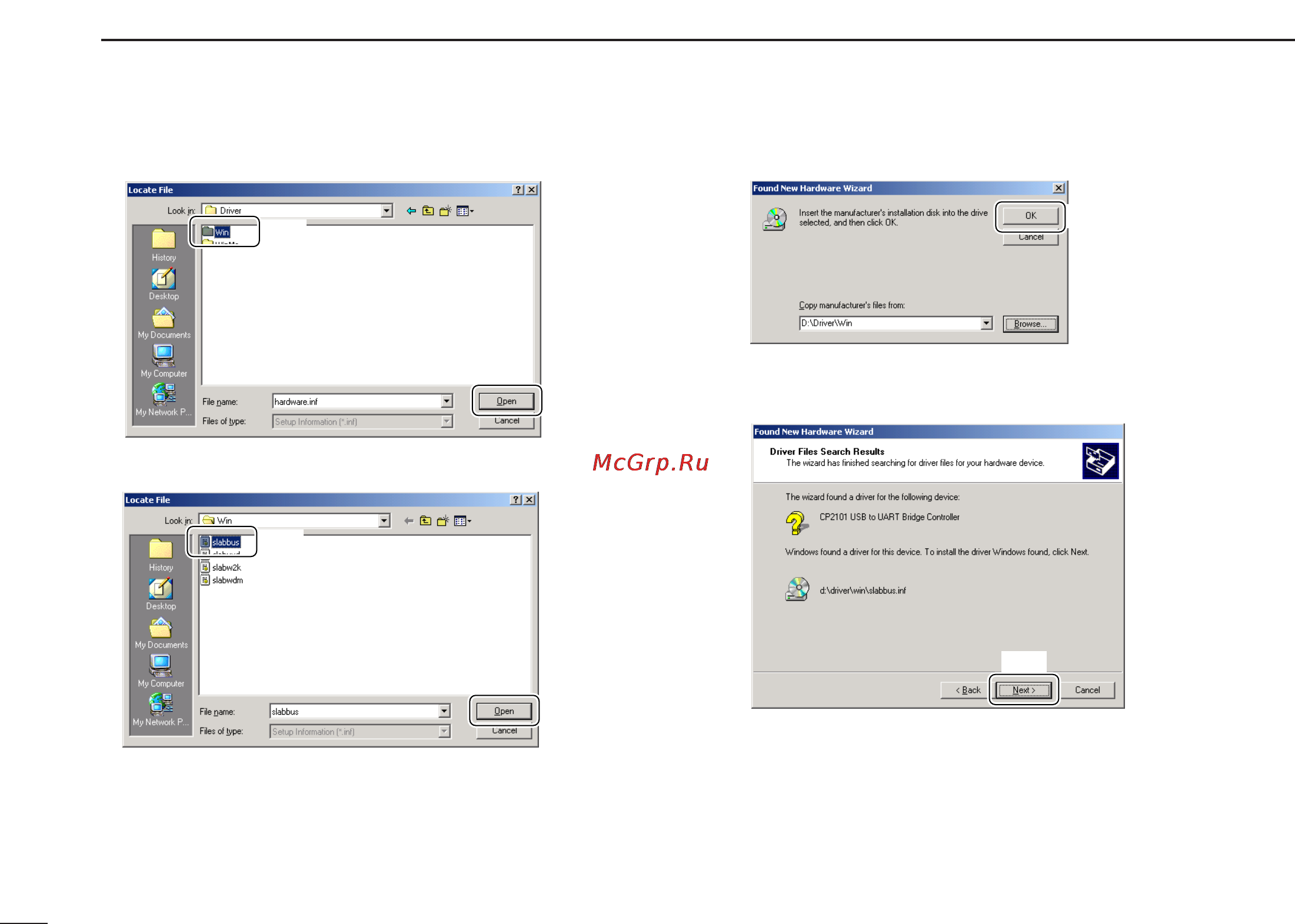

!1Select “Win” in the “Driver” folder, then click [Open].

!2Select “Slabbus” in the “Win” folder, then click [Open].

!3Click [OK].

!4When the driver is found, the following dialog is displayed.

Click [Next>] to start the installation.

Click
