Инструкция по эксплуатации Страница: 99

Icom IC-PCR2500 [99/148] Scan speed setting

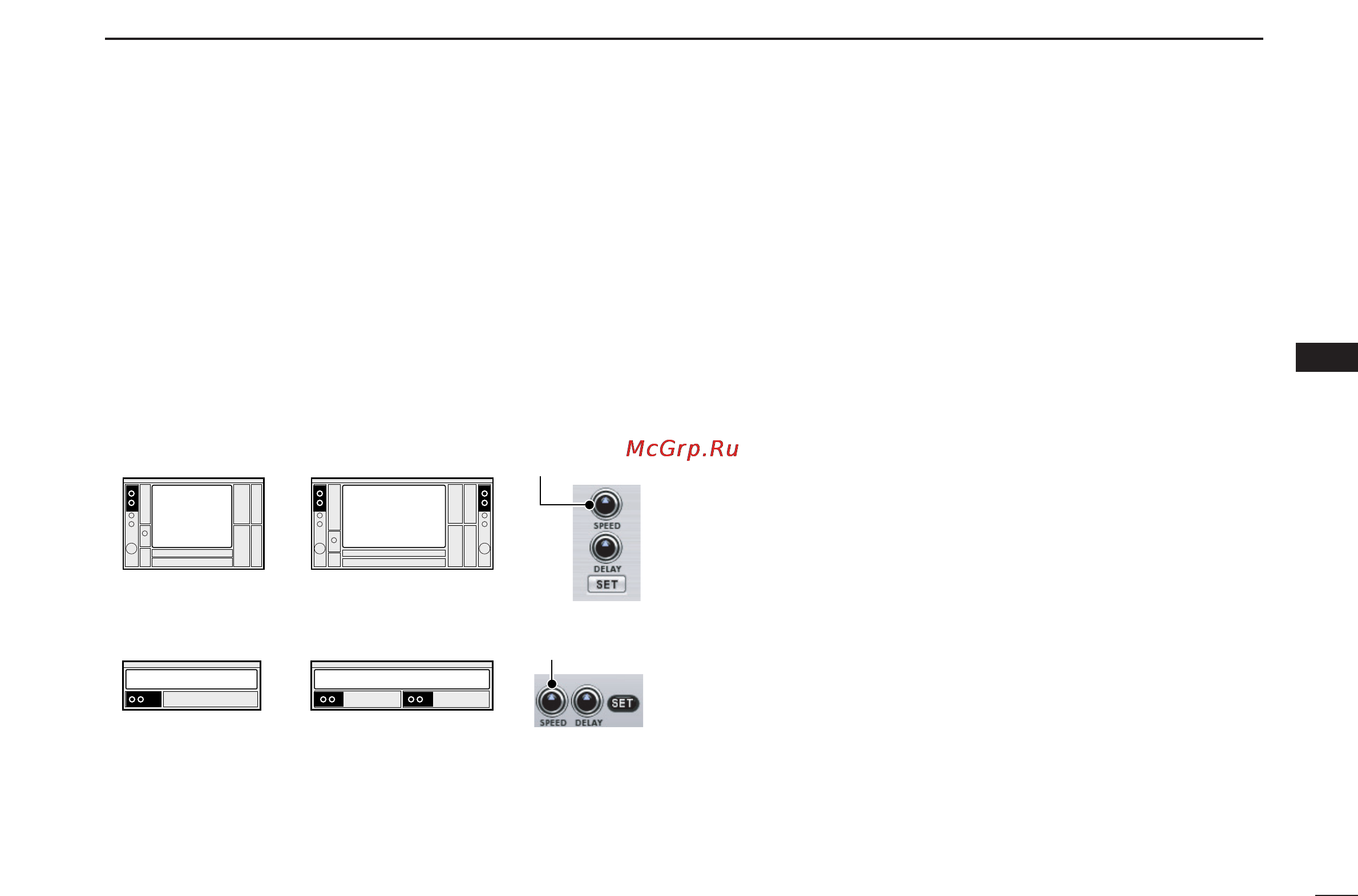

SCAN OPERATION (Multi-function receiver/Component screens only)

■ Scan speed setting

The searching speed of frequencies or memory channels is

variable.

Click the zSPEEDx control to set the speed at which scans

search through frequencies/memories for signals.

• Right-click to increase the speed level.

• Left-click to decrease the speed level.

• When clicking and holding zSPEEDx, the scan speed scrolls up or

down.

METER/SCAN

MAIN SUB

• [Compo] screen

• [Receiver] screen

IC-PCR2500IC-PCR1500

zSPEEDx
