Icom IC-PCR2500 [134/148] Optional unit installation and other

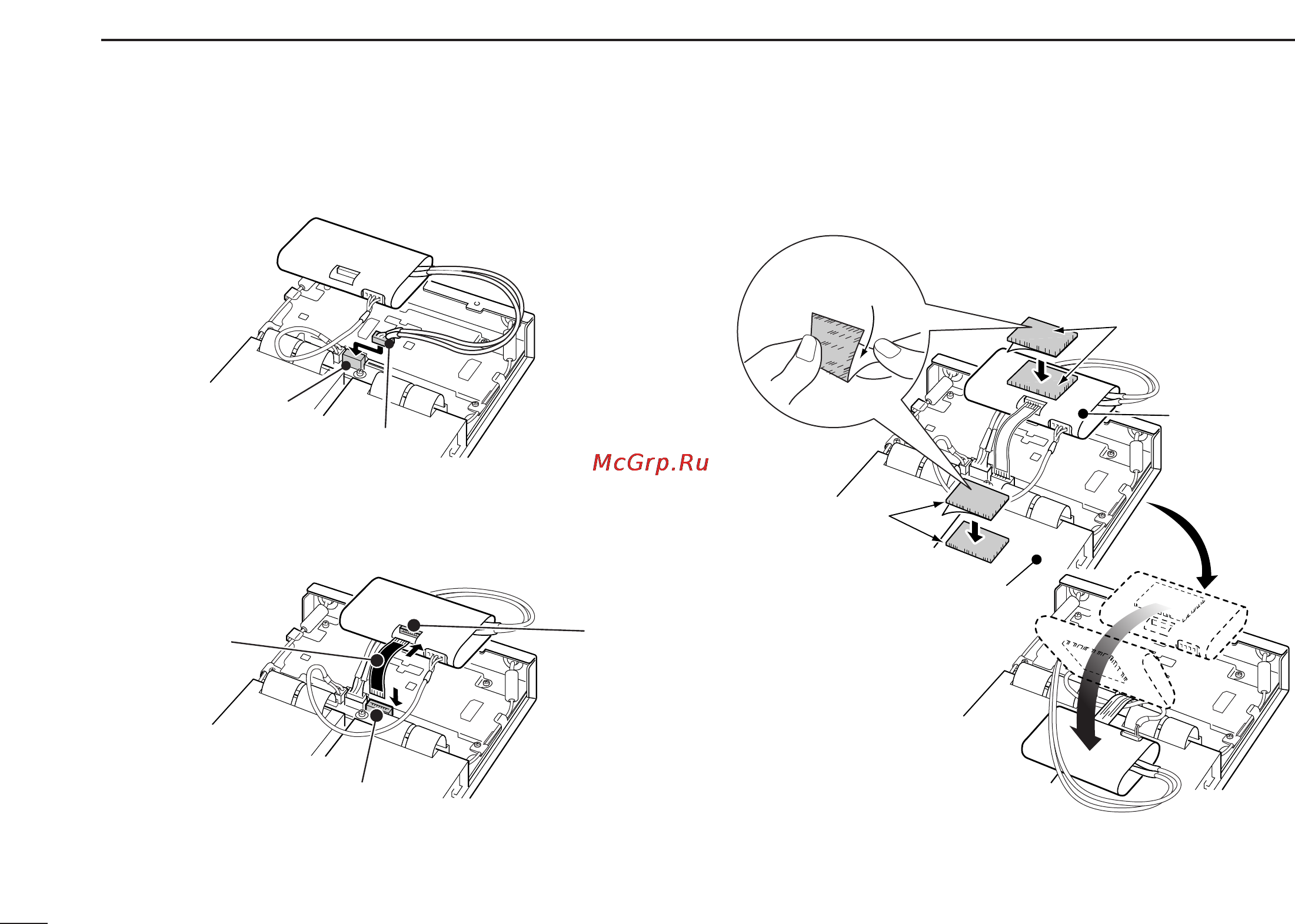

rConnect P1 (4 pin) of the UT-106 to J16 of the LOGIC

board.

tConnect the supplied ﬂat cable between J3 of the UT-106

and J15 of the LOGIC board.

• Be sure not upside down.

yRemove the protective paper from the supplied velcro

then attach it to the UT-106 and the shield case of MAIN

board.

uReplace the top cover, cables and screws to the original

position.

Velcro

is a registered trademark of Velcro Industries B.V.

Velcro

Protective paper

UT-106

MAIN board

J15

Flat cable

J16

UT-106

126

OPTIONAL UNIT INSTALLATION AND OTHER
