50
5
BASIC RECEIVE FUNCTIONS
■ Setting a tuning step
When using the tuning dial to change the frequency, or when
a scan function is activated, the frequency changes in incre-
ments determined by the set tuning step. The tuning step is
adjustable.
The following tuning step are available:
• 1 Hz • 10 Hz • 20 Hz • 50 Hz • 100 Hz
• 500Hz • 1 kHz • 2.5 kHz • 5 kHz • 6.25 kHz
• 8.33 kHz • 9 kHz • 10 kHz • 12.5 kHz • 15 kHz
• 20 kHz • 25 kHz • 30 kHz • 50 kHz • 100 kHz
• 125 kHz • 150 kHz • 200 kHz • 500 kHz • 1 MHz
• 10 MHz • USER*
*When “USER” is selected, the user programmed tuning step (de-
fault: 5 kHz) in “User TS” screen is selected. (p. 51)

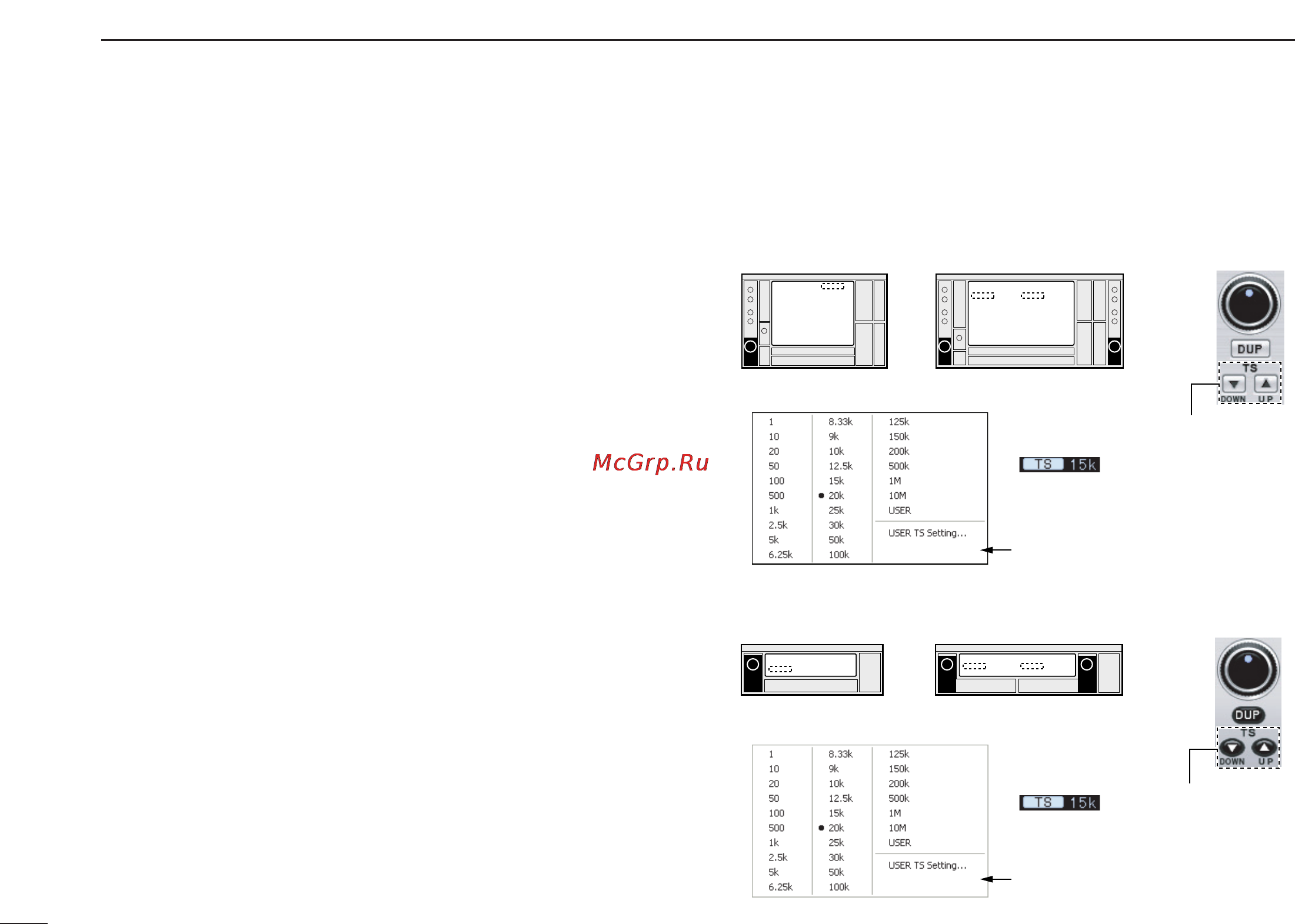

D Tuning step selection
Using [Receiver]/[Compo] screen
➥ Right-click zYx(TS) or zZx(TS) to display a tuning step
list, then select the desired tuning step.
➥ Left-click zYx(TS) or zZx(TS) to set the desired tuning
step in order.
• The selected tuning step is displayed in the function display.
TUNING
MAIN
MAIN
SUB
SUB
• [Compo] screen
• [Receiver] screen
IC-PCR2500IC-PCR1500
IC-PCR2500IC-PCR1500
Tuning step
buttons
Tuning step
inidication
Tuning step
inidication
Tuning step
buttons
Tuning step list
Tuning step list
