USB PORT SETTING

■ USB audio setting

USB audio output function can be turned ON or OFF in [Port

Setting] screen when the IC-PCR1500/PCR2500 power is

OFF.

When the USB audio output function is OFF, the audio/mute

setting for PC, recording function (pgs. 106, 112) are dis-

abled, but the computer running speed will be faster than

when the USB audio output function is ON.

qClick zPowerx icon on the tool bar to disconnect the Main

unit.

w Click zPort Settingx icon on the tool bar to call up the [Port

Setting] screen.

e Check the [USB Audio Enable] check box to turn the USB

audio output function ON.

r Click zOKx.

IC-PCR2500IC-PCR1500

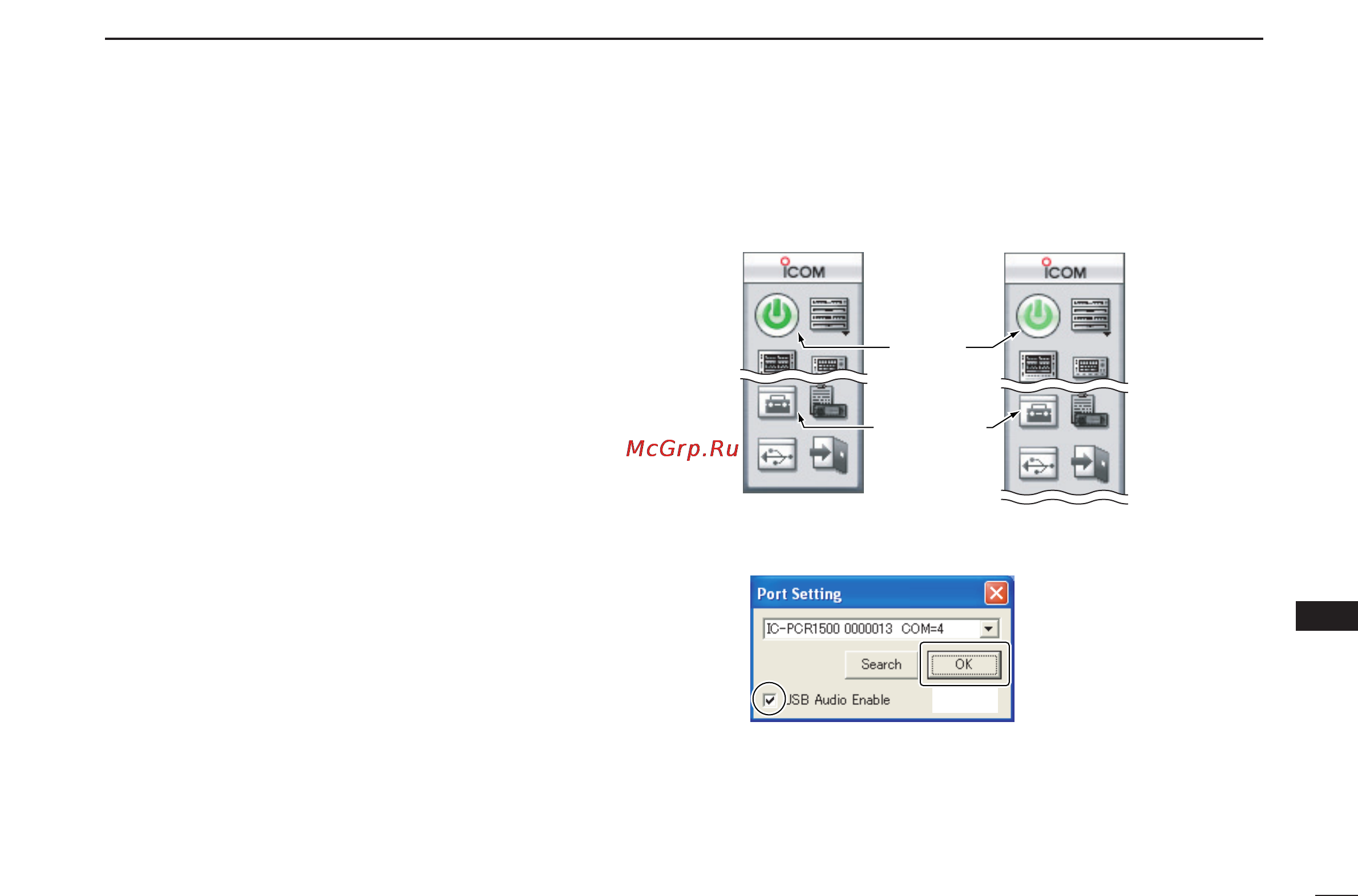

• [Port setting] screen

zPowerx

zPort Settingx

q Click

w Click
