DRIVER INSTALLATION

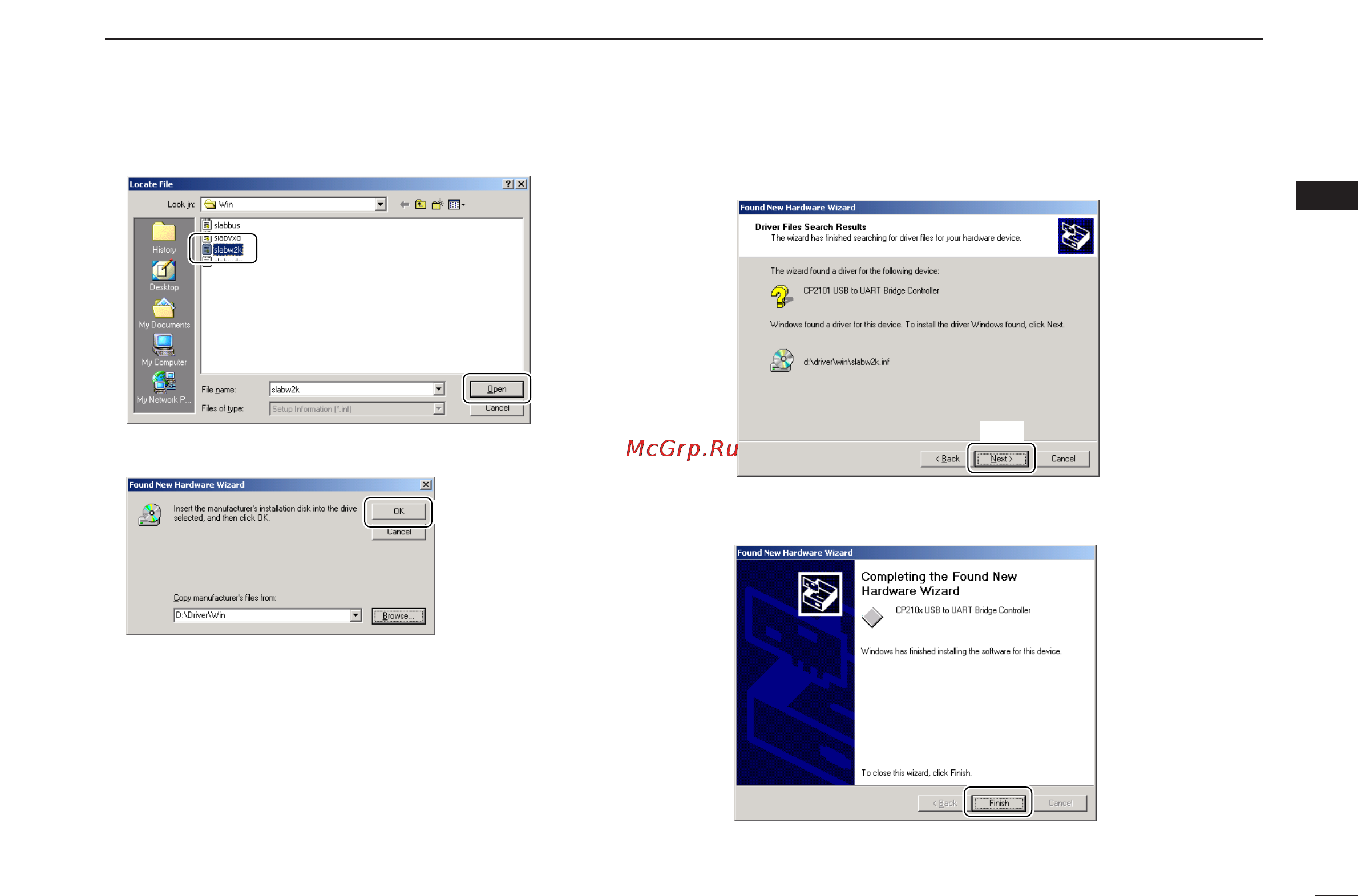

@3Select “Slabw2k” in the “Win” folder, then click [Open].

@4Click [OK].

@5When the driver is found, the following dialog is displayed.

Click [Next>] to start the installation.

@6After the installation is completed, click [Finish].

@7Eject the CD.

• Restarting the PC is recommended.
