MEMORY CHANNELS
■
Memory channel programming
100 memory channels can be assigned to a memory bank.
There are 26 memory banks. Any of the following information
can be stored.
• Bank name, memory name, frequency, duplex direction, offset fre-
quency, mode, filter, attenuator, tuning step, select memory scan,
skip channel, squelch control setting and remark.

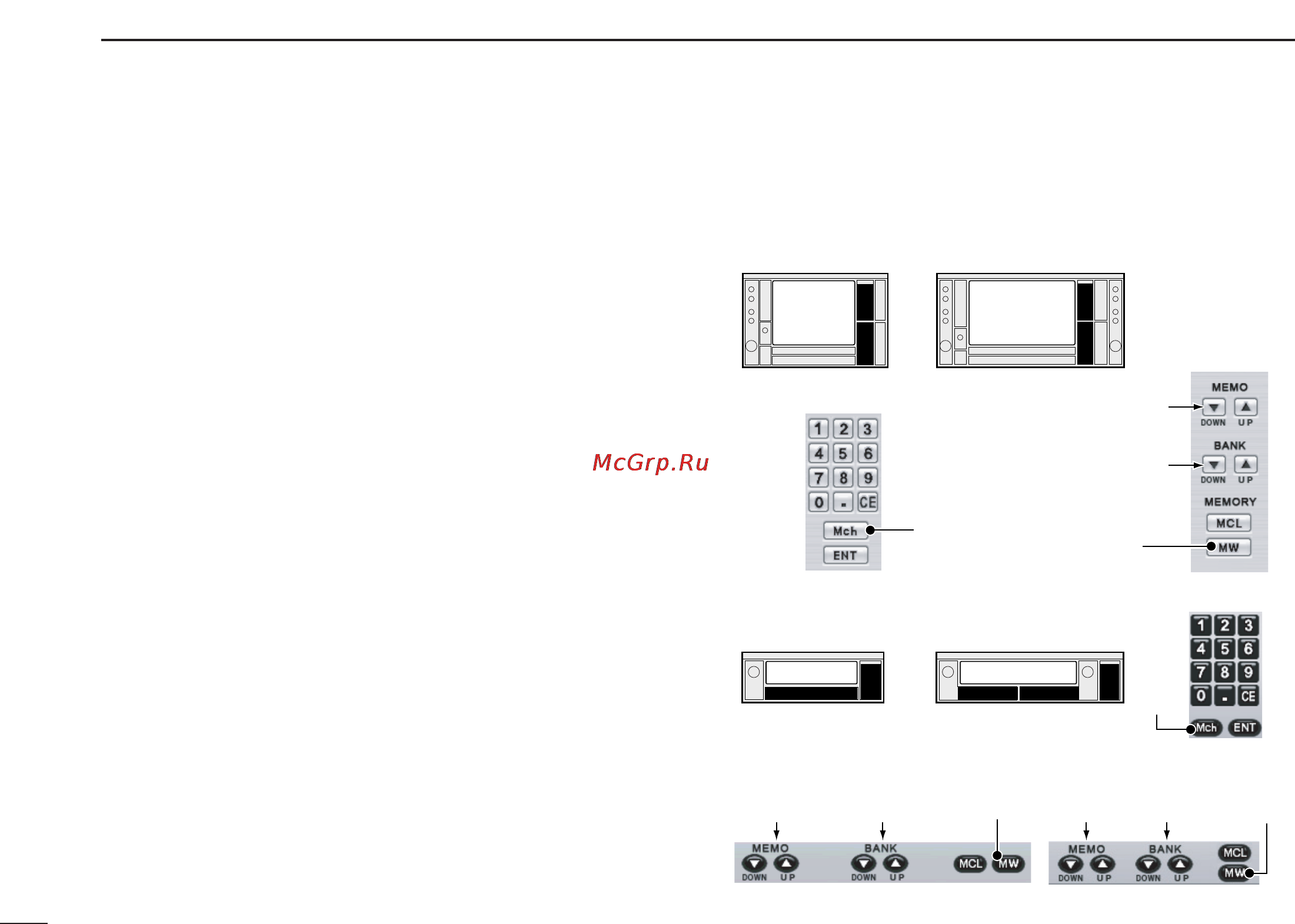

D Programming from the receiver screen
• Using [Receiver]/[Compo] screen
q Click zYx(BANK) or zZx(BANK) to select a memory bank
to be programmed.
w Click zYx(MEMO) or zZx(MEMO), or use the 10-keypad
to input the desired memory channel number, then click
zMchx to select a memory channel to be programmed.
e Set a frequency, mode, etc. that you want to memorize.
r Click zMWx for 1 sec. to program the setting information
into the selected memory channel.
