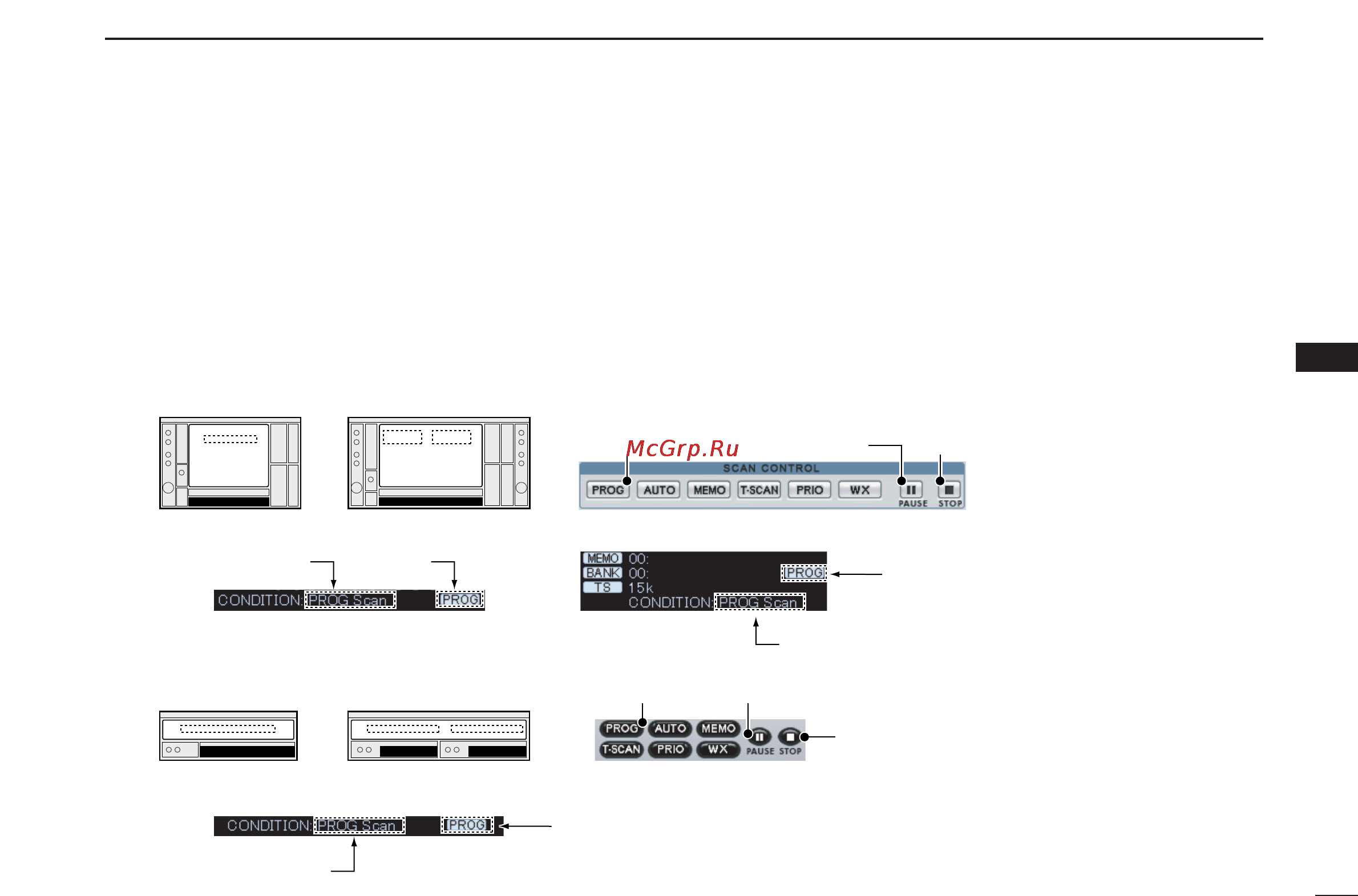

SCAN OPERATION (Multi-function receiver/Component screens only)

METER/SCAN

Active band only

MAIN SUB

• [Compo] screen

• [Receiver] screen

IC-PCR2500IC-PCR1500

zSTOPx

zPROGx

zPROGx zPAUSEx

zPAUSEx

zSTOPx

Appears

IC-PCR1500 IC-PCR2500

Appears

Blinks

tClick the zPROGx button to start programmed scan.

• “PROG Scan” blinks and [PROG] appears while scanning.

yTo stop the scan, click zSTOPx or zPROGx.

• When the frequency is changed after cancelling a scan and a

new scan is activated, scanning starts from the starting frequency

of the specified frequency range. When the frequency is not

changed, scan starts from the previously stopped frequency.
