Инструкция по эксплуатации Страница: 50

Icom IC-PCR2500 [50/148] Main unit

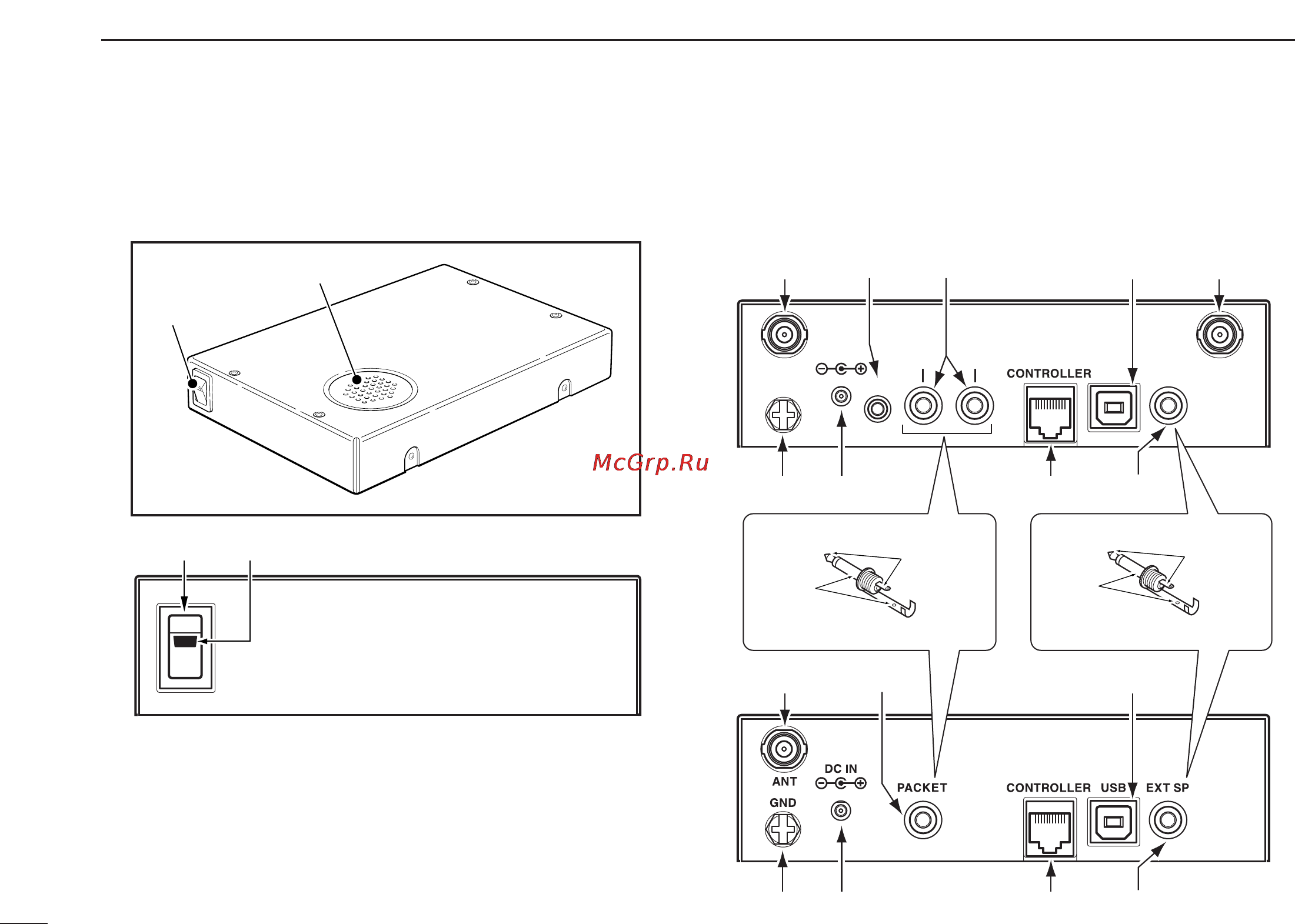

D Front panel

zPOWER SWITCH [POWER]

Turn the Main unit power ON and OFF.

xPOWER INDICATOR

Lights green when the Main unit is turned ON.

Front

Rear

Top

Power switch

Speaker

PANEL DESCRIPTION

D Rear panel

Rear

IC-PCR2500

Rear

IC-PCR1500

DATA

PACKET 1

USB EXT SP

ANT 1 ANT 2

DC IN

GND

PACKET 2

q qwe

tiu y

2-conductor 3.5 (d) mm (

⁄8˝)/100 kΩ

PACKET jack connection

2-conductor 3.5 (d) mm (

⁄8˝)/8 Ω

EXT SP jack connection

AUDIO

GND

AUDIO

GND
