113
11
OTHER FUNCTIONS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
D Stereo Recording (IC-PCR2500 only)
You can record the receiving signal as stereo sound. The
Main and Sub bands must be set to the same frequency.
D Playing the recording data
You can play back the recorded signal with the installed
media player (e.g. Windows Media
®
Player, etc.) in the PC.
Please refer to the media player’s instruction manual for de-
tails.

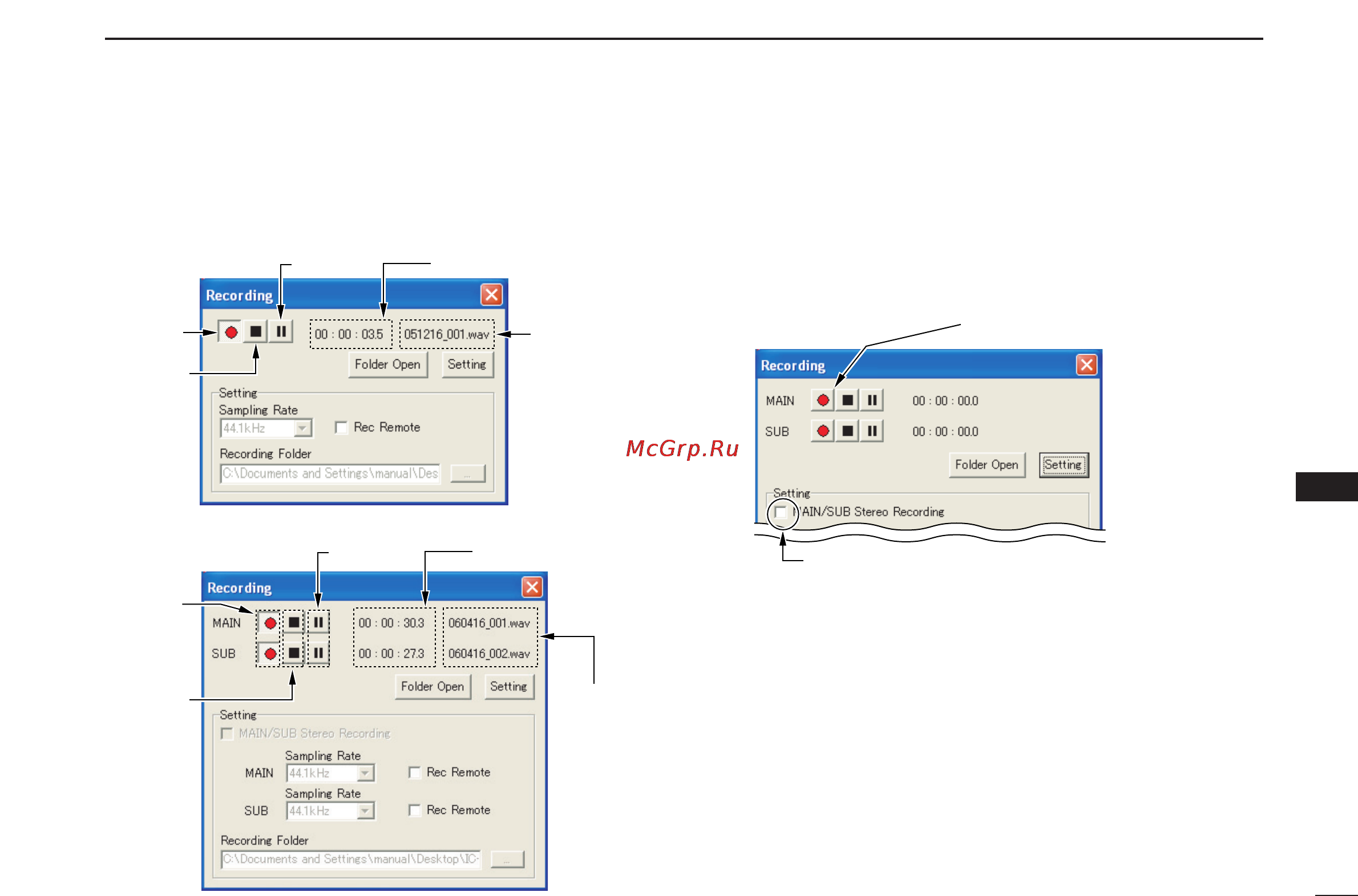

• [Recording] screen
IC-PCR2500
q
Check the box to turn the stereo
recoding function ON.
w
Click the zRECx button.
(Only Main side is enabled.)
File name
Recording counter
(While recording)
• [Recording] screen
IC-PCR1500
IC-PCR2500
zRECx
zSTOPx
zPAUSEx
File name
Recording counter
zRECx
zSTOPx
zPAUSEx
