68
MEMORY CHANNELS
6
■ General
The receiver has 2600 memory channels for storage of often-
used frequencies. There are total of 26 memory banks for
usage by group, etc., and up to 100 channels can be as-
signed to a bank.
D Memory channel contents
The following information can be programmed into memory
channels:
• Memory channel name (p. 73)
• Sub name (p. 73)
• Operating frequency (p. 48)
• Duplex direction (p. 57)
• Offset frequency (p. 57)
• Receive mode (p. 54)
• IF filter selection (p. 58)
•Attenuator ON/OFF (p. 59)
•Tuning step (p. 50)
• Select memory scan setting (p. 88)
• Memory skip scan setting (p. 88)
• Squelch control system ON/OFF and its frequency or
code (p. 94, 120, 122)
• Remark (memory channel comment) (p. 73)
■ Memory channel selection
D Selecting with the control screen
• Using
zYx
/
z
ZZ
x
buttons
q Click zYx(BANK) or zZx(BANK) to select the desired
memory bank.
w Click zYx(MEMO) or zZx(MEMO) to select the desired
memory channel.

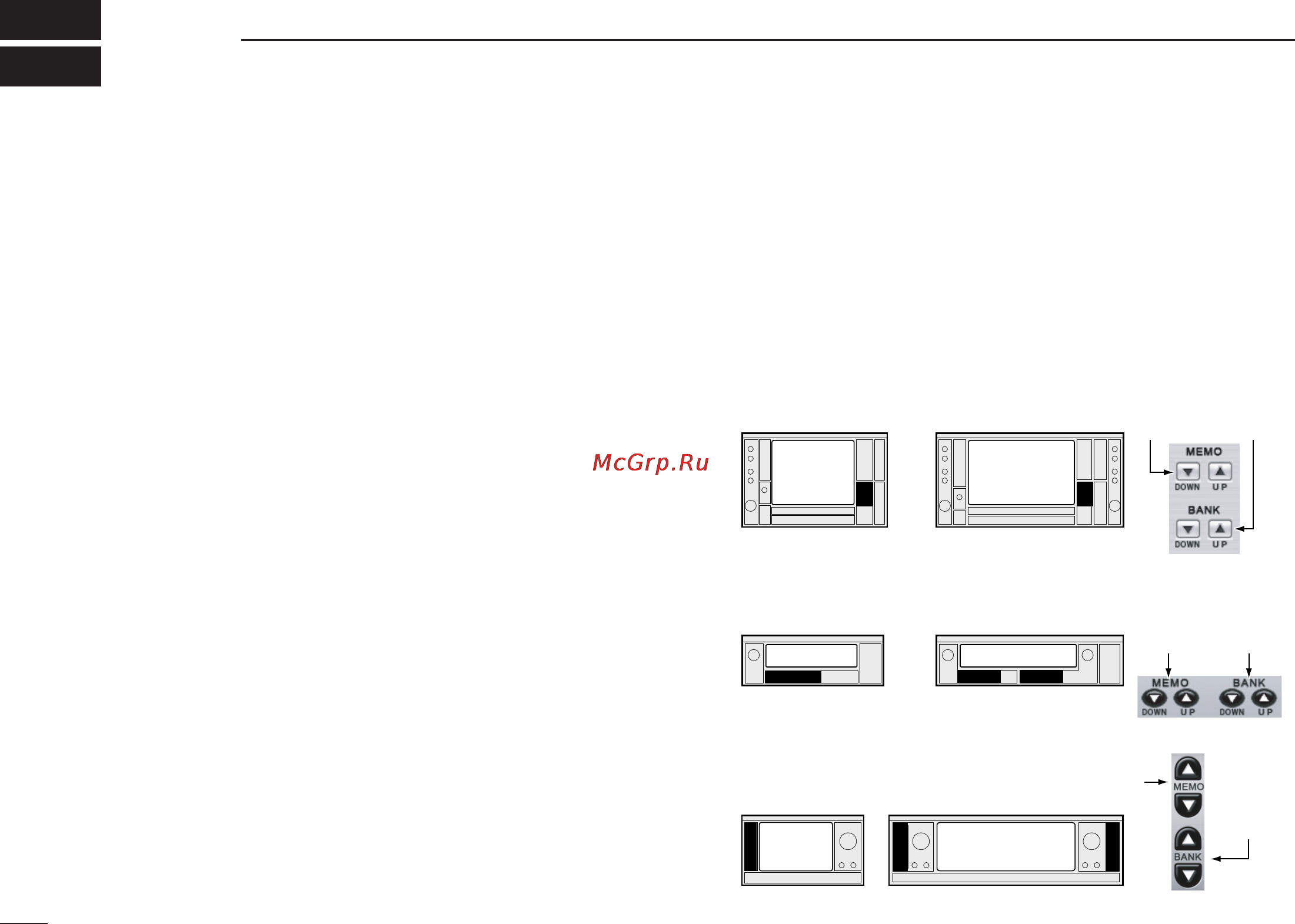

TUNING PANEL
Active band only
MAIN SUB
MAIN SUB
• [Compo] screen
• [Receiver] screen
IC-PCR2500IC-PCR1500
IC-PCR2500IC-PCR1500
• [Simple] screen
IC-PCR2500IC-PCR1500
BANK
zYx/zZx
BANK
zYx/zZx
MEMO
zYx/zZx
MEMO
zYx/zZx
MEMO
zYx/zZx
BANK
zYx/zZx
