■ Recording operation
The receiver has a recorder function that enables you to
record a signal. The recording data can be saved into the PC.
D Recording a receiving signal
q Receive a signal. (p. 47)
w Click the zRecordingx icon on the tool bar to call up the
[Recording] screen if it is not displayed.
eClick zSettingx to display the setting menu.
rClick [...], then select the desired folder in which the record-
ing data is saved.
After the folder selection, click [OK].
tClick the recording start button (z●x) to start recording the
receiving signal.
• IC-PCR2500 can record the receiving signal for Main band or
Sub band independently.
• While recording, the recording counter and a file name are dis-
played.
• Click [❙❙] to pause a recording. Repeat to resume recording.
• The recording data is saved in WAVE format.
yClick the recording stop button (z‘x) to stop recording.
q Click
q Click
w Click
w Click
e Select
r Click

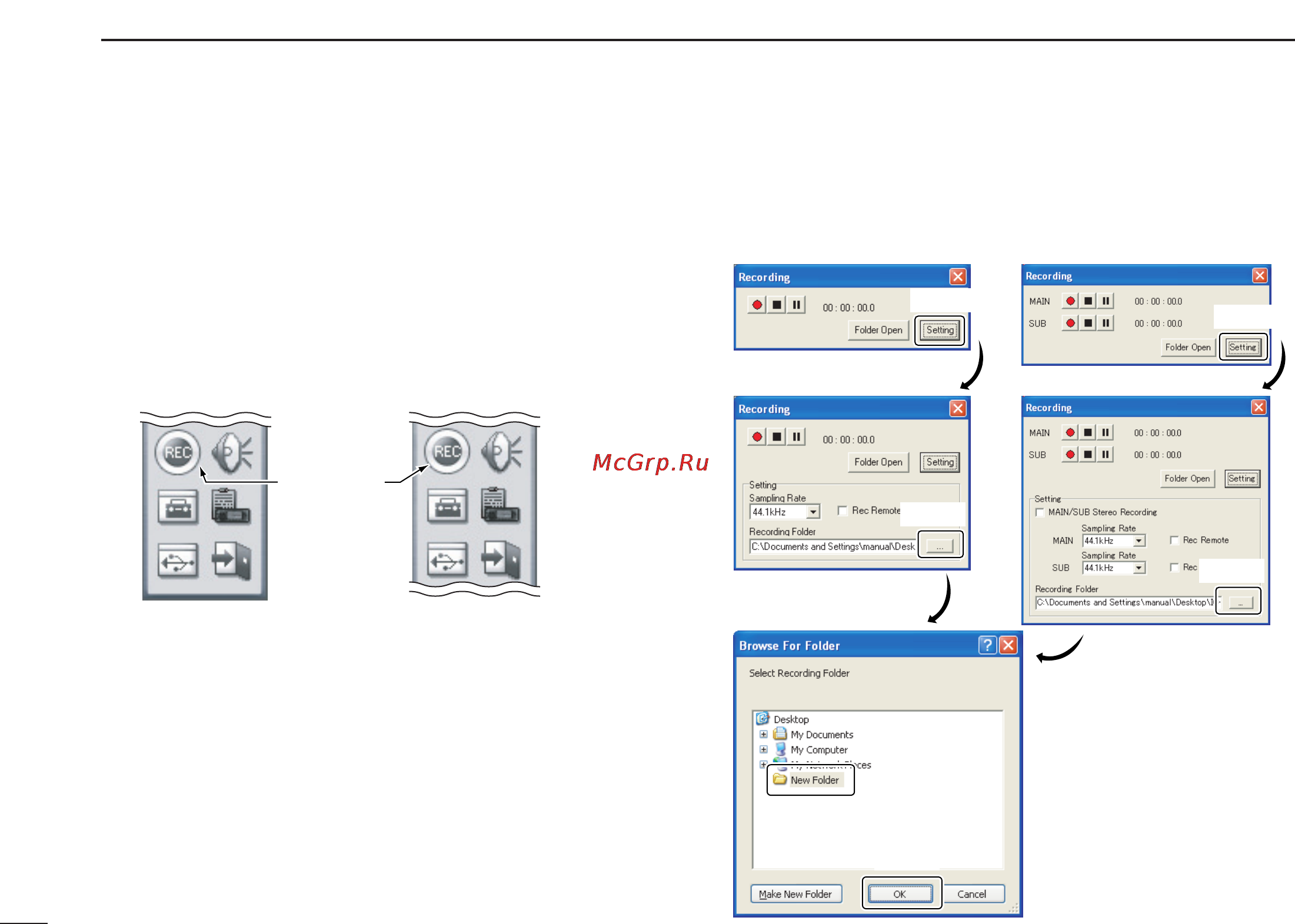

• [Recording] screen
IC-PCR1500
IC-PCR2500
zRecordingx
IC-PCR2500IC-PCR1500
