DIGITAL MODE OPERATION (IC-PCR2500 Main band only)

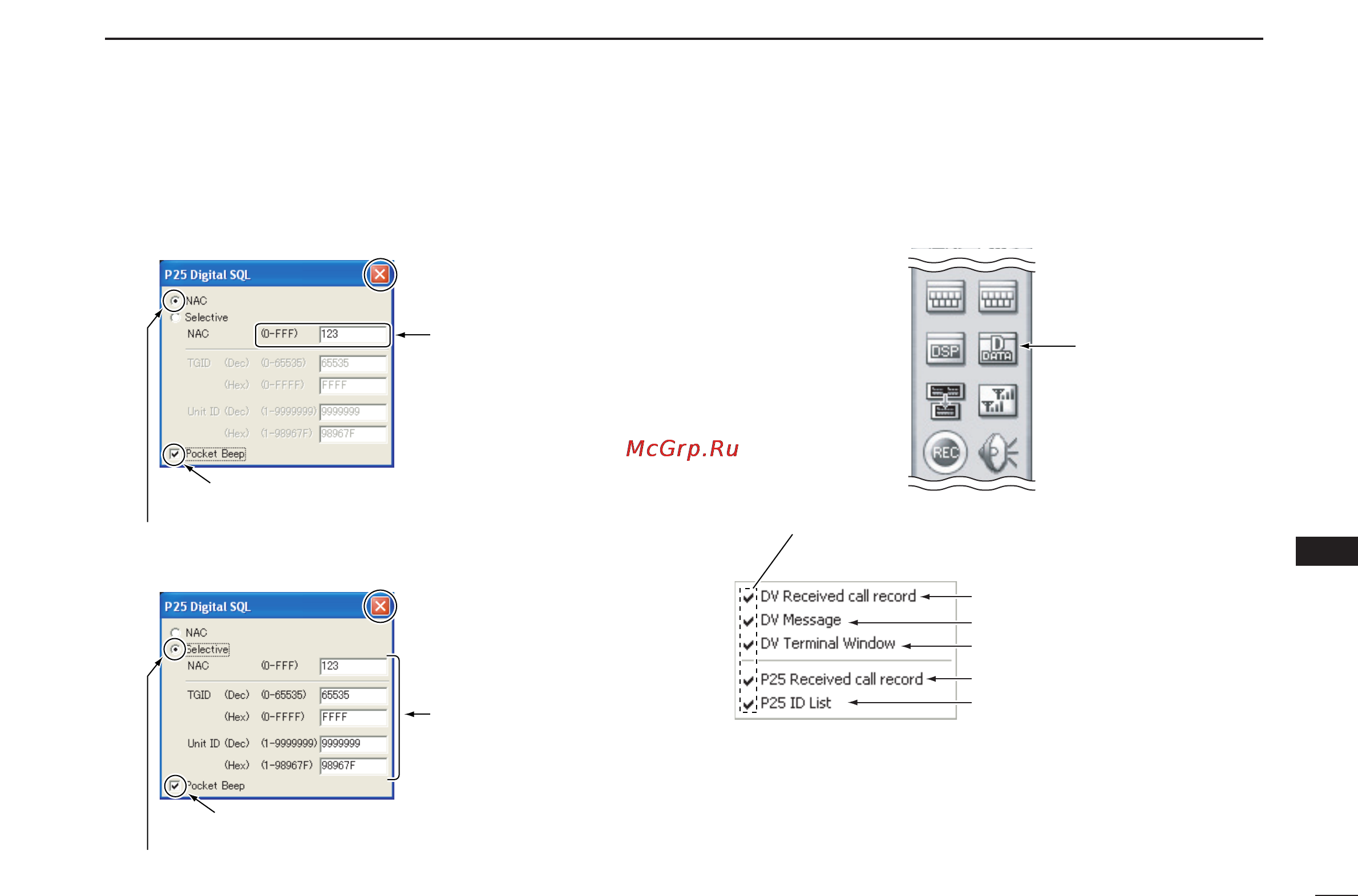

■ Digital menu indication

Click the zDigitalx icon on the tool bar to display the DV digital

menu and/or P25 digital menu.

zDigitalx

Check mark “✔” indicates that

the each screen is displayed.

P25 Record call record screen

DV Terminal Window screen

DV Message screen

DV Received call record screen

P25 Record call record screen

• [P25 Digital SQL] screen

NAC squelch

r Click

Selective squelch

r Click

Click to select the squelch type.

Enter the digital code.

Check the check box to

turn the [Pocket Beep] ON.

Check the check box to

turn the [Pocket Beep] ON.
