OTHER FUNCTIONS

■ Sampling Rate setting

Sampling Rate setting is expressed in samples per second,

and determines the sound quality.

Although a higher sampling rate provides a better quality

sound than a lower sampling rate, the file size becomes

larger.

q Receive a signal. (p. 47)

w Click zRecordingx icon on the tool bar to call up the

[Recording] screen if it is not displayed.

e Click zSettingx to display the setting menu.

r Click [Z] in [Sampling Rate], then select the desired rate

from the displayed menu.

• The higher rate setting enables High-quality sound.

w Click

e Select

q Click

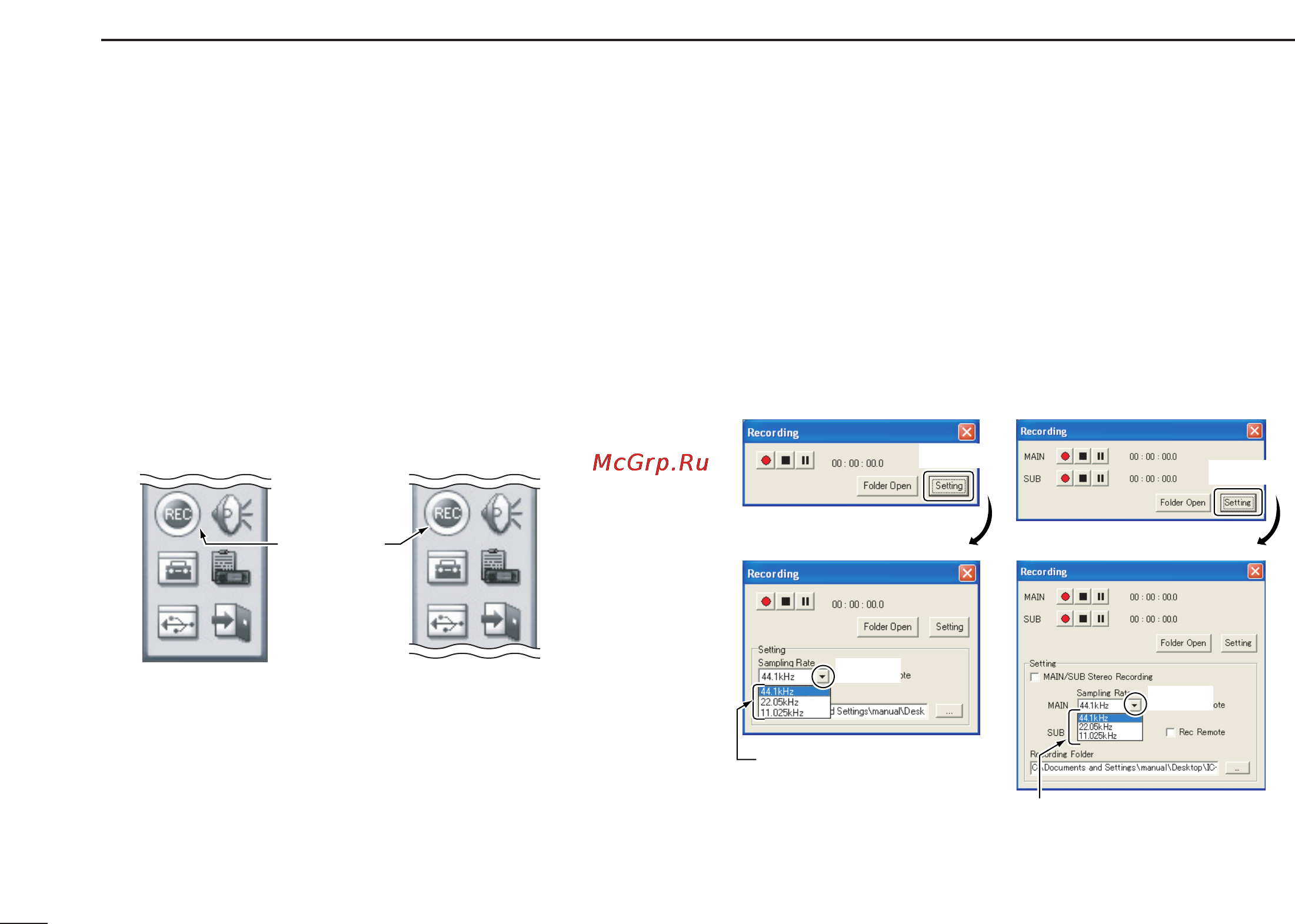

• [Recording] screen

IC-PCR1500

IC-PCR2500

zRecordingx

IC-PCR2500IC-PCR1500
