63
5
BASIC RECEIVE FUNCTIONS
5

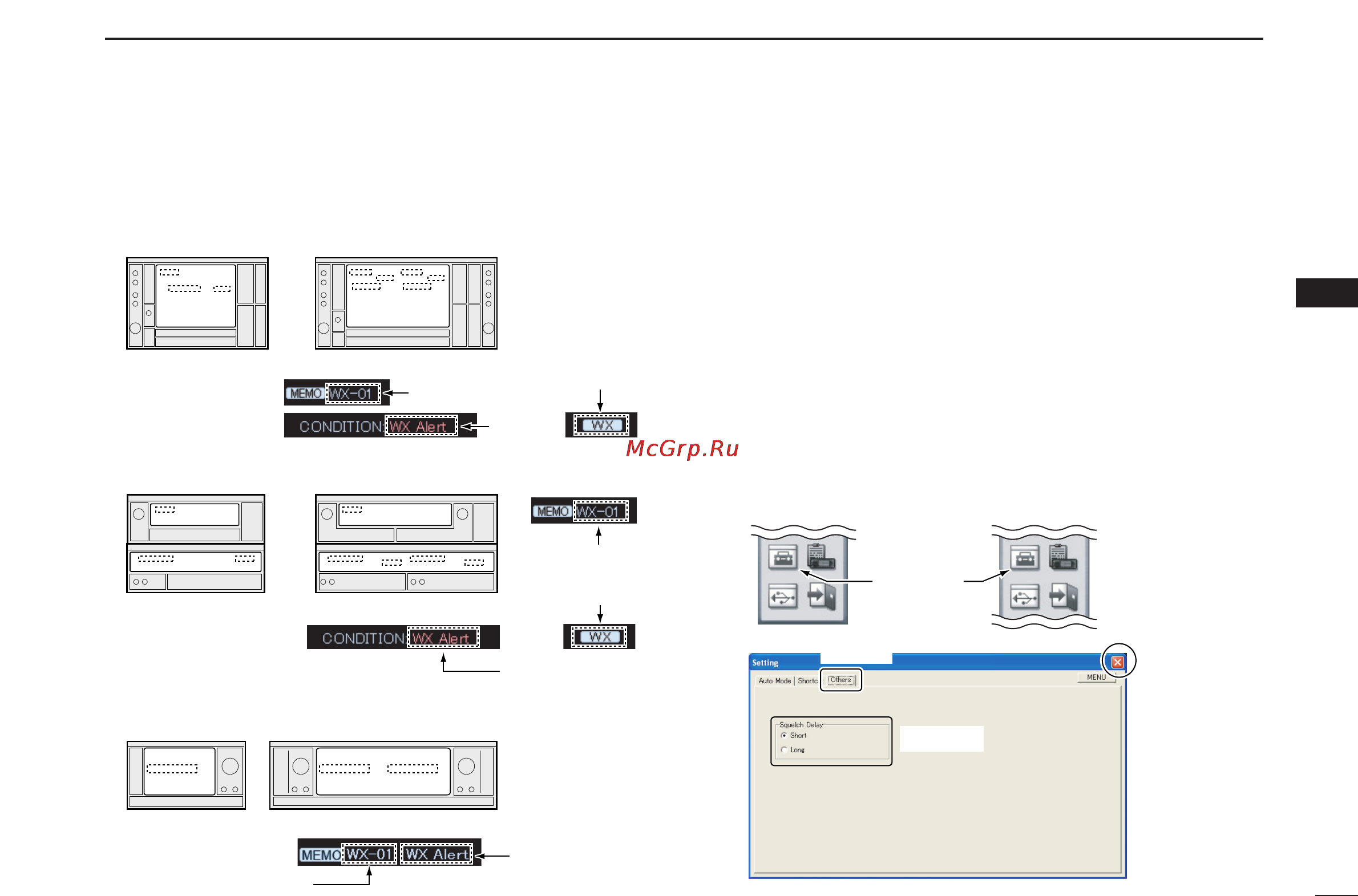

■ Squelch delay setting
Select squelch delay from short and long to prevent repeated
opening and closing of the squelch during reception of the
same signal.
•Short : Short squelch delay.
• Long : Long squelch delay.
q Click the zSettingx icon on the tool bar to call up the [Set-
ting] screen if it is not displayed.
w Click the zOthersx tab to display the squelch delay setting.
e Click the zShortx or zLongx radio button to set the squelch
delay.
rClick the close button ([X]) to close the [Setting] list screen.
IC-PCR2500
IC-PCR1500
e Click
q Click
w Select
zSettingx
TUNING PANEL
METER/SCAN
PANEL
MAIN SUB
MAIN SUB
MAIN SUB
• [Compo] screen
• [Receiver] screen
IC-PCR2500IC-PCR1500
IC-PCR2500IC-PCR1500
• [Simple] screen
IC-PCR2500IC-PCR1500
Blinks
Blinks
Appears
Appears
Blinks
Appears
Appears
Appears
