APPLICATION INSTALLATION

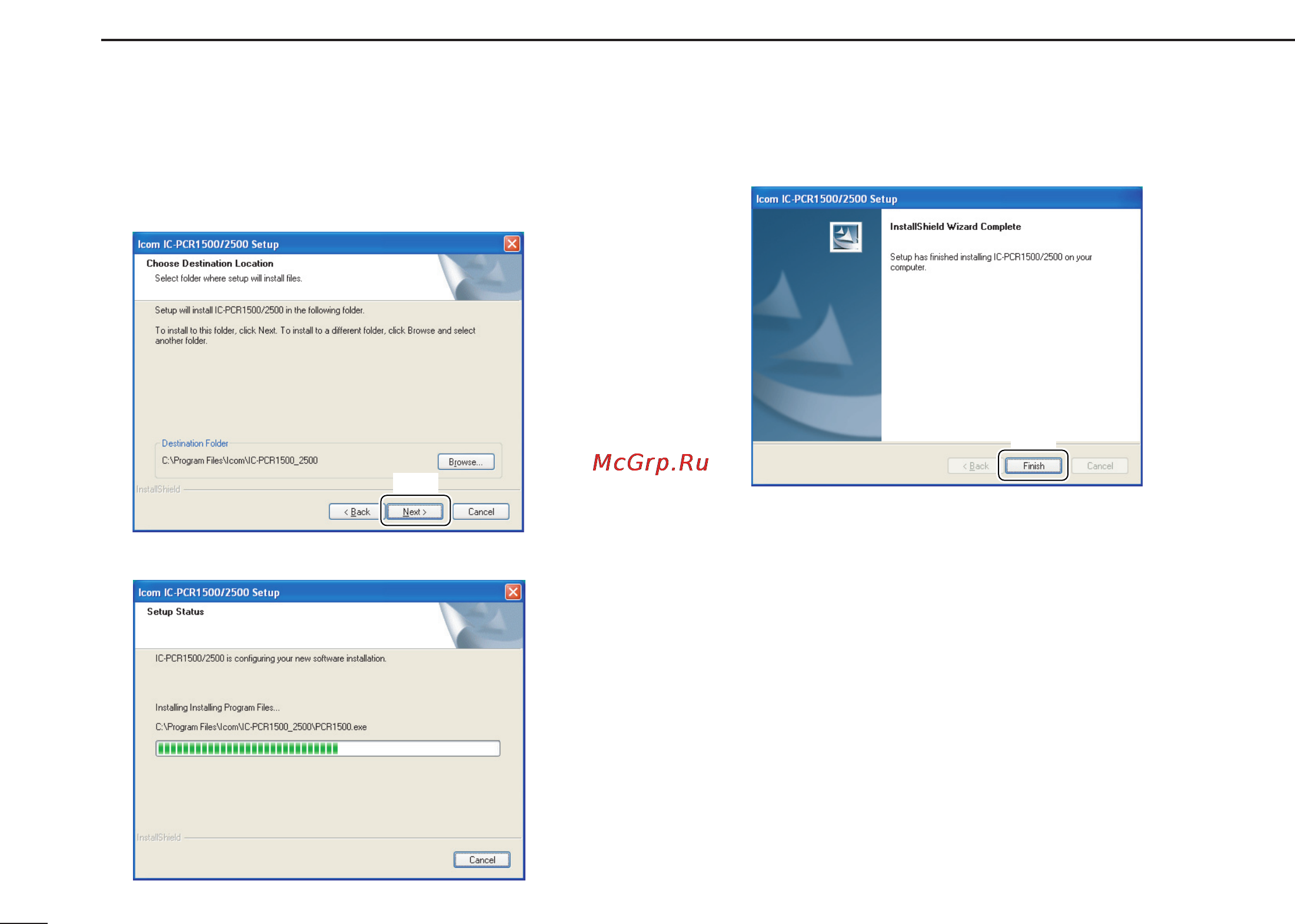

uConﬁrm the location, then click [Next>] to start the installation.

• Click [Browse...] then type the desired location if you specifying

the installation location.

• The installation starts.

iAfter the installation is completed, click [Finish].

oEject the CD.

• The IC-PCR1500_2500 shortcut icon is created on the desktop.

• Restarting the PC is recommended.
