CLONING OPERATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

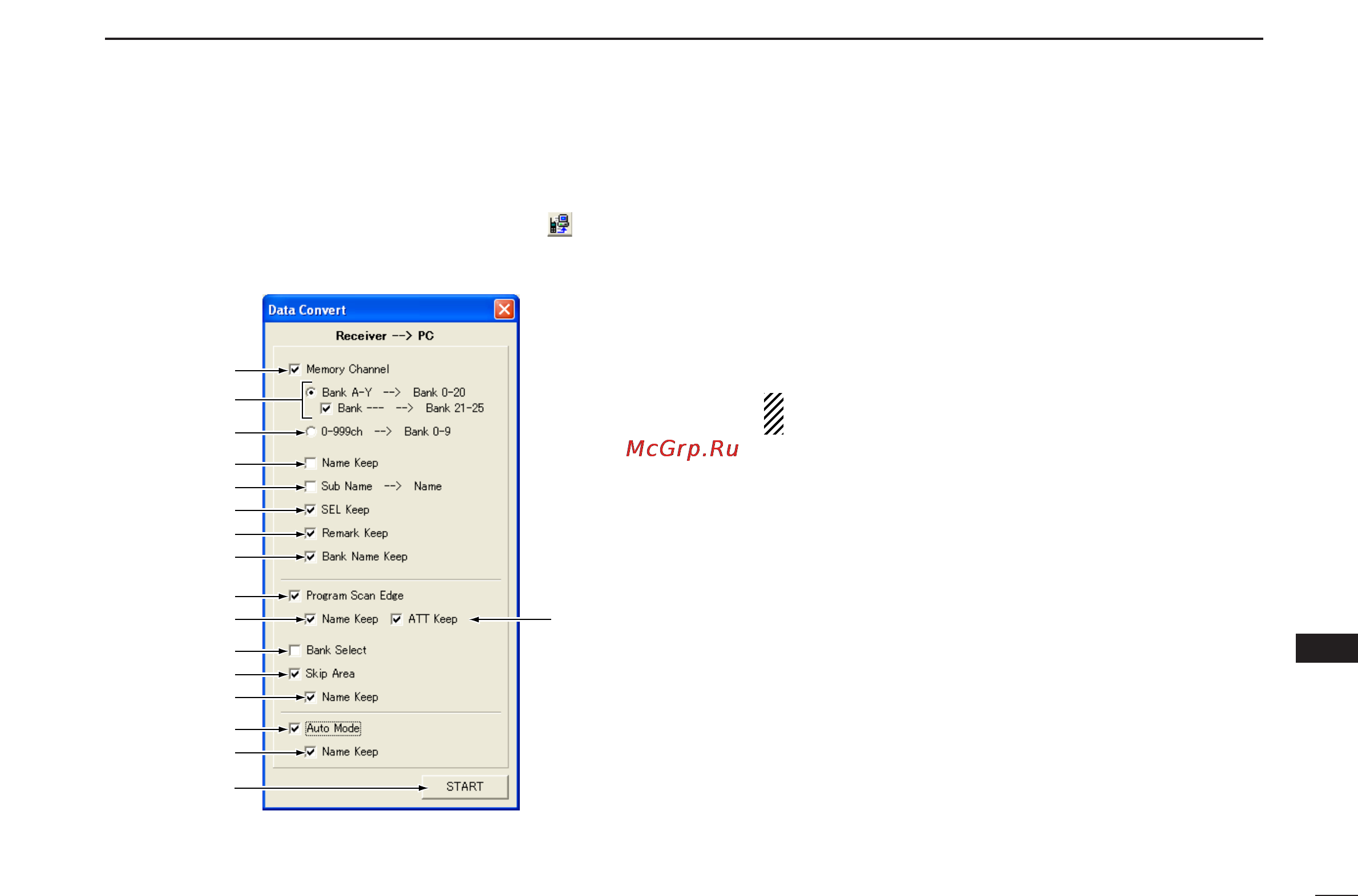

q Click [Convert] in the [Option] menu to display the convert
menu. Then select [Receiver -> PC] (or click “ ”.)
w Set the option items (A to P), click [START] to start convert-
ing.
A Check the check box to convert the controller operation’s
memory channel data to the PC operation’s data.
B ➥ Check the radio button to convert the controller opera-
tion’s Bank A to Y data to the Bank 0 to 20 in the PC op-
eration.
➥ Check the check box to convert the controller opera-
tion’s no Bank setting channels data to the Bank 21 to
25 in the PC operation.
NOTE: More than 500 no Bank setting memory
channels cannot be converted.
C Check the radio button to convert the controller operation’s
channels 0 to 999 data to the Bank 0 to 9 in the PC opera-
tion.
D Check the check box to keep the PC operation’s [Name]
settings.
• If it is not checked, the [Name] settings will be blanked after con-
verting.
• The controller operation’s memory name is converted to the [Sub
Name] settings in the PC operation.
E Check the check box to convert the PC operation’s [Sub
Name] settings to the [Name] settings.
F Check the check box to keep the PC operation’s [SEL] set-
tings.
• If it is not checked, the [SEL] settings will be blanked after con-
verting.
G Check the check box to keep the PC operation’s [Remark]
settings.
• If it is not checked, the [Remark] settings will be blanked after
converting.
O
M
L
I
A
D
E
F
G
H
J
N
P
C
Q
K
B
D Converting the controller operation’s data to the PC operation’s data
