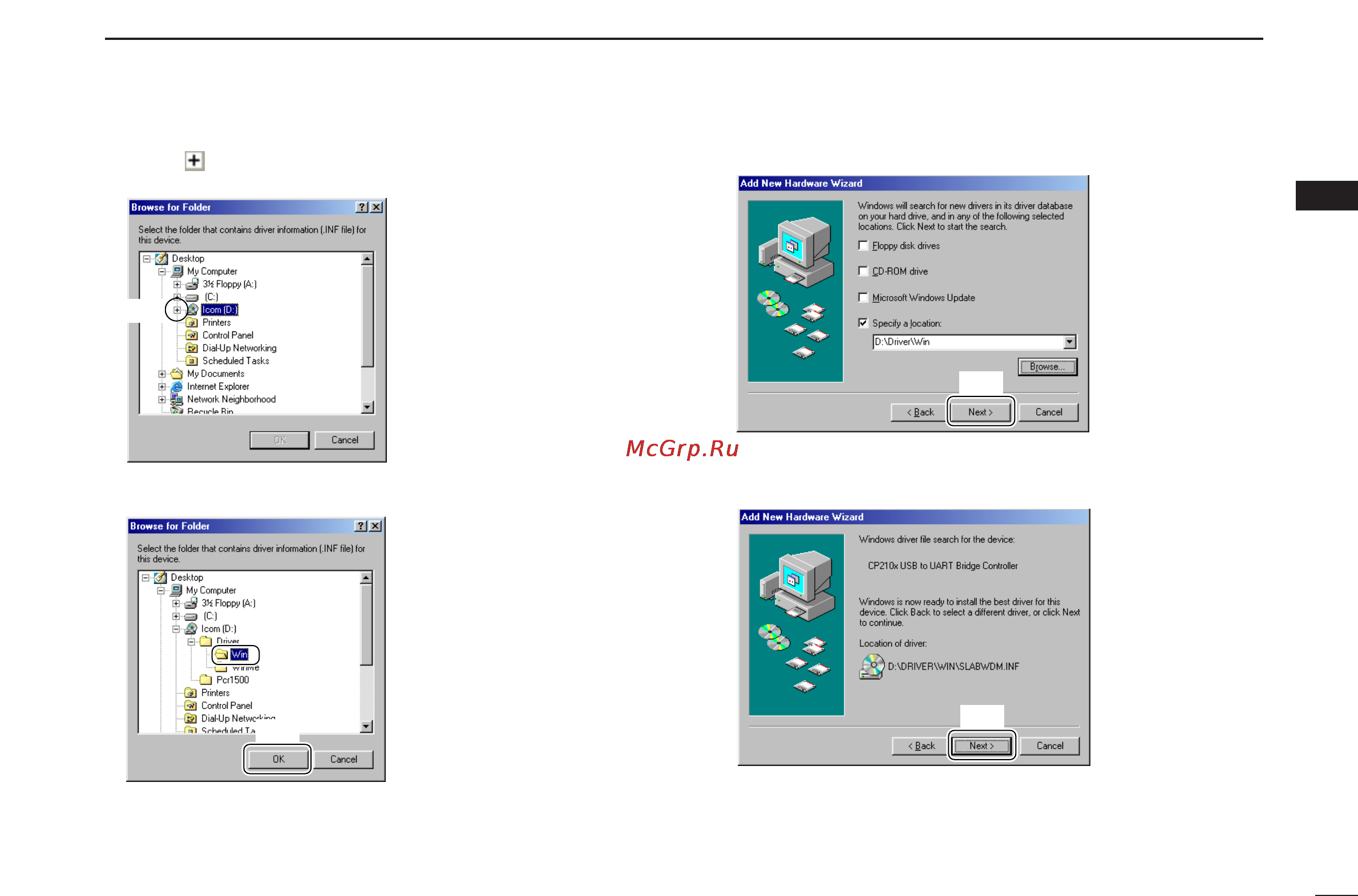

DRIVER INSTALLATION

!6Click “ ” of the CD drive folder in “My Computer.”

• The CD drive folder name (e.g. “D”) is depending on a PC.

!7Select “Win” in the “Driver” folder, click [OK].

!8Click [Next>].

!9When the driver is found, the following dialog is displayed.

Click [Next>] to start the installation.

Click

Select

Click
