56
5
BASIC RECEIVE FUNCTIONS
■ Monitor function
This function is used to listen to weak signals without disturb-
ing the squelch setting or to open the squelch manually even
when mute functions such as the tone squelch are in use.
Click zMONIx to monitor the operating frequency.
• “MONI” appears when [Receiver]/[Compo] screen is displayed.
• “MONI” button lights green when [Simple] screen is displayed.
■ Mute function
This function is used to mute the received audio signal.
Click zMUTEx to temporarily mute audio output.
• “MUTE” appears when [Receiver]/[Compo] screen is displayed.
• “MUTE” button lights green when [Simple] screen is displayed.
MODE/VOL PANEL
MAIN
MAIN
SUB
SUB
MAIN SUB
zMONIx
zMUTEx
zMONIx
zMONIx
zMUTEx
zMUTEx

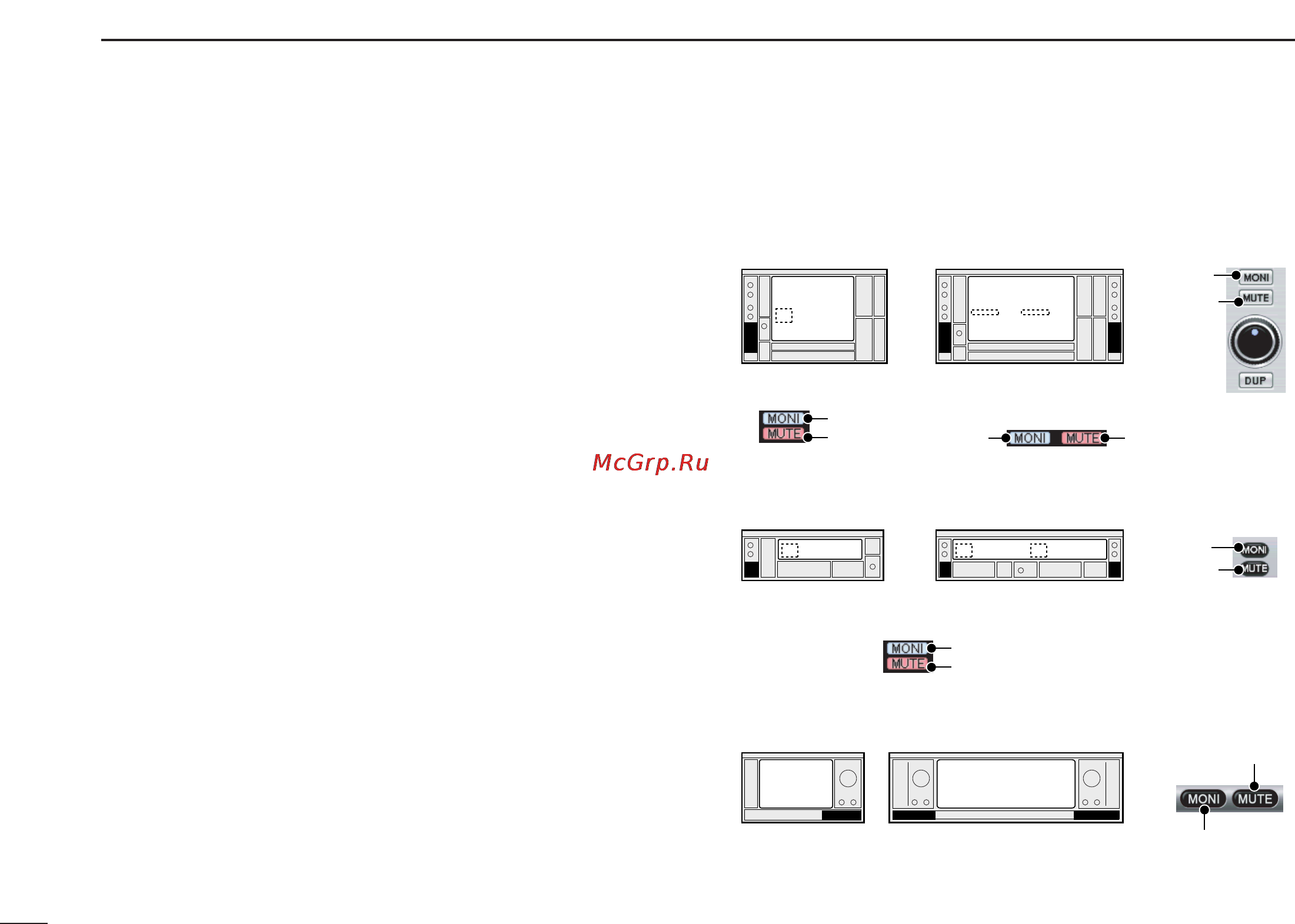

• [Compo] screen
• [Receiver] screen
IC-PCR2500IC-PCR1500
IC-PCR2500IC-PCR1500
• [Simple] screen
IC-PCR2500IC-PCR1500
MUTEMONI
MONI
MUTE
Indicators
Indicators
MONI
MUTE
Indicators
