22
ENGLISH

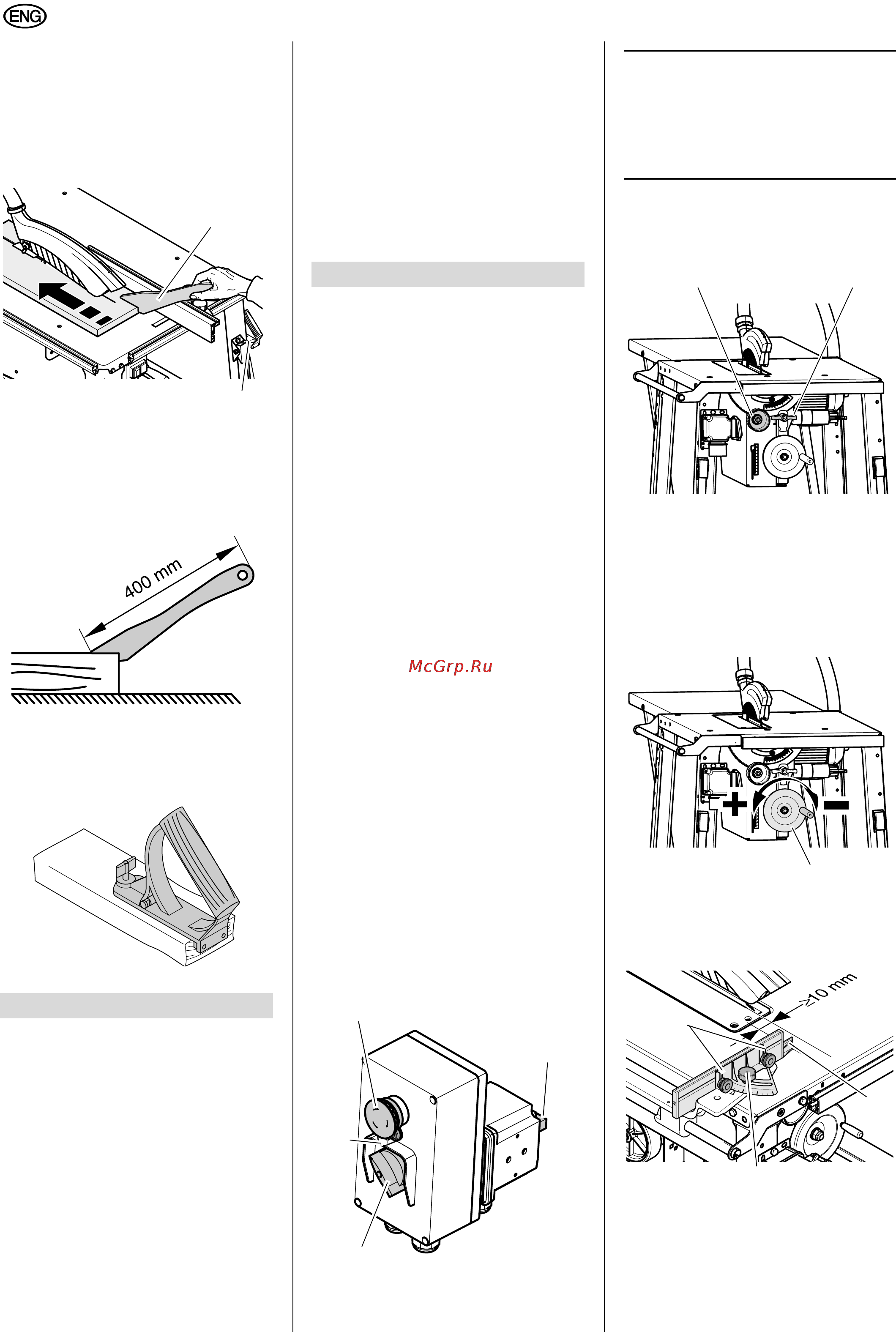

Push stick
The push stick (46) serves as an exten-
sion of the hand and protects against
accidental contact with the saw blade.
Always use the push stick if the distance
between saw blade and rip fence is less
than 120 mm.
Guide the push stick at an angle of 20°
… 30° against the saw table's surface.
When the push stick is not used, it can
be hung to the holder (47) provided.
Replace the push stick if damaged.
Handle for push block
To be affixed to a suitable board. For the
safe guiding of small stock.
− Steplessly adjustable bevel tilt from
0° to 47°.
− Stepless depth of cut setting to
85 mm.
− An undervoltage relay prevents the
machine from starting up when
power is restored after a power fail-
ure.
− Mitre fence with adjustable fence
extrusion.
− All operating elements are located
at the machine's front.
− Table extension for variable use is
standard delivery:
− firmly attached to the machine
stand, or
− only hooked into the machine
stand for convenient folding away
without the need for using tools.
− Robust sheet steel construction –
high load-bearing capacity and per-
manently protected against corro-
sion.
− Steplessly adjustable rip fence.
Main switch
• To turn power supply ON = set
rotary switch (49) to position “I”.
• To turn power supply OFF = set
rotary switch (49) to position “O”.
ON/OFF switch
• To turn machine ON = set rotary
switch (50) to position “I”.
• To turn machine OFF = set rotary
switch (50) to position “O”.
Emergency-stop button
• To turn the machine OFF in case of
emergency = press the E-STOP but-
ton (48).
• To make machine operational again
after actuating the E-STOP button =
turn E-STOP button (48) in direction
of arrow. The E-STOP button will be
released from the locked E-Stop
position and returned to the normal
operating position.
Protection against overheating
The overload protection prevents the
overheating of the motor under perma-
nent load. The motor is then turned off
and the reset pin (51) pops out.
1. Set the ON/OFF switch to position
“O” if the machine is turned OFF by
the overload protection.
2. Push the reset pin (51) back in to
reset the overload protection.
3. Wait for the motor to cool down
before restarting the machine.
3
Note:
In the event of a power failure an
undervoltage relay will be tripped to pre-
vent the starting of the machine when
the power is restored. To restart the
machine turn the switch ON again.
Setting device for saw blade tilt
With the handwheel (52) the saw blade
is steplessly tilted from 0° to 47°.
To keep the set angle of inclination from
changing when sawing, it is locked by
means of of the wingnut (53) at the front
of the chipcase.
Crank for cutting height adjustment
The cutting height is adjusted by turning
the crank (54).
Fence
The saw is equipped with two fences:
− Mitre fence (for cross/mitre cuts):
For use as mitre fence the short
fence extrusion must be installed.
The mitre fence is mounted on a
guide bar, which is fastened to the
left-hand side of the saw table.
− Star-knob screw (56) for mitre
setting. The setting range is 45°.
5. Special product features
46
47
6. Operational controls
48
49
50
51
52 53
54
55
56
57
