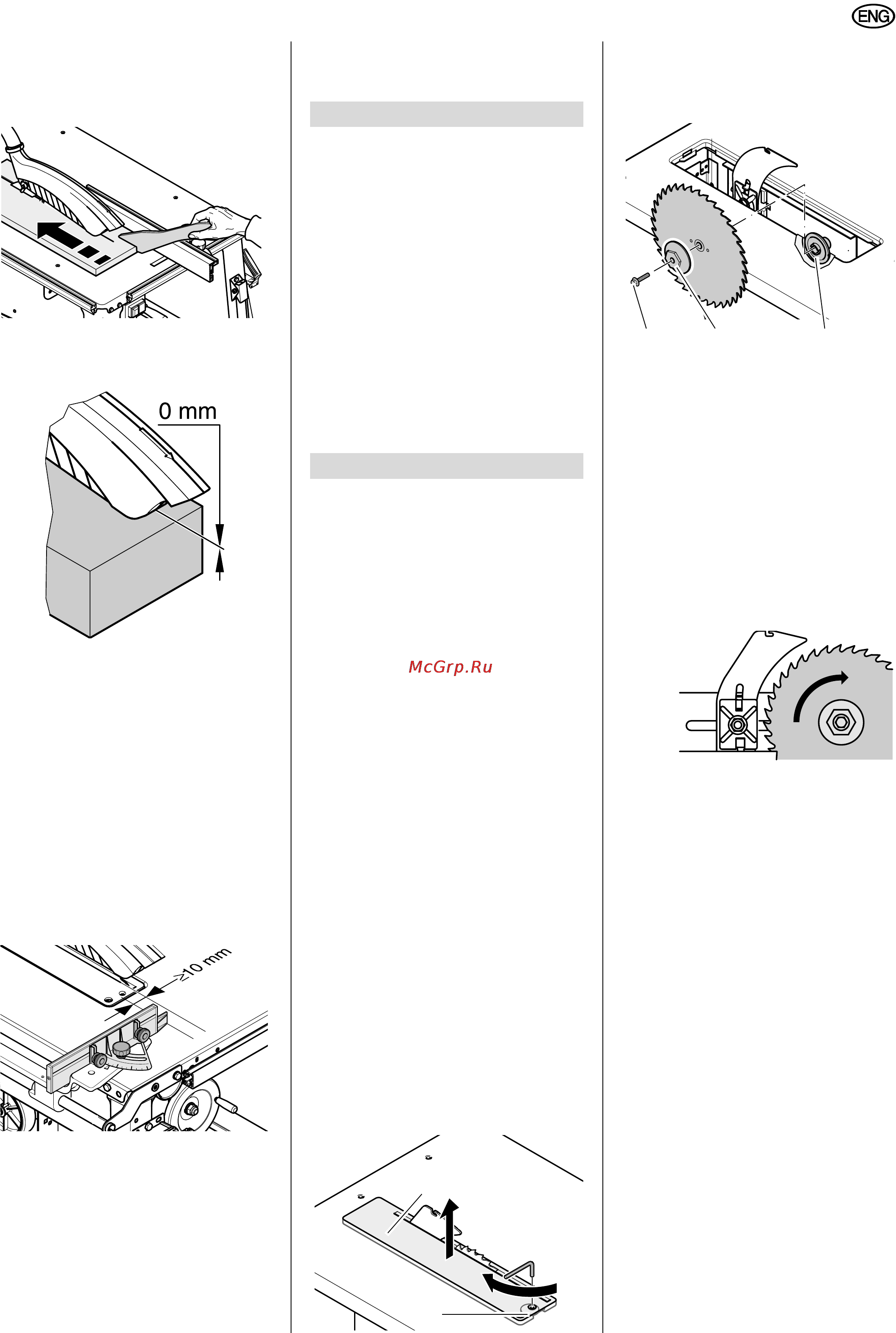

29
ENGLISH
A
Danger!
Always use the push stick if
the distance between saw blade and
rip fence is less than 120 mm.
5. Set the cutting height of the saw
blade. The blade guard must rest
with its front edge on the workpiece.
6. Set and arrest the saw blade tilt.
7. Start motor.
8. Cut workpiece in a single pass.
9. Switch machine off if no further cut-
ting is to be done immediately after-
wards.
8.5 Sawing with the mitre
fence
1. Swing mitre fence on the table top.
2. Set to desired mitre angle and lock
in that position. For mitre cuts, the
fence extrusion is adjustable to
45°maximum.
A
Caution!
The plastic nose must have at
least 10 mm distance to the line of
cut.
3. Set the cutting height of the saw
blade.
4. Set and arrest the saw blade tilt.
5. Start motor.
6. Cut workpiece in a single pass.
7. Switch machine off if no further cutting
is to be done immediately afterwards.
• Before cutting a workpiece to size
make trial cuts on pieces of scrap.
• Always place a workpiece on the
saw table in such way that it cannot
tilt or rock (e.g. always place a
curved board on the table with the
convex side up).
• When working long stock use suitable
supports, such as roller support or
table extension (optional accessories).
• Keep surfaces of saw table and
extension tables clean – in particu-
lar, remove resin residue with a suit-
able cleaning and maintenance
spray (optional accessory).
A
Danger!
Unplug before servicing.
− Repair and maintenance work other
than described in this section should
only be carried out by qualified spe-
cialists.
− Replace defective parts, especially
of safety devices, only with genuine
replacement parts. Parts not tested
and approved by the equipment
manufacturer can cause unforeseen
damage.
− Check that all safety devices are
operational again after each service.
10.1 Saw blade change
A
Danger!
Directly after cutting the saw
blade can be very hot – burning haz-
ard! Let a hot saw blade cool down.
Do not clean the saw blade with com-
bustible liquids.
Risk of injury, even with the blade at
standstill. Wear gloves when chang-
ing blades.
When fitting a saw blade, observe the
direction of rotation!
1. Raise saw blade fully.
2. Remove blade guard.
3. Turn the flat head screw (142) of the
table insert extrusion (143) clock-
wise by 1/4 turn and remove the
table insert.
4. Loosen arbor bolt (144) with span-
ner (L.H. thread!). Hold outer blade
collar (145) with open jaw wrench to
counter.
5. Remove outer blade collar (145)
and saw blade from the saw spin-
dle.
6. Clean clamping surfaces of saw
spindle and saw blade.
A
Danger!
Do not use any cleaning
agents (e.g. to remove resin resi-
dues), which could corrode the light
alloy components; the stability of the
saw may be adversely affected.
7. Put on a fresh saw blade (observe
direction of rotation!).
A
Danger!
Use only suitable saw blades
(see "Available accessories") – when
using unsuitable or damaged blades
parts could be explosive-like hurled
from it by centrifugal force.
Do not use:
− saw blades made of high speed
steel (HSS or HS);
− saw blades with visible damage;
− cut-off wheel blades.
A
Danger!
− Mount saw blade using only gen-
uine parts.
− Do not use loose-fitting reducing
rings; the saw blade could work
loose.
− Saw blades have to be mounted
in such way that they do not wob-
ble or run out of balance and can-
not work loose during operation.
8. Put on outer blade collar (145) (the
inner blade collar's (146) lug must
engage in the groove of the outer
blade collar).
9. Tips and tricks
10. Care and maintenance
142
143
146144 145
