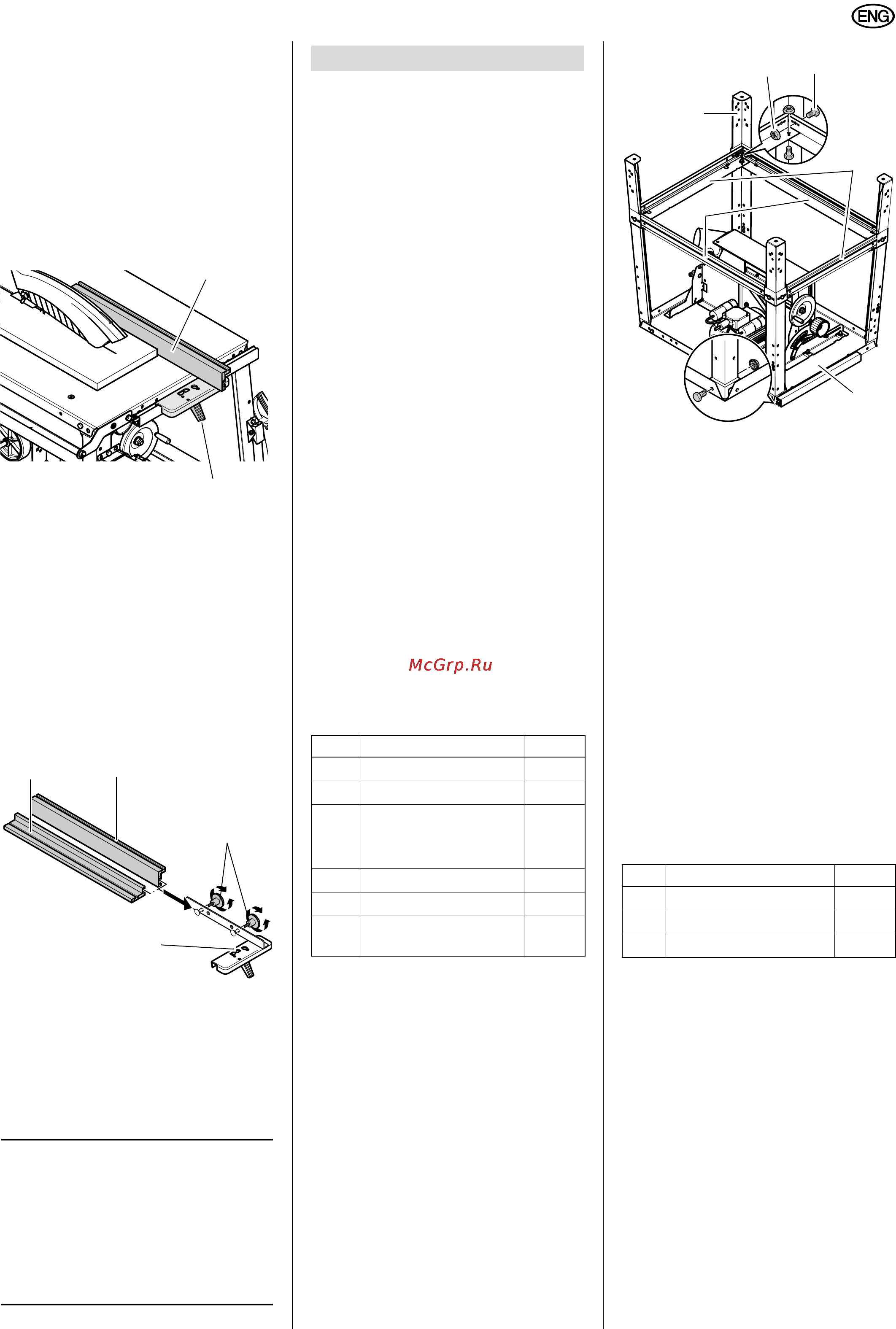

When sawing with the mitre fence
the star-knob screw (56) must be
firmly tightened.
− Knurled nuts (57) for fence extru-
sion position adjustment. The
plastic lug (55) of the fence extru-
sion must point toward the saw
blade, at a minimum distance of
10 mm to the saw blade.
− Rip fence (for ripping):
For use as rip fence the long fence
extrusion (58) must be installed. It is
mounted on the guide extrusion at
the front of the saw table.
− For ripping the fence extrusion
(58) must be parallel with the saw
blade and locked in position by
lock lever (59).
− Knurled nuts (62) for attaching
the fence extrusion. After loosen-
ing the two knurled nuts (62), the
fence extrusion can be removed
and shifted:
(60) Small edge:
− for cutting thin stock;
− when the saw blade is tilted.
(61) Wide edge:
− for cutting thick stock.
The rip fence has an opening with a
scale reading edge (63).
3
Note:
The scale's zero position is
adjusted so that is corresponds to the
high edge (see “Adjusting the rip fence”
in chapter “Assembly”.
If the small edge of the fence extrusion is
installed there will be 47 mm offset from
the reading.
A
Danger!
Modifications of the saw or the
use of parts not tested and approved
by the equipment manufacturer can
lead to unforeseen damage during
operation!
− Assemble the saw in strict
accordance with these instruc-
tions.
− Use only the parts supplied as
standard delivery.
− Do not change any parts.
Only if you follow the instructions exactly
does the saw conform to the safety regu-
lations and can be safely operated.
If you also observe the following notes,
the assembly will cause no problems:
• Read the instructions for each step
before executing it.
• Lay out the parts required for each
assembly step.
Required tools
− Allen key 4 mm
− Allen key 6 mm
− Phillips screwdriver
− Spanner SW 10
− Spanner SW 13
− Spanner SW 19
(supplied)
− Ring spanner 46 mm
(supplied)
Stand assembly
1. Place table panel (69), motor facing
up, on a stable support.
A
Caution!
Saw blade and riving knife
must not rest on the support! To pre-
vent damage to the saw or support,
the table panel should be placed onto
two sawhorses.
2. Attaching the four legs (64) to the
inside of the table panel's corners:
− Insert the hexagon head screws
(66) from the outside;
fit the two screws M8 x 20 to the
rear edge of the table (for the
table extension);
− screw on the flange nuts (65)
from the inside – do not fully
tighten yet, this is done only after
installation of the table extension.
3. Fit long stanchions (68) between the
side legs, short stanchions (67)
between the front and rear legs:
− the wide sides of the stanchions
face the table panel;
− the nibs and recesses must fit
into each other;
− fit hexagon head screws into
holes from the outside;
− from the inside screw on flange
nuts – do not yet tighten fully.
4. Screwing up the stanchions with
each other:
− Fit hexagon head screws from
the side of the table top;
− Screw on flange nuts from the
opposite side.
− With the help of another person,
turn the saw over and stand it on
a level floor.
Installing the ON/OFF switch
1. Loosen the shipping brace of the
ON/OFF switch.
2. Put hexagon head screws (72)
through the switch plate of the ON/
OFF switch.
3. Fit one each distance sleeve (71)
onto the hexagon head screws.
4. Attach the ON/OFF switch with the
hexagon head screws (72) and
flange nuts (70) to the left-hand front
leg as illustrated.
58
59
60 61
62
63
7. Assembly
Item Description Qty.
64
Leg
4
65
Flange nut M8
20
66
Hexagon head screw
M8 x 16
M8 x 20
18
2
67
Stanchion, short
2
68
Stanchion, long
2
69
Table top with chip-
case
1
Item Description Qty.
70
Flange nut
2
71
Distance sleeve
2
72
Hexagon head screw
2
64
69
65
66
68
67
