26
ENGLISH

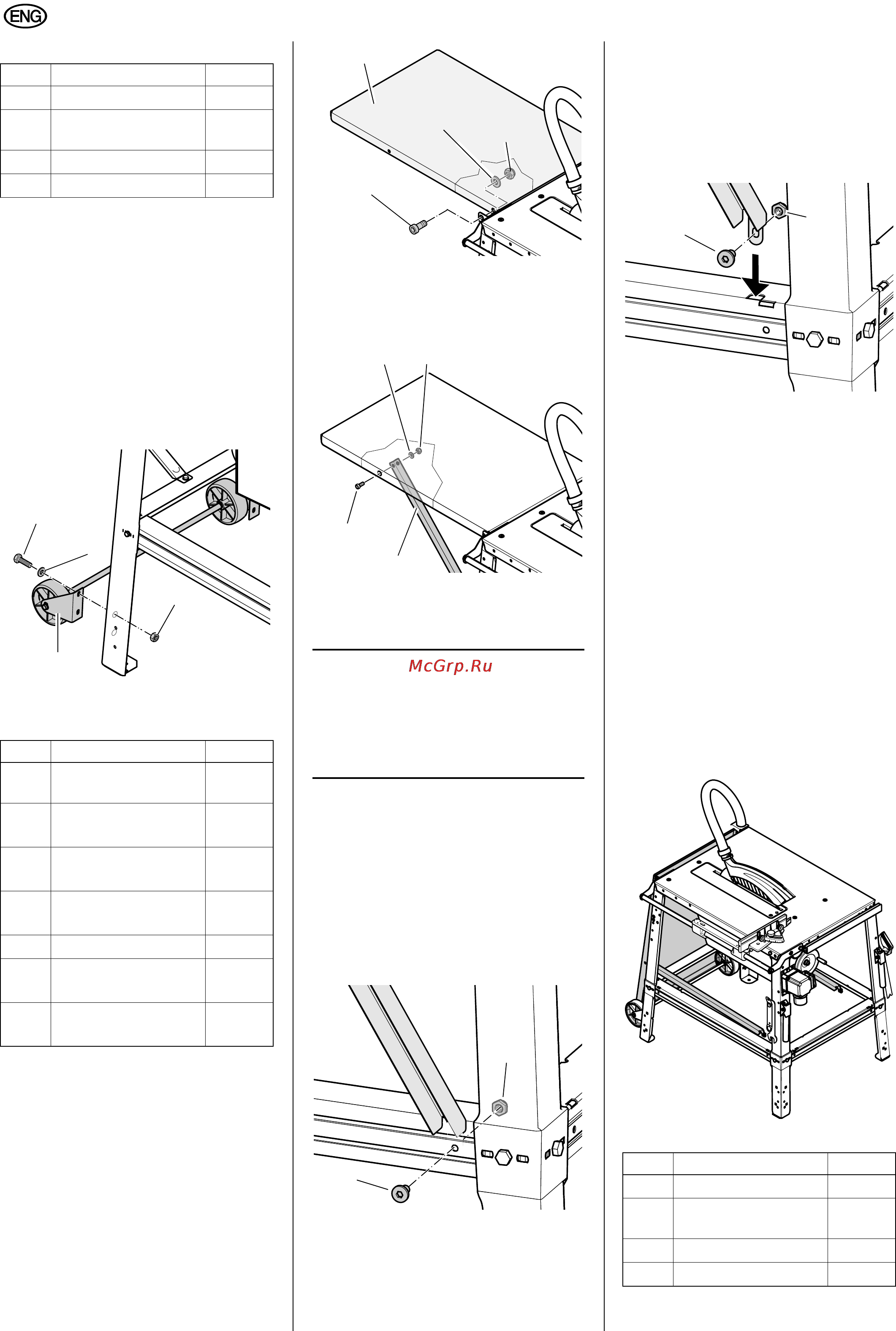

Wheel set installation
The wheel set attaches to the rear legs
of the saw.
1. Through each of the wheel set
brackets (108) two hexagon head
screws (109) with washers fitted
(110) must be put from the rear.
2. Screw on the flange nuts (111) from
inside the leg.
3. Adjust position of brackets so that
the wheels are approx. 1 mm above
the floor when the saw is standing
on all four legs.
4. Tighten flange nuts.
Table extension installation
A
Caution!
When installing the rear table
extension, both panel and support
struts need to be held as long as they
are only bolted to one end.
1. Fasten extension panel (112) with
two bearing bolts (115), two wash-
ers (113) and two flange nuts
(114)to the two brackets as illus-
trated.
If necessary, adjust the position of
the brackets to match the width of
the table extension – retighten the
screw fitting.
2. Attach the supports (118) with one
each bearing bolt (119), washer
(116) and flange nut (117) to the
table extension (see illustration).
3. Tigthen all bolted connections of the
table extension handtight using a
suitable tool.
3
Note:
The supports of the table exten-
sions can be stationary fastened. Alter-
natively they can be installed in such
way that the table extension can swing
down.
Installing the supports stationary
1. Insert the offset ends of the supports
into the slots of the short strut at the
reat of the saw and slide them
towards the outside.
2. Fasten the supports with one each
countersunk screw (121) and pre-
vailing torque-type hexagon nut
(120) to the strut as illustrated.
Installing the supports to allow the
table extension to swing down
1. Attach one each countersunk screw
(123) and prevailing torque-type
hexagon nut (122) to the lower end
of the struts.
2. Insert the lower ends of the supports
into the slots of the short strut at the
reat of the saw and slide them
towards the outside (see illustra-
tion).
Tightening the bolted connections
Check all bolted connections of the
saw. Tighten all bolted connections
hand-tight with a suitable tool.
Observe the following when tighten-
ing the screws:
After tightening the machine must
stand firmly and securely;
Table extension alignment: The
top of the table extension must
be parallel and level with the
saw's table top.
Swinging the table extension down
1. Slide the lower ends of the supports
towards each other.
2. Lift supports out of the strut and
swing table extension down as illus-
trated.
Transport handle installation
The transport handles are installed to
the front legs of the saw.
Item Description Qty.
108
Wheel set
1
109
Hexagon head screw
M6 x 16
4
110
Washer 6.4
4
111
Flange nut, M6
4
Item Description Qty.
112
Plate, table rear
extension
1
113
116
Washer 8.4
4
114
117
Flange nut M8
4
115
119
Bearing bolt
M8 x 10
4
118
Support
2
120
122
Hexagon nut, prevail-
ing torque-type M6
2
121
123
Countersunk screw
M6 x 10
2
108
109
110
111
112
114
115
113
119
117
118
116
120
121
Item Description Qty.
124
Transport handle
2
125
Hexagon head screw
M6 x 16
4
126
Washer 6.4
4
127
Flange nut, M6
4
123
122
