Caution!
Make sure the cable does not
run over sharp edges and is not bent.

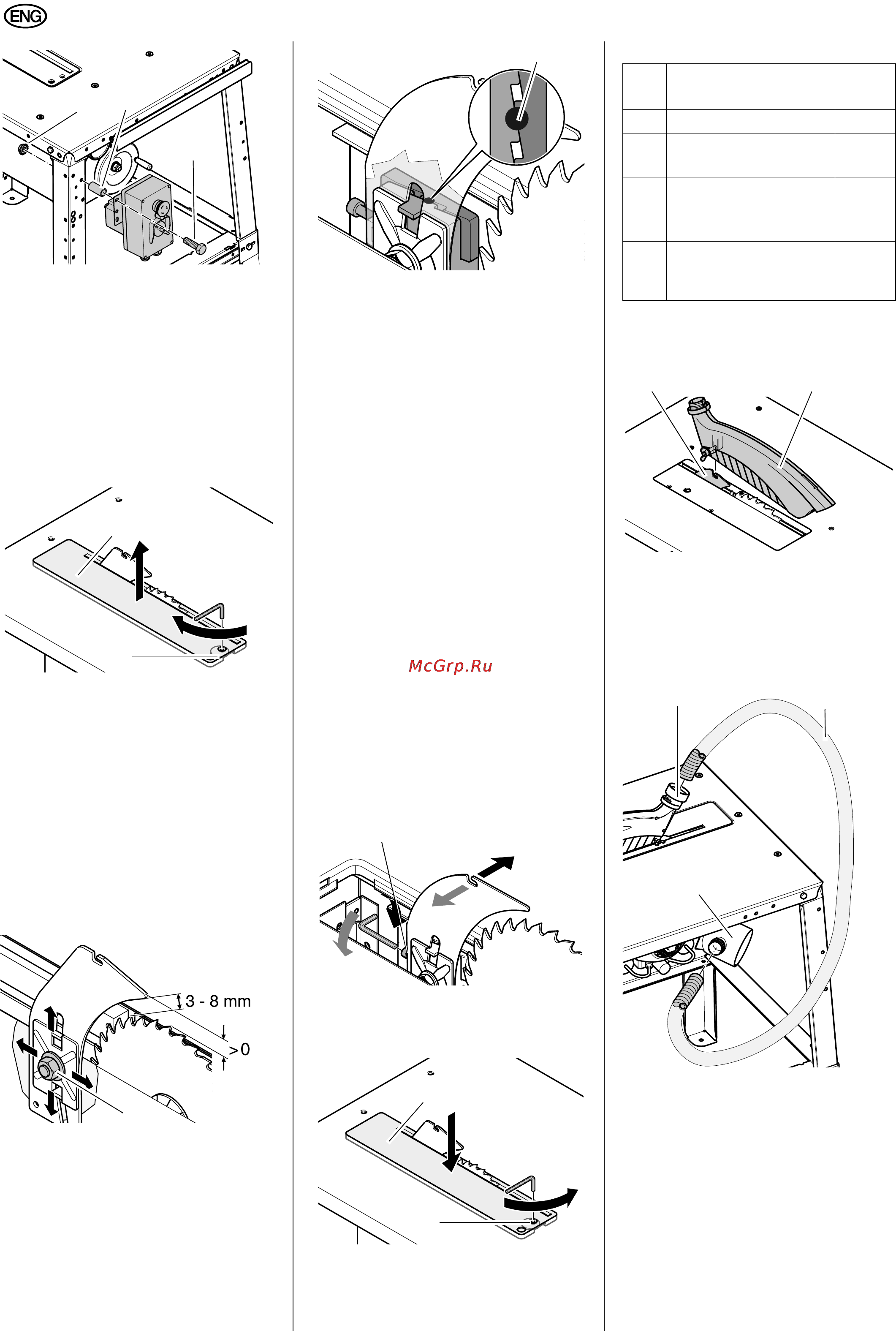

Adjusting the riving knife
To align the riving knife:
1. Remove blade guard.
2. Turn the flat head screw (74) of the
table insert extrusion (73) clockwise
by 1/4 turn and remove the table
insert.
To adjust the riving knife position exactly
to the saw blade, it is adjustable in two
planes:
− in the distance to the saw blade;
− in its lateral alignment.
Distance to the saw blade:
The distance between the saw blade's
peripheral edge and the riving knife shall
be between 3...8 mm.
The riving knife must project at least the
same distance over the saw table as the
saw blade.
1. Loosen the Keps nut (75) holding
the riving knife by one turn.
2. Adjust distance of the riving knife to
the saw blade.
3. Make sure that both parts of the
inner riving knife holder are not off-
set against each other (marking)
(76).
4. Tighten the Keps nut.
Lateral alignment:
riving knife and saw blade must be per-
fectly in line. The lateral riving knife posi-
tion is factory preset and indicated by a
marking (76).
In case a fine setting should become
necessary:
1. Loosen the Keps nut (75) holding
the riving knife by one turn.
2. Adjusting the riving knife's lateral
position:
• To move riving knife to the left: turn
hexagon socket screw (77) further
in.
• To move riving knife to the right: turn
hexagon socket screw (77) further
out.
When making this adjustment
ensure the inner section of the inner
riving knife holder rests against the
hexagon socket screw.
3. Tighten the Keps nut.
After the alignment:
1. Fit table insert extrusion (78) flush
into the saw table.
2. Turn the countersunk screw (79)
counter-clockwise against the stop.
3. Install blade guard on the riving
knife.
Installing the dust collection gear
1. Raise saw blade fully.
2. Install blade guard (80) on the riving
knife (81).
3. Push one end of the suction hose
(83) on the blade guard's suction
port (82).
4. Fit other end of the suction hose to
the dust extraction port (84) on the
chipcase.
5. Installing the hose carrier (87):
− put two hexagon head screws
from the outside through the hose
carrier and table panel;
− from the inside screw on flange
nuts (85) – do not yet tighten
fully.
70
72
71
73
74
75
76
77
78
79
Item Description Qty.
80
Blade guard
1
83
Suction hose
1
85
Flange nut M8
( ) = already installed
1
(1)
87
Hexagon head screw
M8 x 16
( ) = already installed
1
(1)
87
Hose carrier with
bracket for table exten-
sion
1
8081
82 83
84
