Instruction SiBE12-728
110 Operation Manual
Outdoor Unit
Indoor Unit
1. Air filter
2. Air purifying filter with
photocatalytic deodorizing function:
•
These filters are attached to the inside of the air
filters.
3. Air inlet
4. Front panel
5. Panel tab
6. Room temperature sensor:
•
It senses the air temperature around the unit.
7. INTELLIGENT EYE sensor:
•
It detects the movements of people and auto-
matically switches between normal operation
and energy saving operation.
8. Display
9. Air outlet
10. Flaps (horizontal blades)
11. Louvers (vertical blades):
• The louvers are inside of the air outlet.
12. Indoor Unit ON/OFF switch:
•
Push this switch once to start operation.
Push once again to stop it.
•
The operation mode refers to the following
table.
•
This switch is useful when the remote controller
is missing.
13. Operation lamp (green)
14. TIMER lamp (yellow)
15. HOME LEAVE lamp (red)
16. Signal receiver:
•
It receives signals from the remote controller.
•
When the unit receives a signal, you will hear a
short beep.
•
Operation start .............beep-beep
•
Settings changed..........beep
•
Operation stop ..............beeeeep

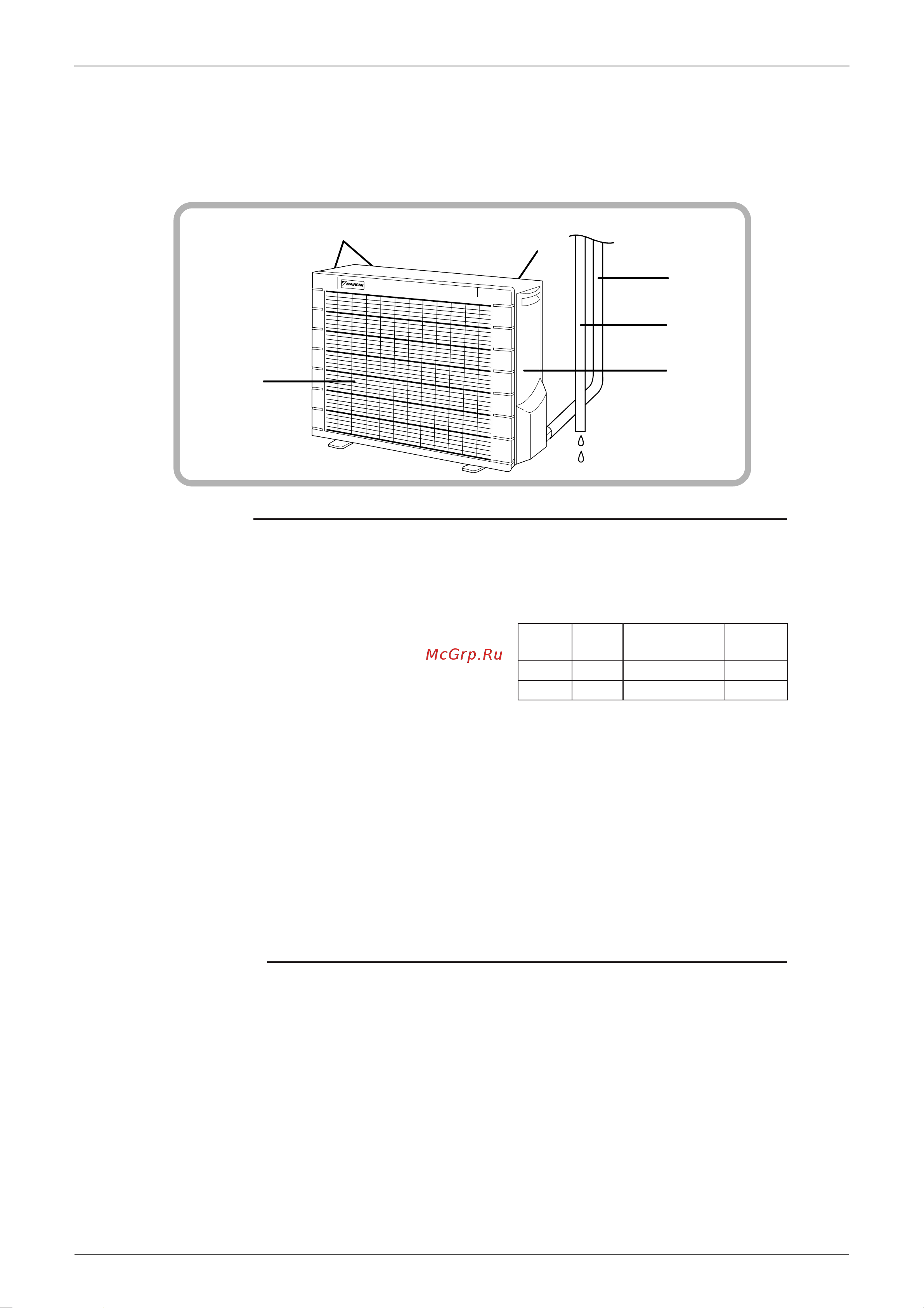

Outdoor Unit
17. Air inlet:
(Back and side)
18. Air outlet
19. Refrigerant piping and inter-unit cable
20. Drain hose
21. Earth terminal:
• It is inside of this cover.
22. Outside air temperature sensor:
(Back side)
• It senses the ambient temperature around the
unit.
Appearance of the outdoor unit may differ from some models.
Mode
Temperature
setting
Air flow
rate
FTKS COOL 22°C AUTO
FTXS AUTO
25°C
AUTO
21
20
19
22
17
18
