SiBE12-728 Instruction
Operation Manual 197
20

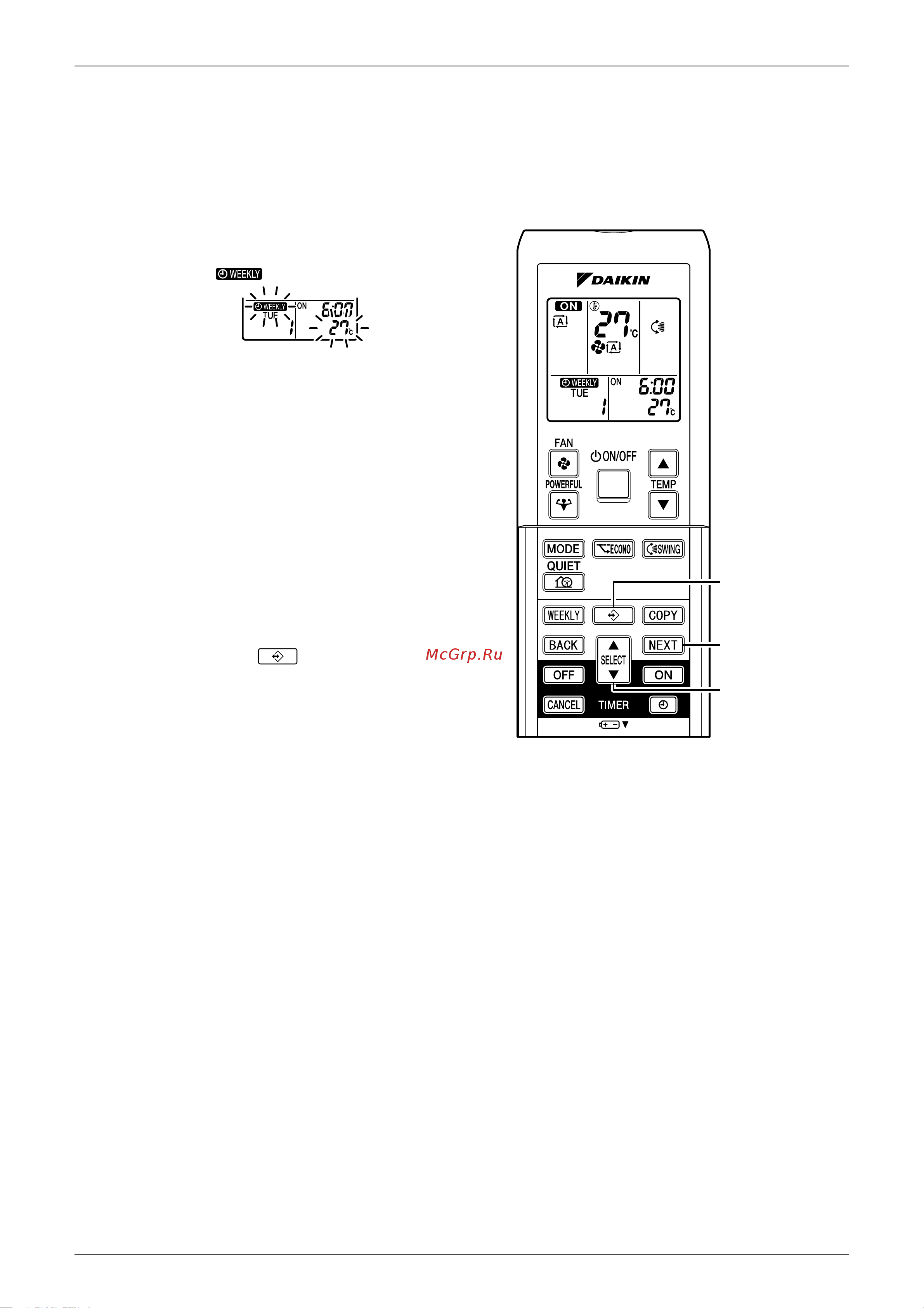

WEEKLY TIMER Operation
7. Press “NEXT button”.
• The time will be set.
• “ ” and the temperature blink.
8. Press “SELECT button” to
select the desired temperature.
• The temperature can be set between
10˚C and 32˚C.
• To return to the time setting, press
“BACK button”.
• The set temperature is only displayed
when the mode setting is on.
9. Press “NEXT button”.
• The temperature will be set.
• The temperature will be set and go to
the next reservation setting.
• Set the following using the same
procedures.
10.Press “ button” to
complete the setting.
• Point the remote controller toward the
air conditioner and press the buttons to
operate. The air conditioner will beep
and the operation lamp will flash.
7, 9
10
8
