Outdoor Unit SiBE12-728
310 Removal Procedure
1.4 Removal of Fan Motor
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step Procedure Points

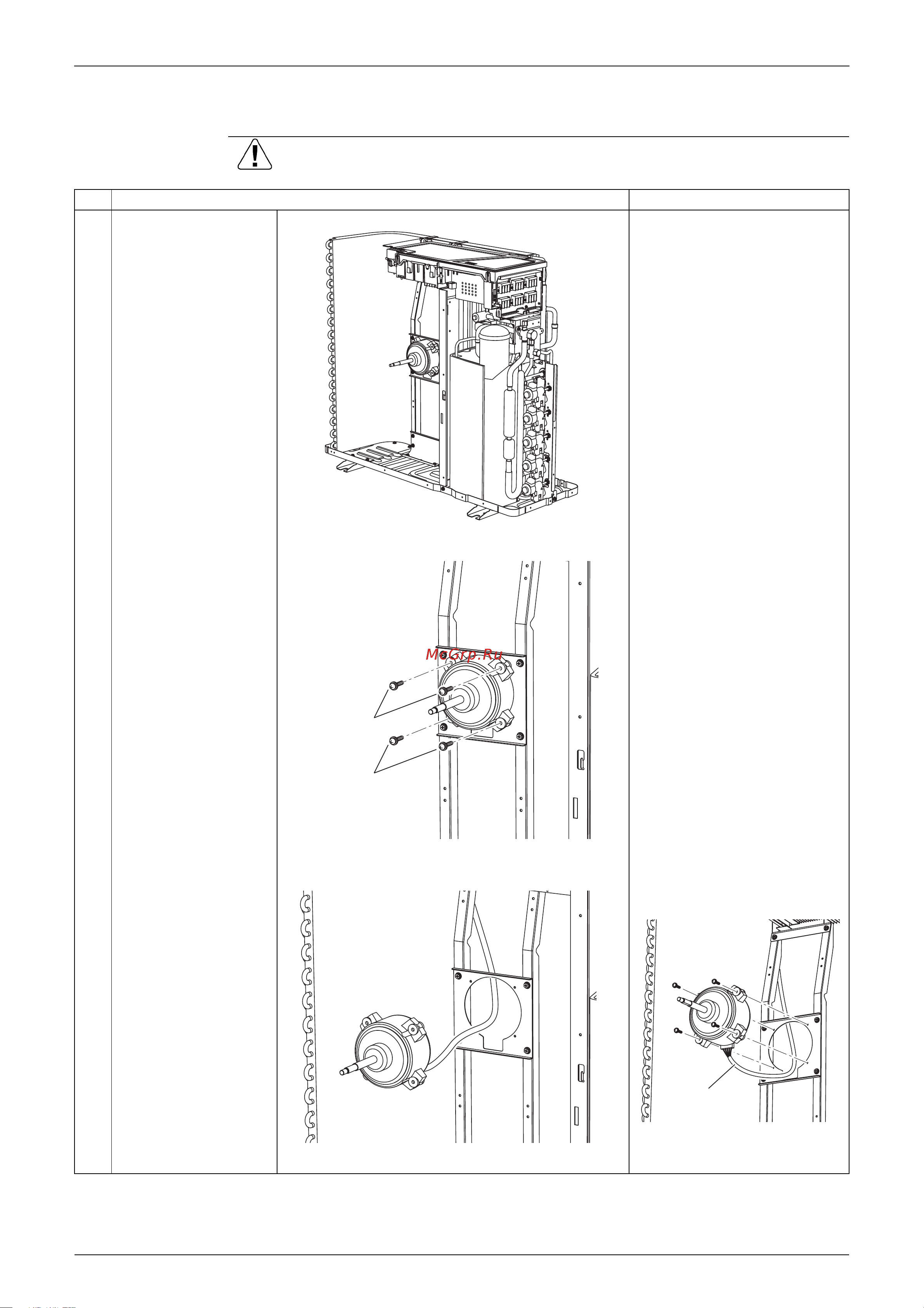

1
2
Remove the 2 screws
at the bottom first.
Next, remove the 2 top
screws.
Be sure to remove the bottom
screws first. If the top screws
are removed first, the fan motor,
the center of gravity of which is
toward the front, may tilt down
or fall, getting you injured.
3 Remove the fan motor. When reassembling, be sure to
place the wire harness lower.
(R6441)
(R6442)
2
1
(R6443)
(R6444)
Harness
