Daikin FTKS50D2V1L [309/359] Lift the panel upward to undo the 2 hooks and remove it
![Daikin FTXS50D2V1L [309/359] Lift the panel upward to undo the 2 hooks and remove it](/views2/1771997/page309/bg135.png)
Outdoor Unit SiBE12-728
298 Removal Procedure
9

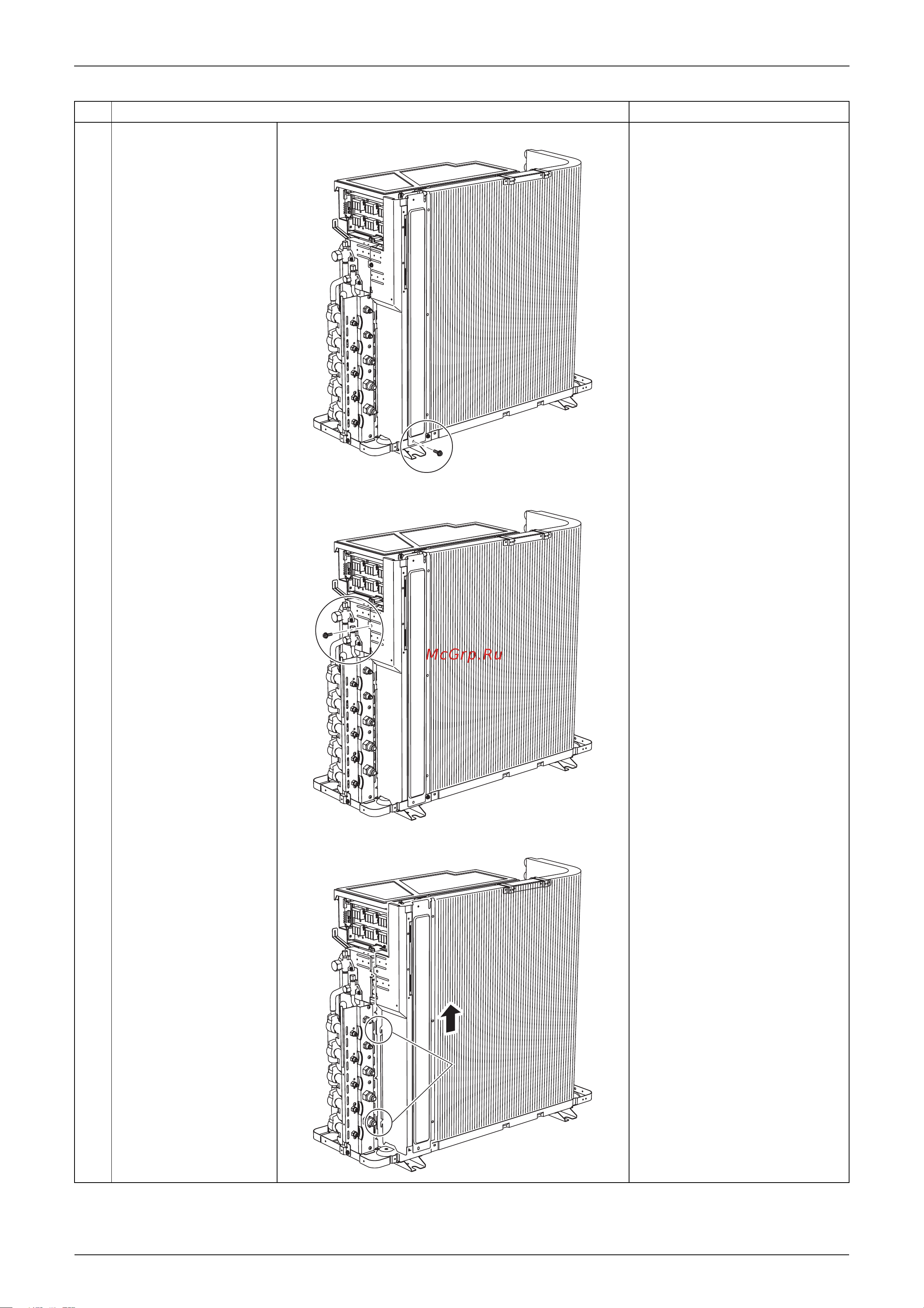

Remove the fixing
screw from the bottom
frame.
10
Remove the fixing
screw from the shut-off
valve mounting plate.
11
Lift the panel upward to
undo the 2 hooks and
remove it.
Step Procedure Points
(R6406)
(R6407)
HooksHooks
(R6408)
