Instruction SiBE12-728
120 Operation Manual
Remote Controller

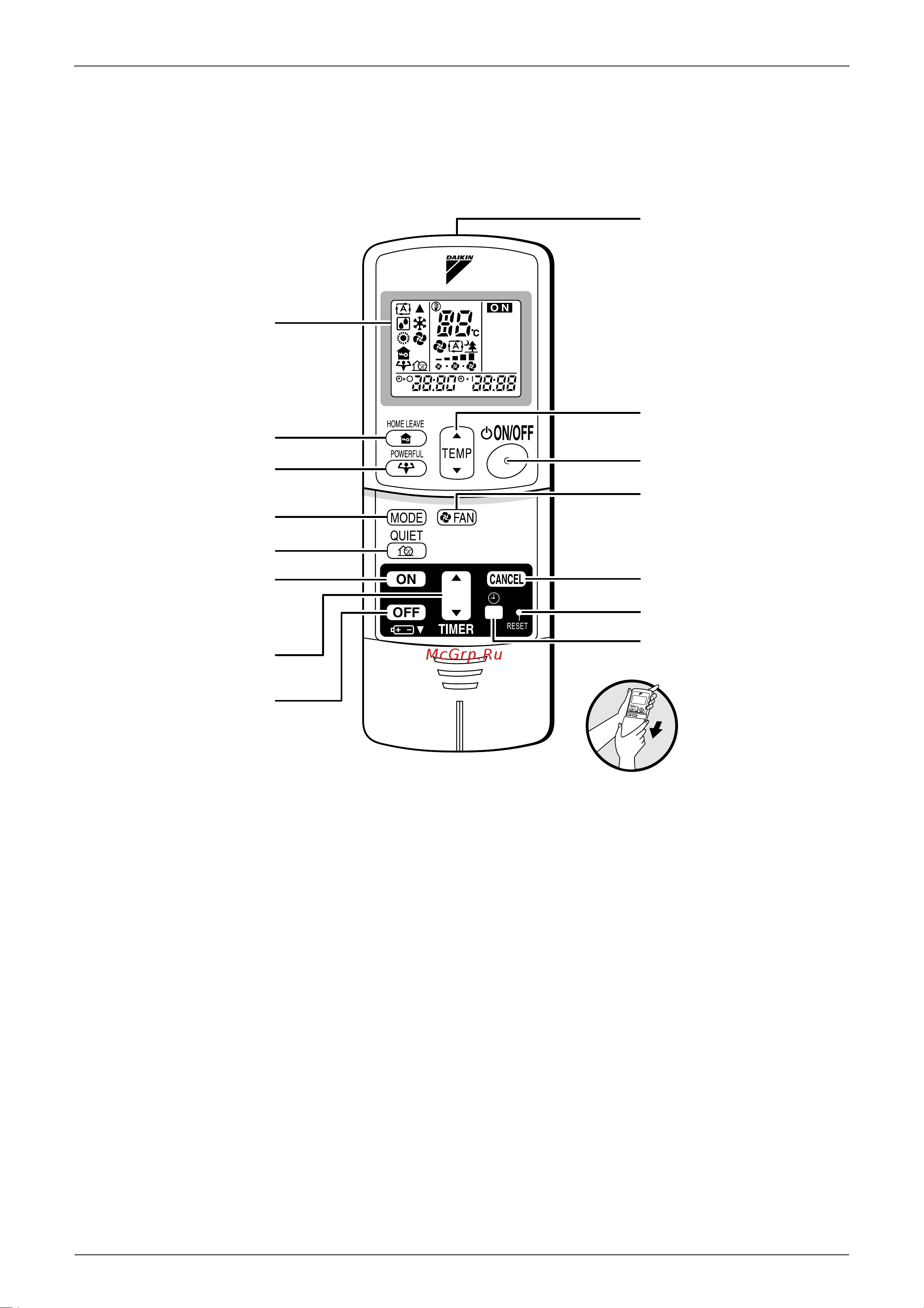

1. Signal transmitter:
•
It sends signals to the indoor unit.
2. Display:
•
It displays the current settings.
(In this illustration, each section is shown
with all its displays ON for the purpose of
explanation.)
3. HOME LEAVE button:
HOME LEAVE operation
4. POWERFUL button:
POWERFUL operation
5. TEMPERATURE adjustment buttons:
•
It changes the temperature setting.
6. ON/OFF button:
• Press this button once to start operation.
Press once again to stop it.
7. MODE selector button:
•
It selects the operation mode.
(AUTO/DRY/COOL/HEAT/FAN)
8. QUIET button:
OUTDOOR UNIT
QUIET
operation
9. FAN setting button:
•
It selects the air flow rate setting.
10. ON TIMER button
11. OFF TIMER button
12. TIMER Setting button:
•
It changes the time setting.
13. TIMER CANCEL button:
•
It cancels the timer setting.
14. CLOCK button
15. RESET button:
• Restart the unit if it freezes.
• Use a thin object to push.
1
2
5
6
9
13
15
14
10
12
11
〈 ARC433B69, B76 〉
3
4
7
8
