SiBE12-728 Troubleshooting
Service Diagnosis 261
Troubleshooting
Check No.06
Refer to P.276
P4
: Radiation fin thermistor
J3
: Discharge pipe thermistor
J6
: Outdoor unit heat exchanger thermistor
J8
: Liquid pipe thermistor
J9
: Gas pipe thermistor
H9
: Outdoor temperature thermistor
(R7176)

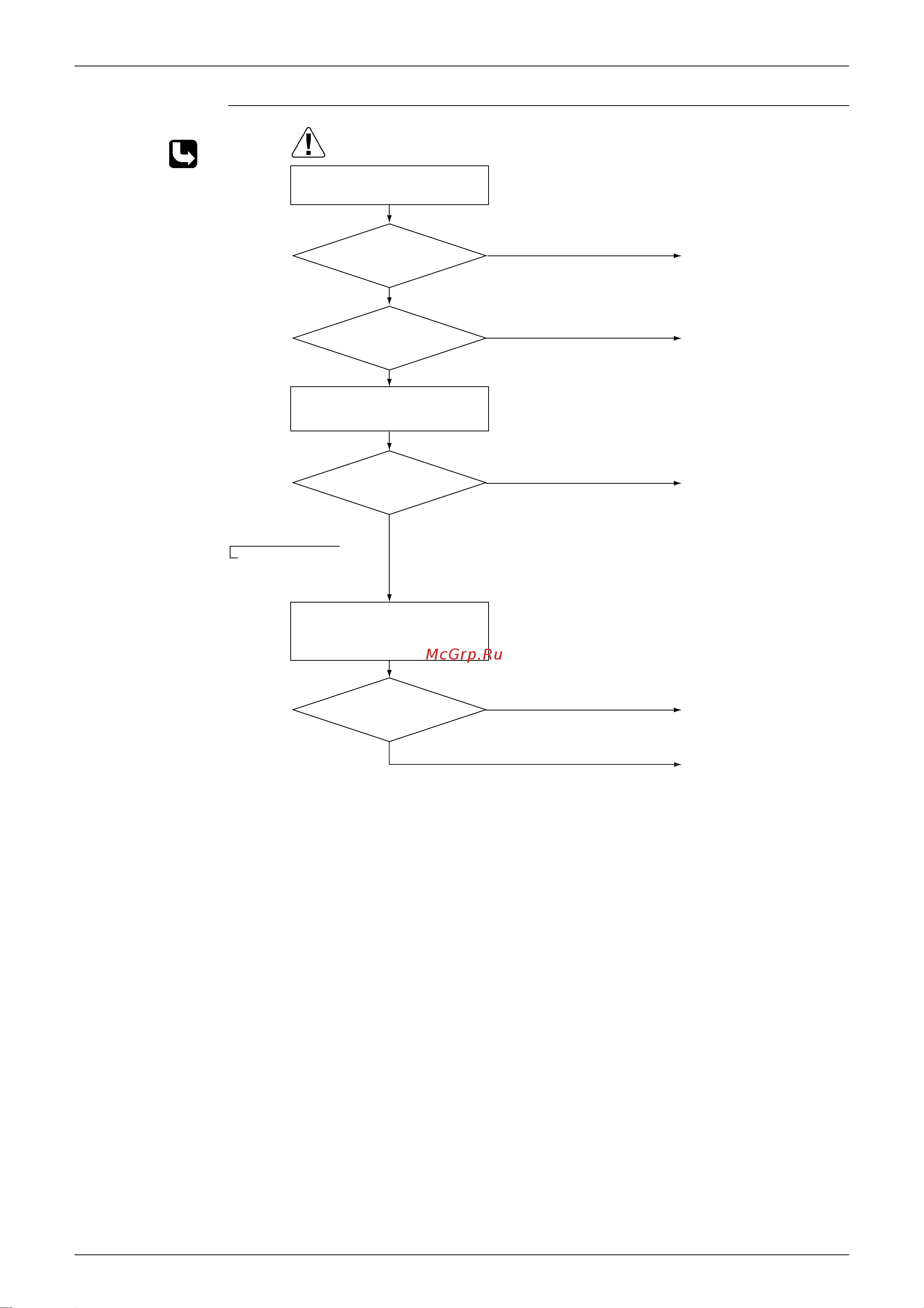

Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
NO
YES
YES
YES
NO
NO
NO
YES
Turn on the power again.
Normal?
Reconnect.
Reconnect.
J3 error if discharge pipe
thermistor temperature is
smaller than condenser
thermistor temperature
Replace defective one(s) of
the following thermistors.
z Radiation fin thermistor
z Discharge pipe thermistor
z Outdoor unit heat
exchanger thermistor
z Liquid pipe thermistor
z Gas pipe thermistor
z Outdoor temperature
thermistor
z Indoor unit heat
exchanger thermistor
Cooling: Outdoor unit heat
exchanger thermistor
Heating: Indoor unit heat
exchanger thermistor
Replace the following
thermistor.
Replace the outdoor unit
PCB.
(Replace the indoor unit
PCB.)
Connector or thermistor
disconnected?
Error displayed
again on remote
controller?
Indoor unit
heat exchanger thermistor
functioning?
Check No. 06
Check the thermistor resistance
value.
Check No. 06
Check the indoor unit heat
exchanger thermistor resistance
value in the heating mode.
