SiBE12-728 Check
Service Diagnosis 279
6.1.9 Power Supply Waveforms Check

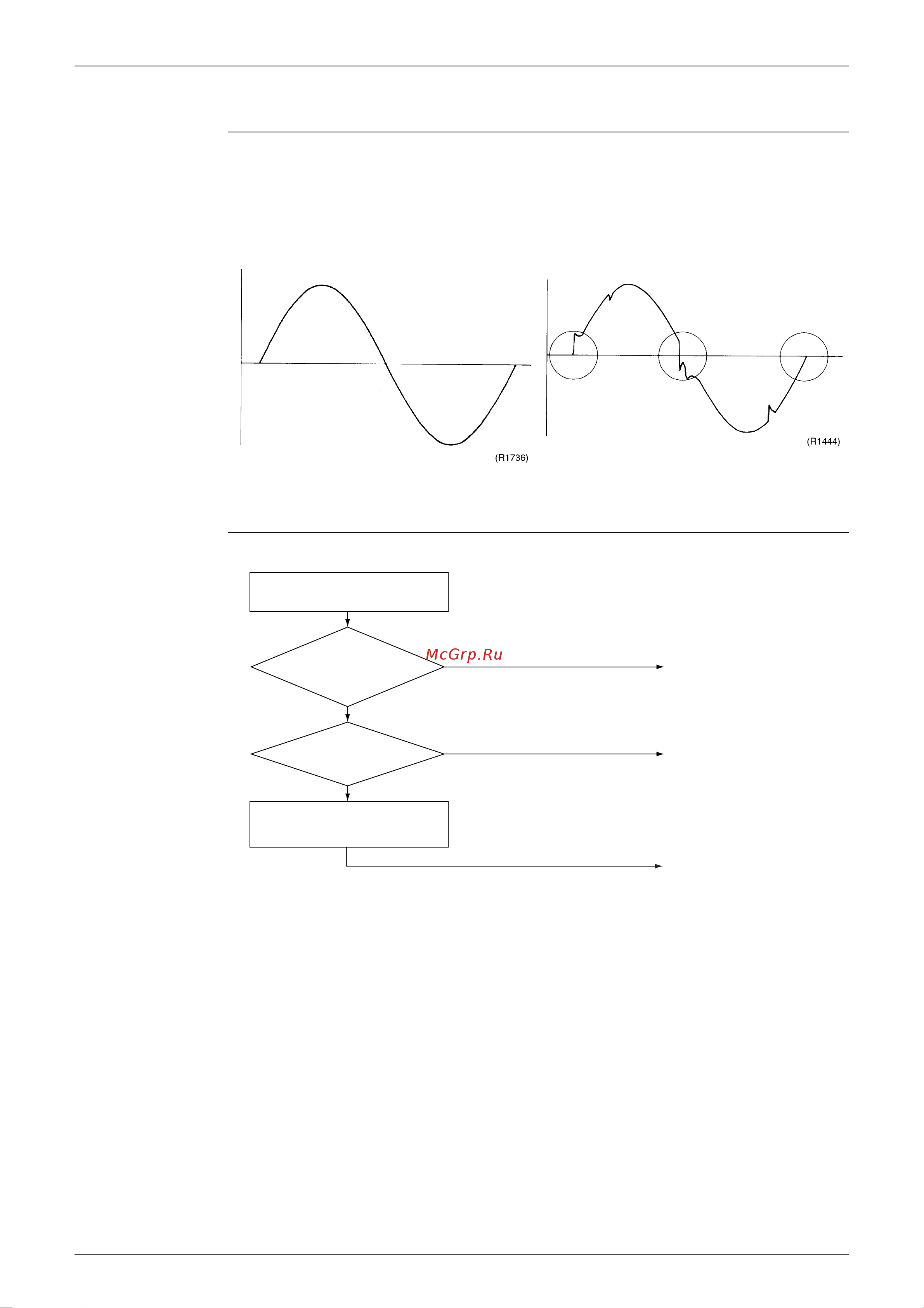

Check No.10 Measure the power supply waveform between pins 1 and 3 on the terminal board, and check
the waveform disturbance.
Check to see if the power supply waveform is a sine wave (Fig.1).
Check to see if there is waveform disturbance near the zero cross (sections circled in Fig.2)
6.1.10 Inverter Units Refrigerant System Check
Check No.11
[Fig.1] [Fig.2]
Refrigerant system check
Check for gas leaks.
See the section on insufficient gas
detection.
Conduct the check after operating the
equipment for a sufficient length of time.
(R7237)
YES
YES
NO
NO
Correct the problem.
Conduct vacuum drying.
Replace the refrigerant.
Is any
moisture found in sight
glass?
Is
the discharge
thermister disconnected
from the holder?
