Daikin FTKS50D2V1L [297/359] Removing the right side panel
![Daikin FTKS50D2V1W [297/359] Removing the right side panel](/views2/1771997/page297/bg129.png)
Outdoor Unit SiBE12-728

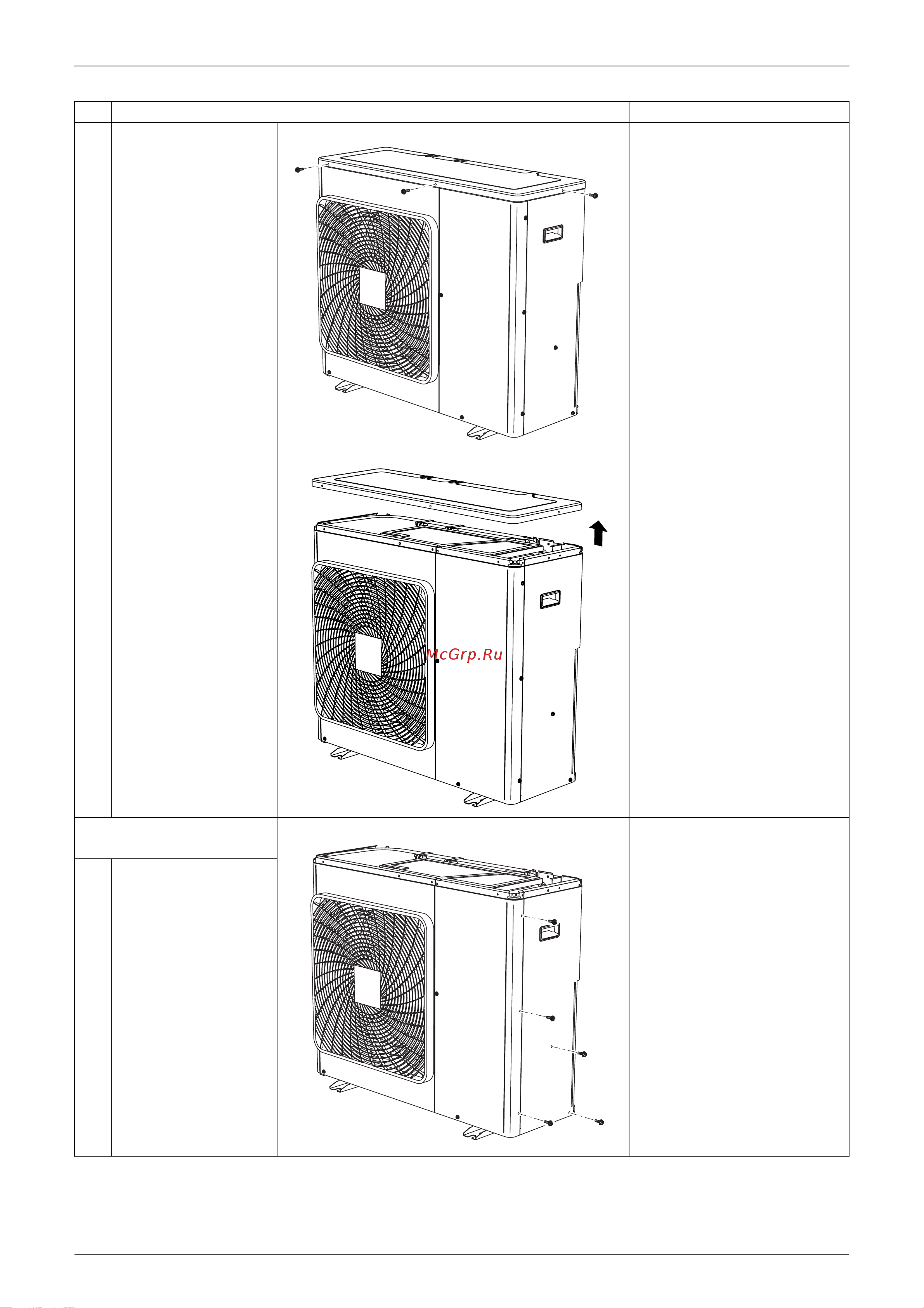

286 Removal Procedure
2
Remove the 2 screws
on the front and 1 screw
on the right side panel.
3
Lift the top panel and
remove it.
3. Removing the right side
panel.
1
Remove the 5 screws.
Step Procedure Points
(R6374)
(R6375)
(R6376)
