SiBE12-728 Instruction
Operation Manual 113
Outdoor Unit
Indoor Unit
1.
Air filter
2. Titanium Apatite Photocatalytic
Air-Purifying Filter
3. Air inlet
4. Front panel
5. Panel tab
6. INTELLIGENT EYE sensor:
•
It detects the movements of people and
automatically switches between normal operation
and energy saving operation.
7. Room temperature sensor:
•
It senses the air temperature around the unit.
8. Display
9. Air outlet
10. Flap (horizontal blade)
11. Louvers (vertical blades):
• The Louvers are inside of the air outlet.
12. Operation lamp (green)
13. TIMER lamp (yellow)
14. HOME LEAVE lamp (red):
•
Lights up when you use HOME LEAVE
Operation.
15. Indoor Unit ON/OFF switch:
•
Push this switch once to start operation.
Push once again to stop it.
•
The operation mode refer to the following table.
•
This switch is useful when the remote controller
is missing.
16. Signal receiver:
•
It receives signals from the remote controller.
•
When the unit receives a signal, you will hear a
short beep.
•
Operation start .............beep-beep
•
Settings changed..........beep
•
Operation stop ..............beeeeep

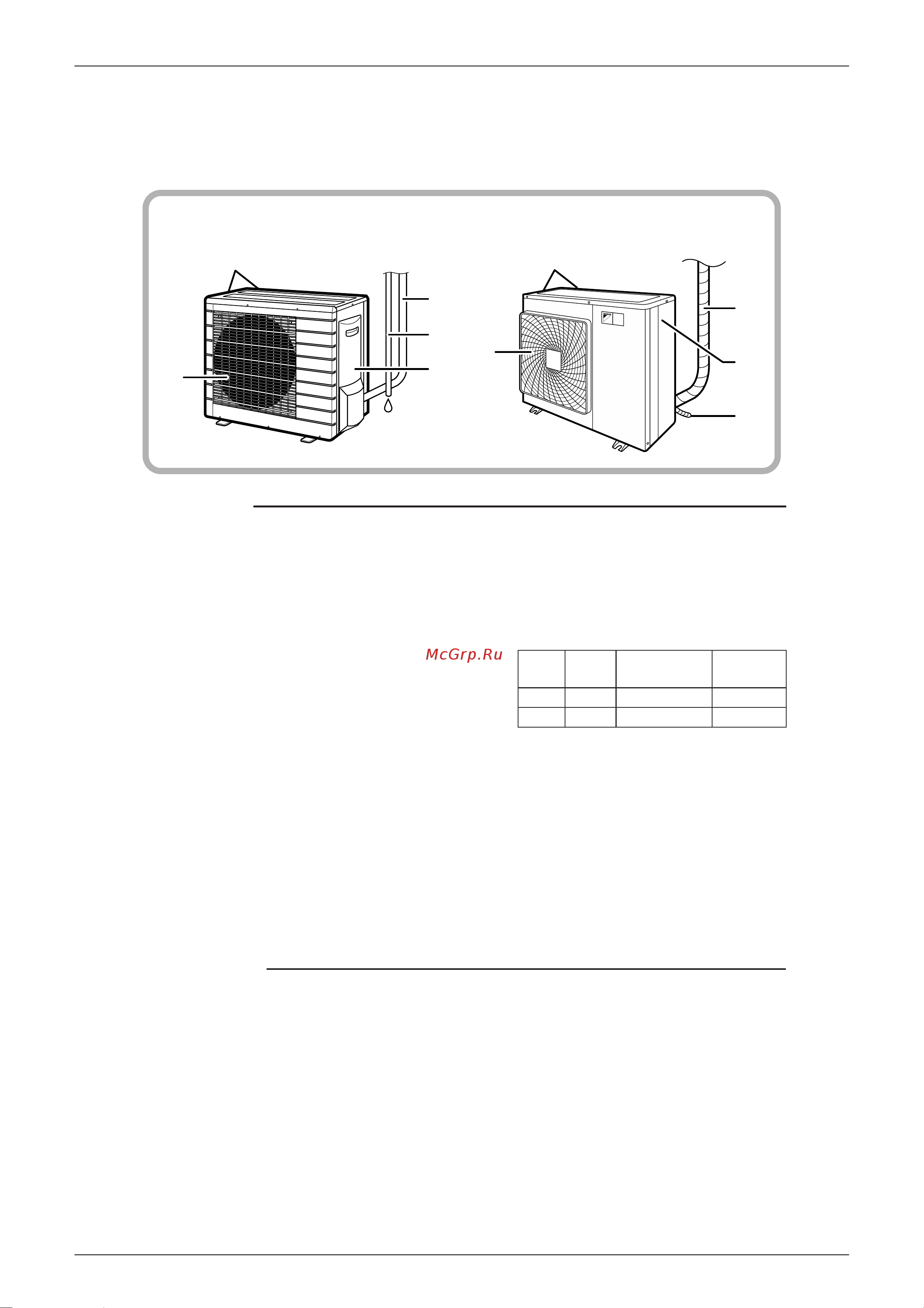

Outdoor Unit
17. Air inlet:
(Back and side)
18. Air outlet
19. Refrigerant piping and inter-unit cable
20. Drain hose
21. Earth terminal:
• It is inside of this cover.
Appearance of the outdoor unit may differ from some models.
19
20
21
18
17
19
20
21
17
18
50/60 class 71 class
Mode
Temperature
setting
Air flow
rate
FTKS COOL 22°C AUTO
FTXS AUTO
25°C AUTO
