Instruction SiBE12-728
144 Operation Manual

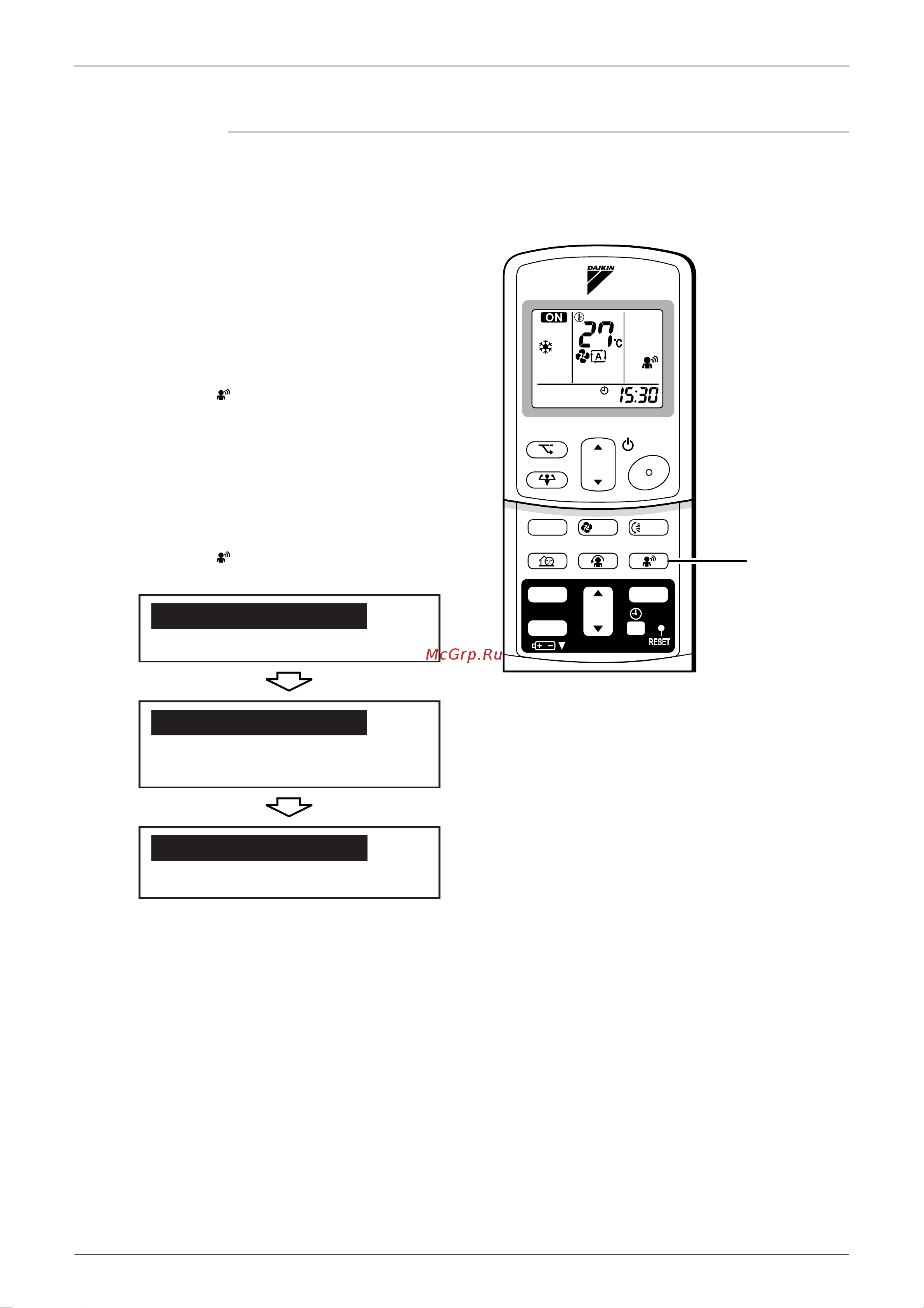

2.1.11 INTELLIGENT EYE Operation
FTK(X)S 20/25/35/50 D
INTELLIGENT EYE Operation
“INTELLIGENT EYE” is the infrared sensor which
detects the human movement.
To start INTELLIGENT EYE
operation
1. Press “SENSOR button”.
• “ ” is displayed on the LCD.
To cancel the
INTELLIGENT EYE
operation
2. Press “SENSOR button” again.
•“ ”
disappears from the LCD.
[EX.]
TEMP
ON/OFF
POWERFUL
MODE
FAN
SWING
QUIET
SENSOR
ECONO
COMFORT
TIMER
ON
CANCEL
OFF
1, 2
When somebody in the room
•
Normal operation.
When nobody in the room
•
20 min. after, start
energy saving
operation
.
Somebody back in the room
•
Back to normal operation.
