Troubleshooting SiBE12-728
248 Service Diagnosis
5.13 Compressor Lock
Remote
Controller
Display
E6
Outdoor Unit LED
Display
A
5
1
1
2
4
3
4
4
1
5
1
Method of
Malfunction
Detection
A compressor lock is detected by checking the compressor running condition through the
position detection circuit.
Malfunction
Decision
Conditions
Judging from current waveform generated when high-frequency voltage is applied to the
compressor.
The system will be shut down if the error occurs 16 times.
Clearing condition: Continuous run for about 5 minutes (normal)
Supposed
Causes
Compressor locked

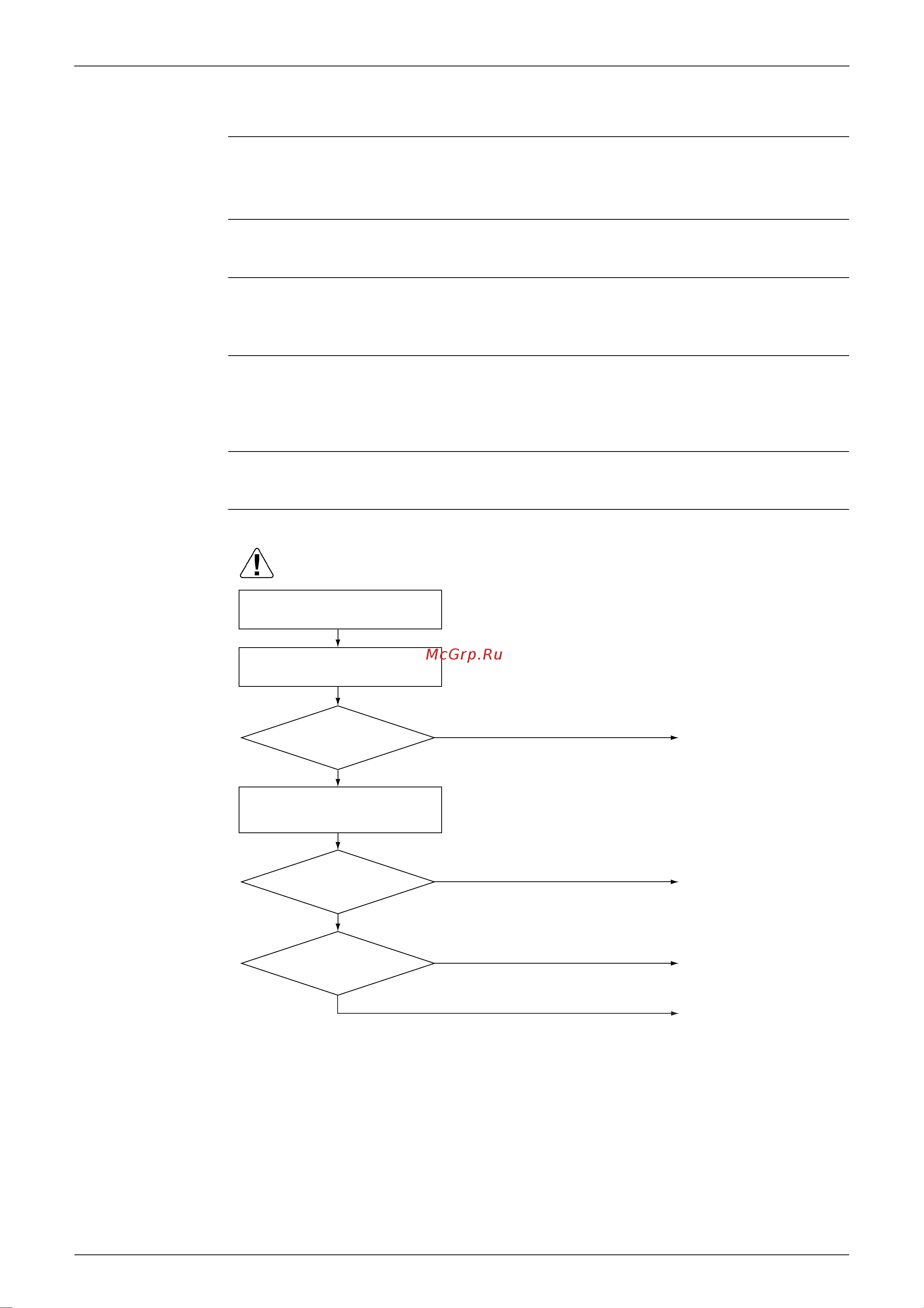

Troubleshooting
Turn off the power. Disconnect the
harnesses U, V and W.
(R7172)
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
NO
YES
YES
NO
NO
YES
Check with the inverter checker (∗).
Turn off the power and reconnect
the harnesses. Turn on the power
again and get the system restarted.
Correct the power supply or
replace the PM1.
(Replace the outdoor unit
PCB.)
∗ Inverter checker
Part No.: 1225477
Replace the compressor.
Replace it as required.
Replace the compressor.
Check the electronic
expansion valve.
Normal?
Emergency
stop without compressor
running?
System shut
down after errors repeated
several times?
