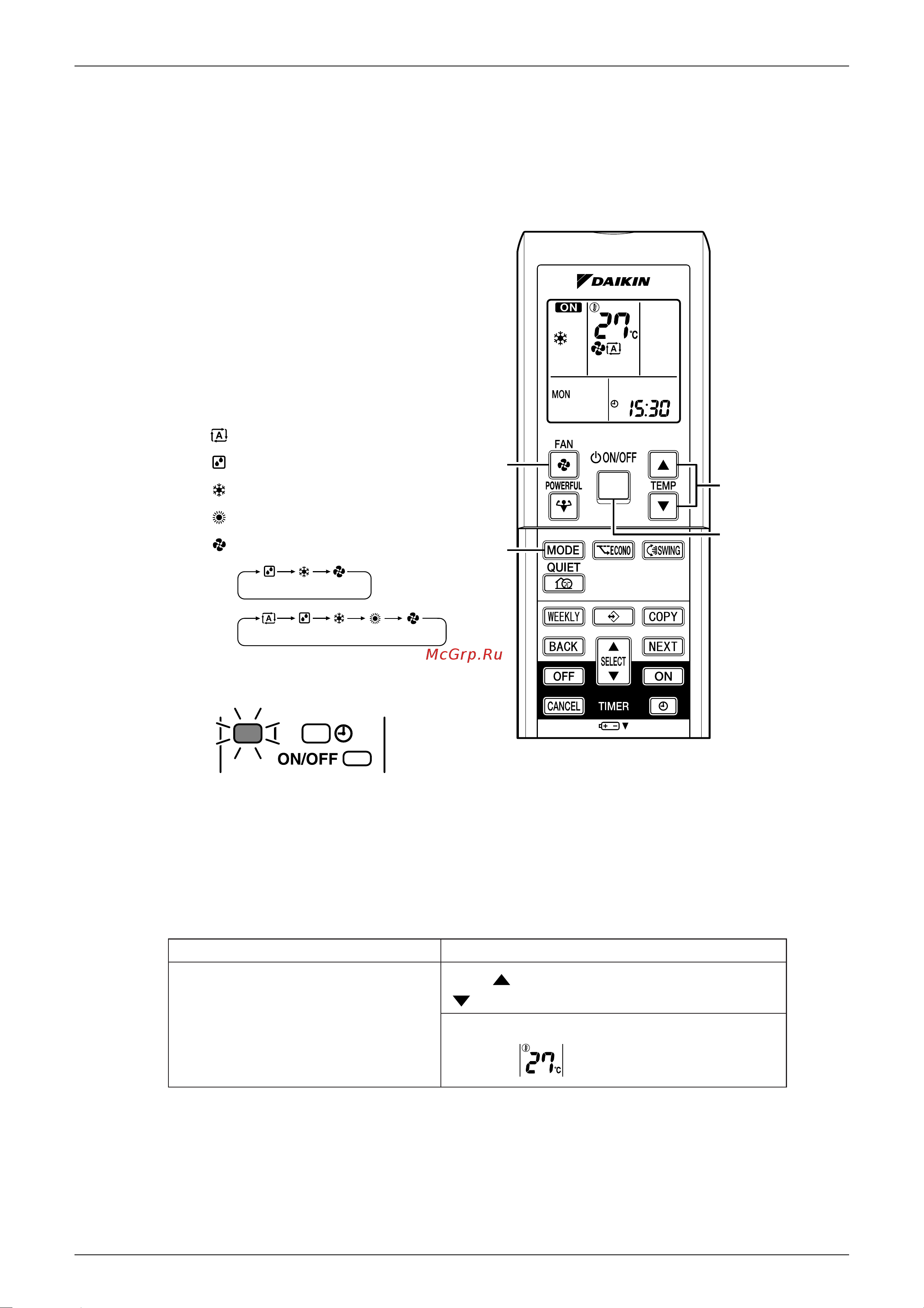

2.2.4 AUTO · DRY · COOL · HEAT · FAN Operation
10
AUTO · DRY · COOL · HEAT · FAN Operation
The air conditioner operates with the operation
mode of your choice.
From the next time on, the air conditioner will
operate with the same operation mode.
To start operation
1. Press “MODE selector button”
and select a operation mode.
• Each pressing of the button advances
the mode setting in sequence.
: AUTO
:DRY
: COOL
:HEAT
:FAN
2. Press “ON/OFF button”.
• The OPERATION lamp lights up.
To stop operation
3. Press “ON/OFF button” again.
• Then OPERATION lamp goes off.
To change the temperature setting
4. Press “TEMPERATURE adjustment button”.
DRY or FAN mode AUTO or COOL or HEAT mode
The temperature setting is not variable.
Press “ ” to raise the temperature and press
“ ” to lower the temperature.
Set to the temperature you like.
1
5
2, 3
4
Cooling only
model
Heat pump
model
