Instruction SiBE12-728
122 Operation Manual
Outdoor Unit
Indoor Unit
1. Louvers (vertical blades):
The louvers are inside of the air outlet.
2. Air outlet
3. Flap (horizontal blade)
4. Panel tab
5. Air inlet
6. Display
7. Air filter
8. Photocatalytic deodorizing filter or
Air purifying filter:
•
These filters are attached to the inside of the air
filters.
9. Front panel
10. Operation lamp (green)
11. TIMER lamp (yellow)
12. HOME LEAVE lamp (red):
Lights up when you use HOME LEAVE
Operation.
13. Indoor unit ON/OFF switch:
•
Push this switch once to start operation.
Push once again to stop it.
•
The operation mode refers to the following
table.
•
Push the switch using an object with a sharp
tip, such as a pen.
•
This switch is useful when the remote controller
is missing.
14. Signal receiver:
•
It receives signals from the remote controller.
•
When the unit receives a signal, you will hear a
short beep.
•
Operation start .............beep-beep
•
Settings changed..........beep
•
Operation stop ..............beeeeep

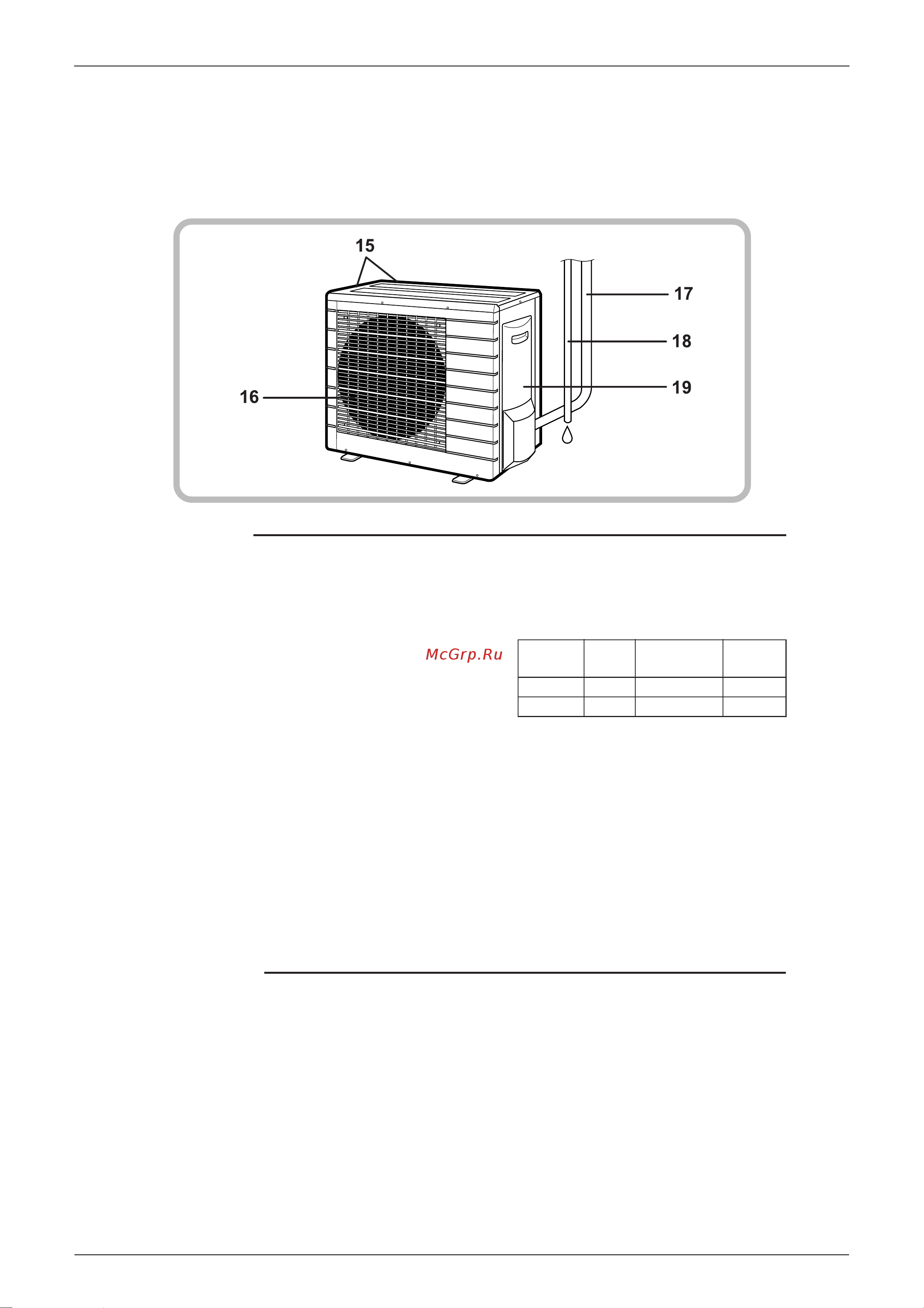

Outdoor Unit
15. Air inlet: (Back and side)
16. Air outlet
17. Refrigerant piping and inter-unit cable
18. Drain hose
19. Earth terminal:
• It is inside of this cover.
Appearance of the outdoor unit may differ from some models.
Mode
Temperature
setting
Air flow
rate
FLKS COOL 22°C AUTO
FLXS AUTO
25°C
AUTO
