Troubleshooting SiBE12-728
254 Service Diagnosis

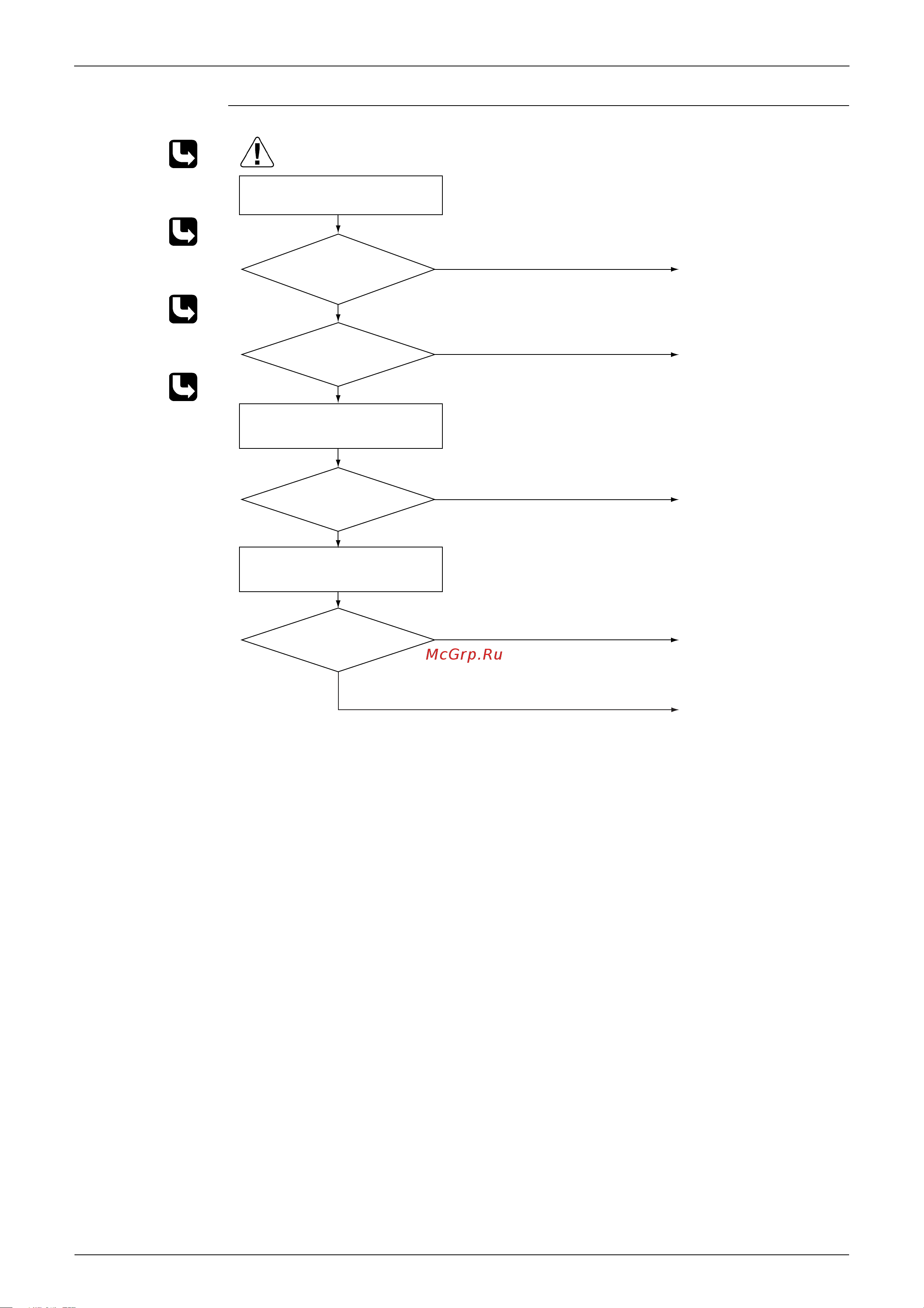

Troubleshooting
Check No.04
Refer to P.274
Check No.06
Refer to P.276
Check No.07
Refer to P.277
Check No.09
Refer to P.278
(R7142)
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
Replace the fan motor.
Repair the connector or fan
motor lead wires.
Replace the heat exchanger
thermistor.
Replace PCB.
Replace the electronic
expansion valve or coil.
Replace the PCB.
Change the air outlet grille
position.
Clean the heat exchanger.
Change the installation
location.
Check No. 06
Check the heat exchanger
thermistor.
Check the installation space.
Check No. 04
Check the electronic expansion valve.
Abnormal
Normal
Normal
Normal
Normal
Abnormal
Abnormal
Abnormal
Judgment
Judgment
Check No. 09
Check the outdoor fan.
Check No. 07
Check the installation
condition.
