Outdoor Unit SiBE12-728
306 Removal Procedure

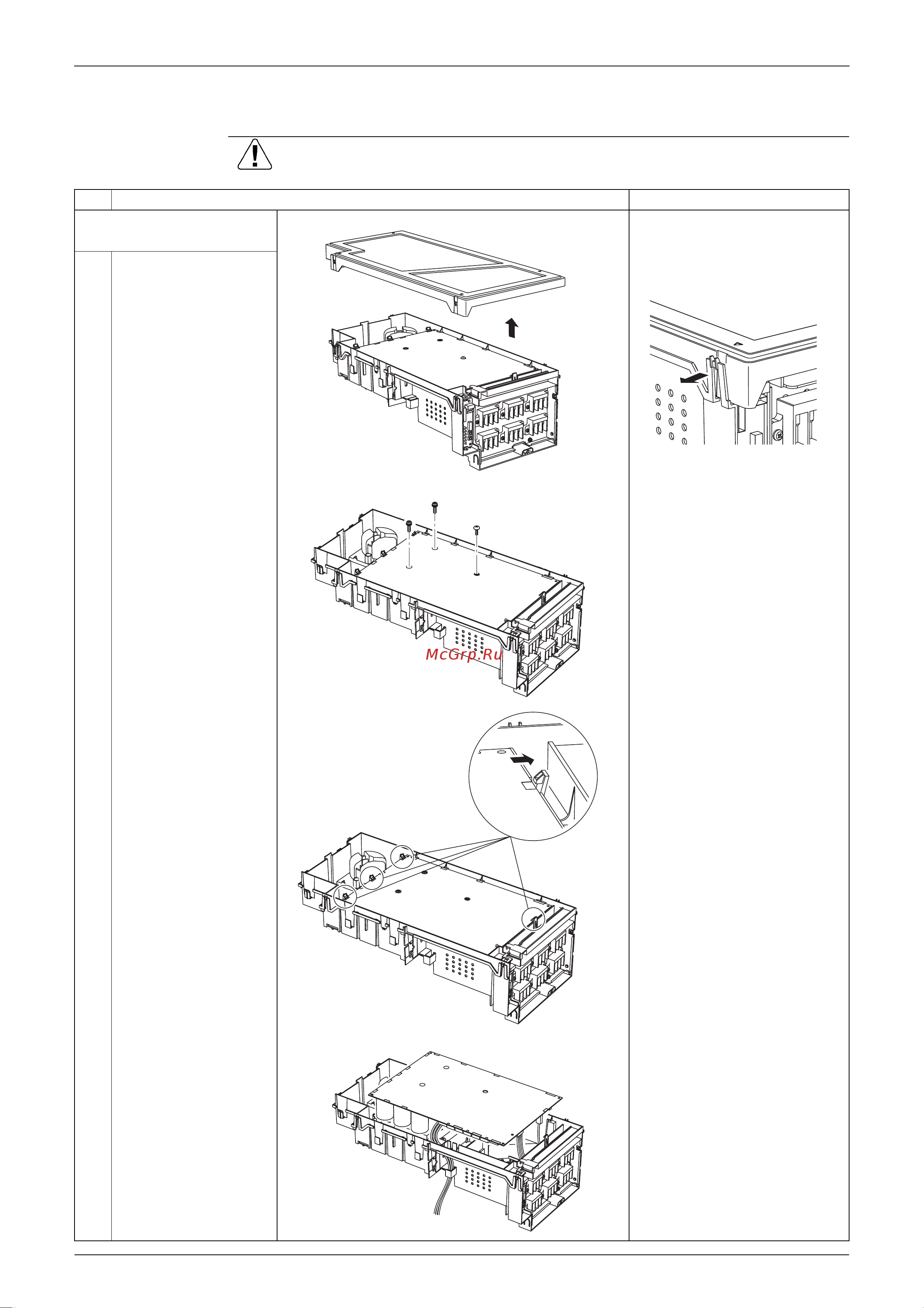

1.3 Removal of PCB
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step Procedure Points
1. Removing the Control
PCB
1 Open the cover of the
electrical box.
Undo the 4 hooks. The
hooks are marked with
▼
.
2 Remove the 3 screws.
3 Undo the 4 hooks.
4 Lift up your side of the
control PCB.
(R6426)
(R6427)
(R6428)
(R6429)
(R6430)
