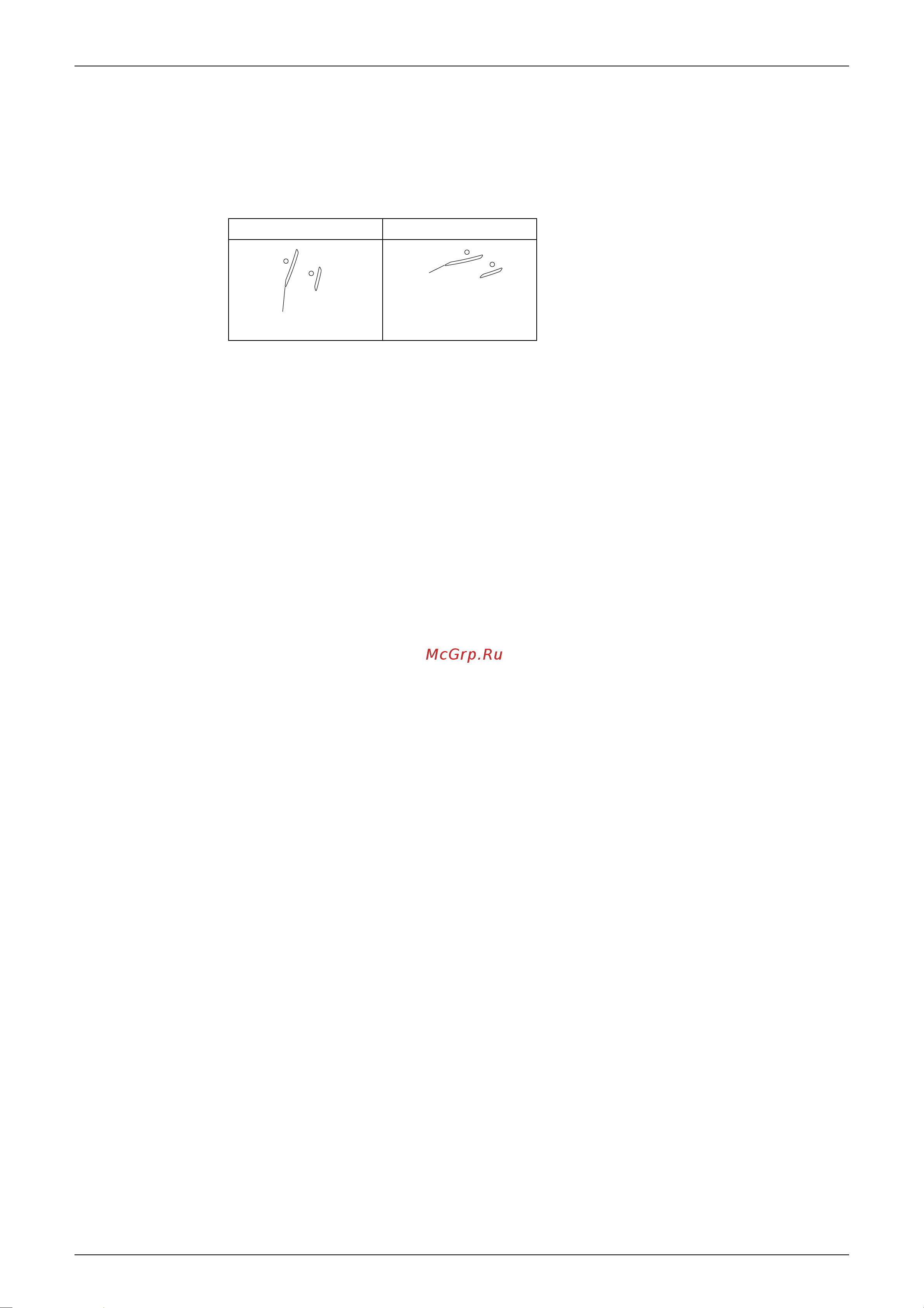

SiBE12-728 Main Functions
Function and Control 63
FTK(X)S20-50D
The vertical swing flap is controlled not to blow the air directly on the person in the room.
The airflow rate is controlled automatically within the following steps.
Cooling: L tap – MH tap (same as AUTOMATIC)
Heating: ML tap – M tap
The latest command has the priority between POWERFUL and COMFORT AIRFLOW.
Heating Cooling
(R4303)
70
°
(R4302)
5
°
