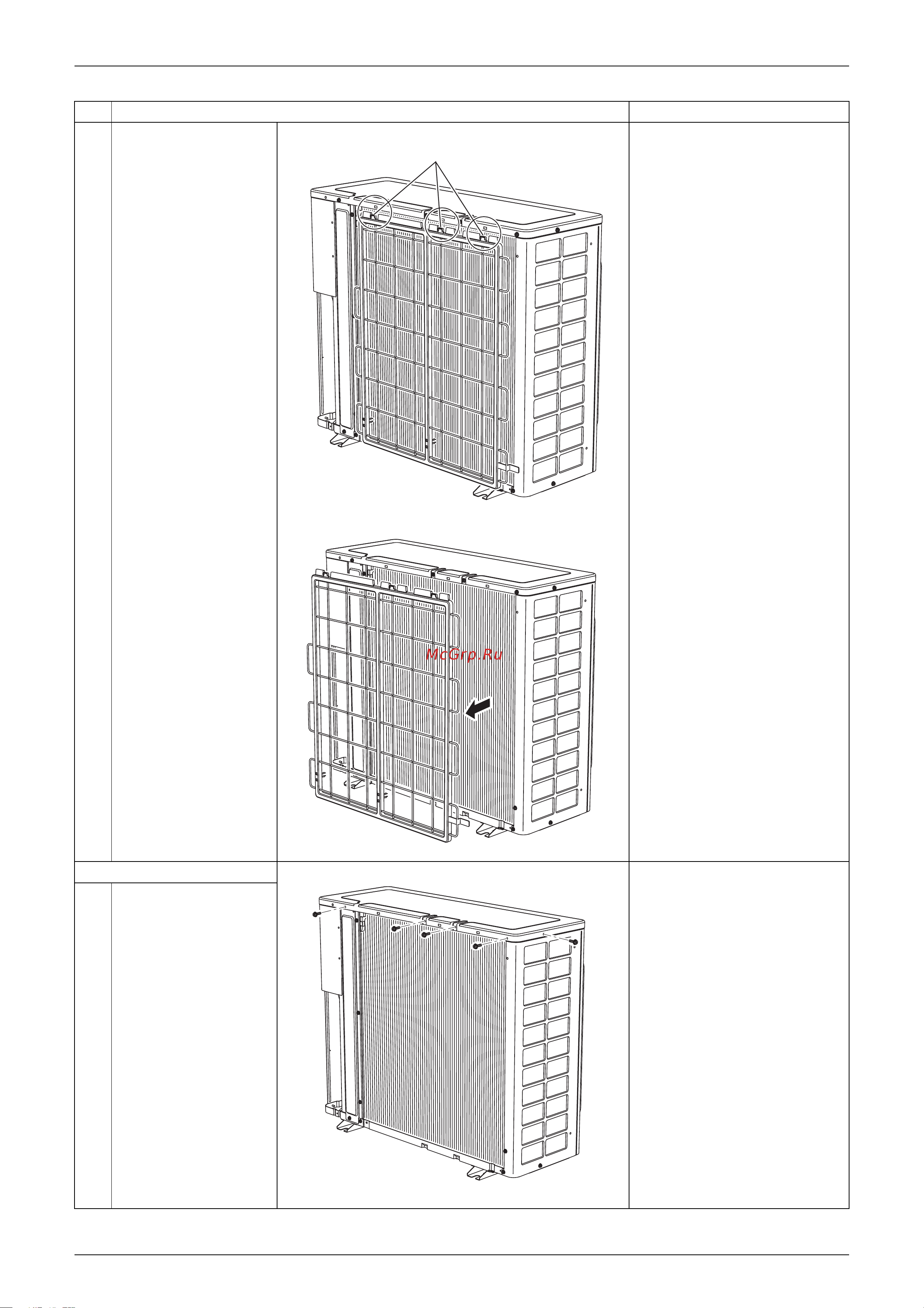

SiBE12-728 Outdoor Unit
Removal Procedure 285
2
Next, slide the grille
downward to undo the 3
top hooks.
3
Remove the suction
grille.
2. Removing the top panel.
1
Remove the 4 screws
on the back and 1
screw on the left side
panel.
Step Procedure Points
Hooks
(
R6371
)
(R6372)
(R6373)
