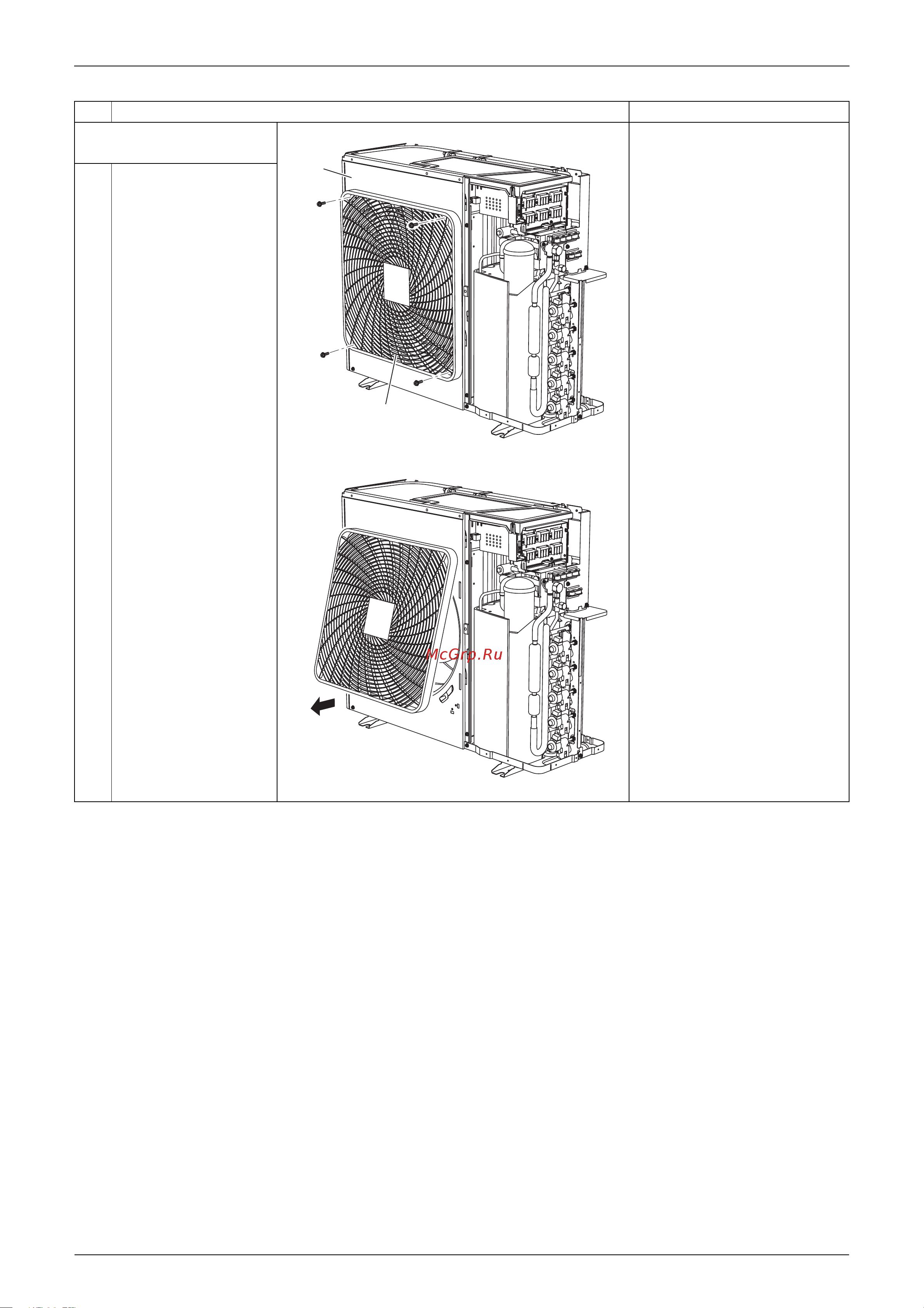

Outdoor Unit SiBE12-728
290 Removal Procedure
5. Removing the front panel
(1)
Remove the discharge grille and
propeller fan first to remove the
front panel (1).
1
Remove the 4 screws
on the discharge grille.
2
Pull the bottom of the
discharge grille toward
yourself.
Step Procedure Points
Front
Panel (1)
Discharge grille
(R6385)
