Outdoor Unit SiBE12-728

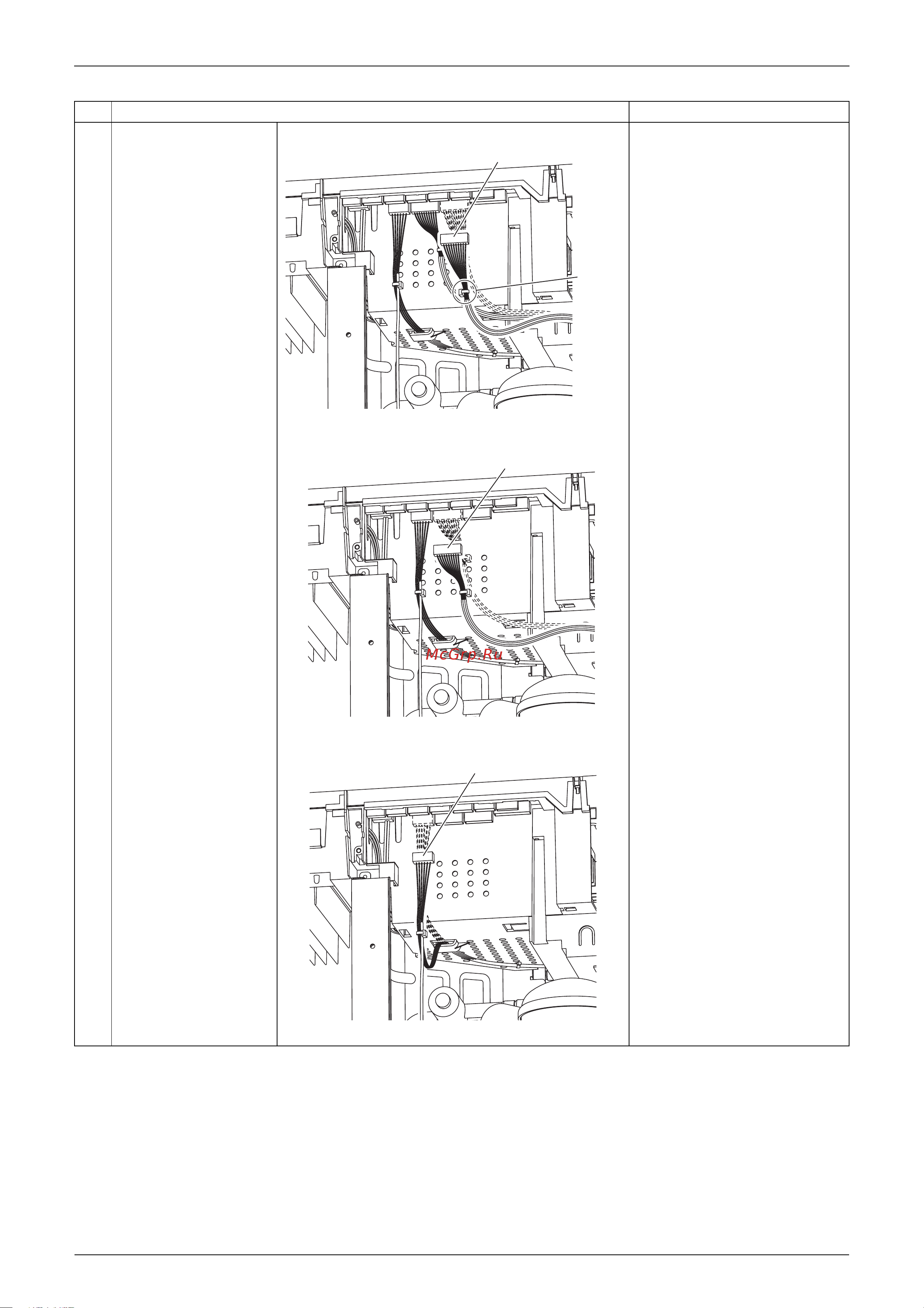

302 Removal Procedure
8 Disconnect the liquid
pipe thermistor
connector S93.
9 Disconnect the gas pipe
thermistor connector
S92.
10 Disconnect the
discharge pipe
thermistor connector
S90.
Step Procedure Points
Clamp
[S93]
(R6417)
[S92]
(R6418)
[S90]
(R6419)
