Руководство пользователя Страница: 100

Aten PG95330 [100/136] Press select button to select the outlet to be checked and press enter button to enter the outlet detailed page to select the action to be taken

eco PDU PG Series User Manual

106

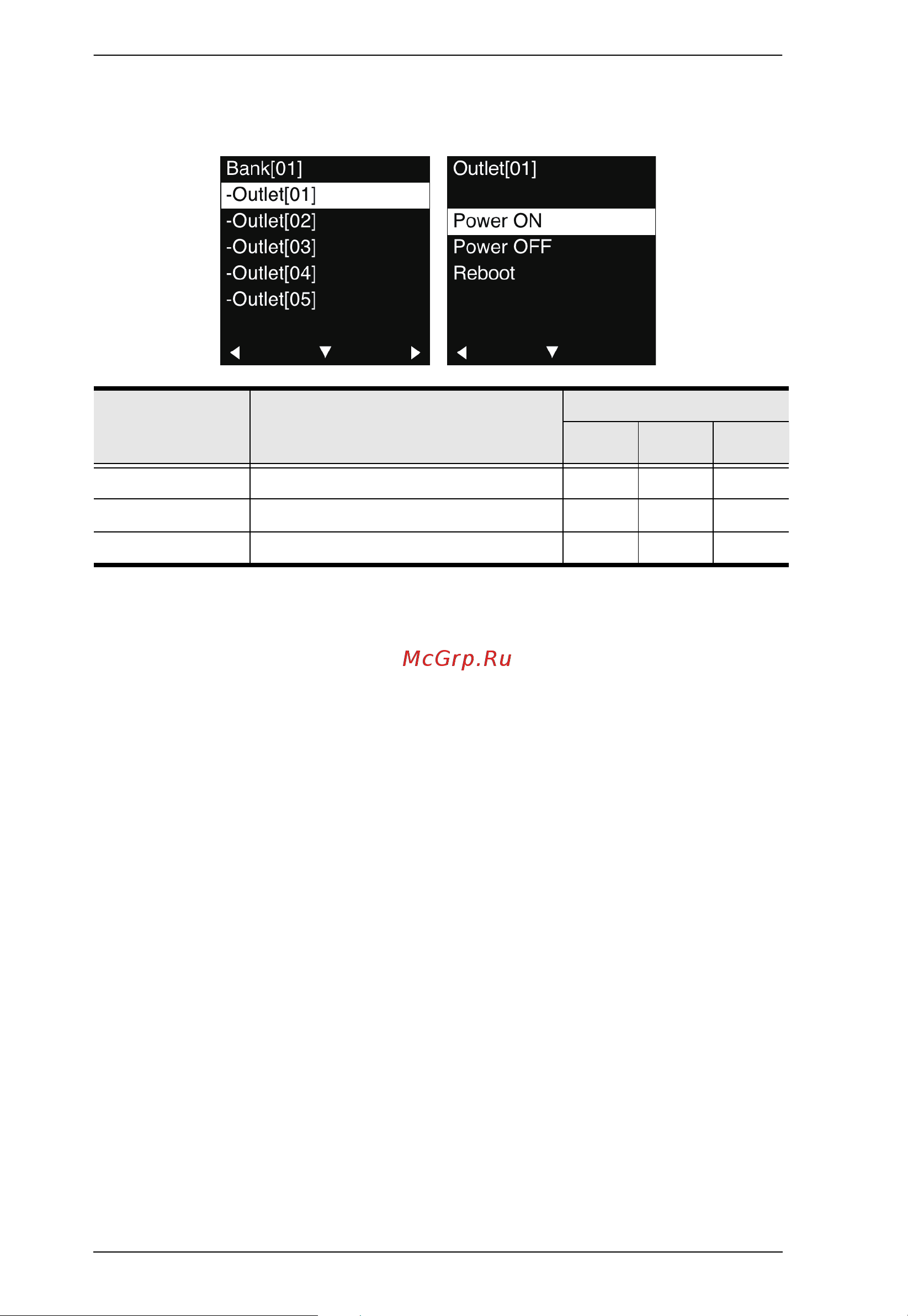

press SELECT button to select the outlet to be checked and press ENTER

button to enter the outlet detailed page to select the action to be taken:

Item Description

Supported Model

PG95

Series

PG96

Series

PG98

Series

Power ON Turn the outlet on.  

Power OFF Turn the outlet off.  

Reboot Reboot the outlet.  
