Aten PG95330 [43/136] Energy

Chapter 5

Energy

Connections

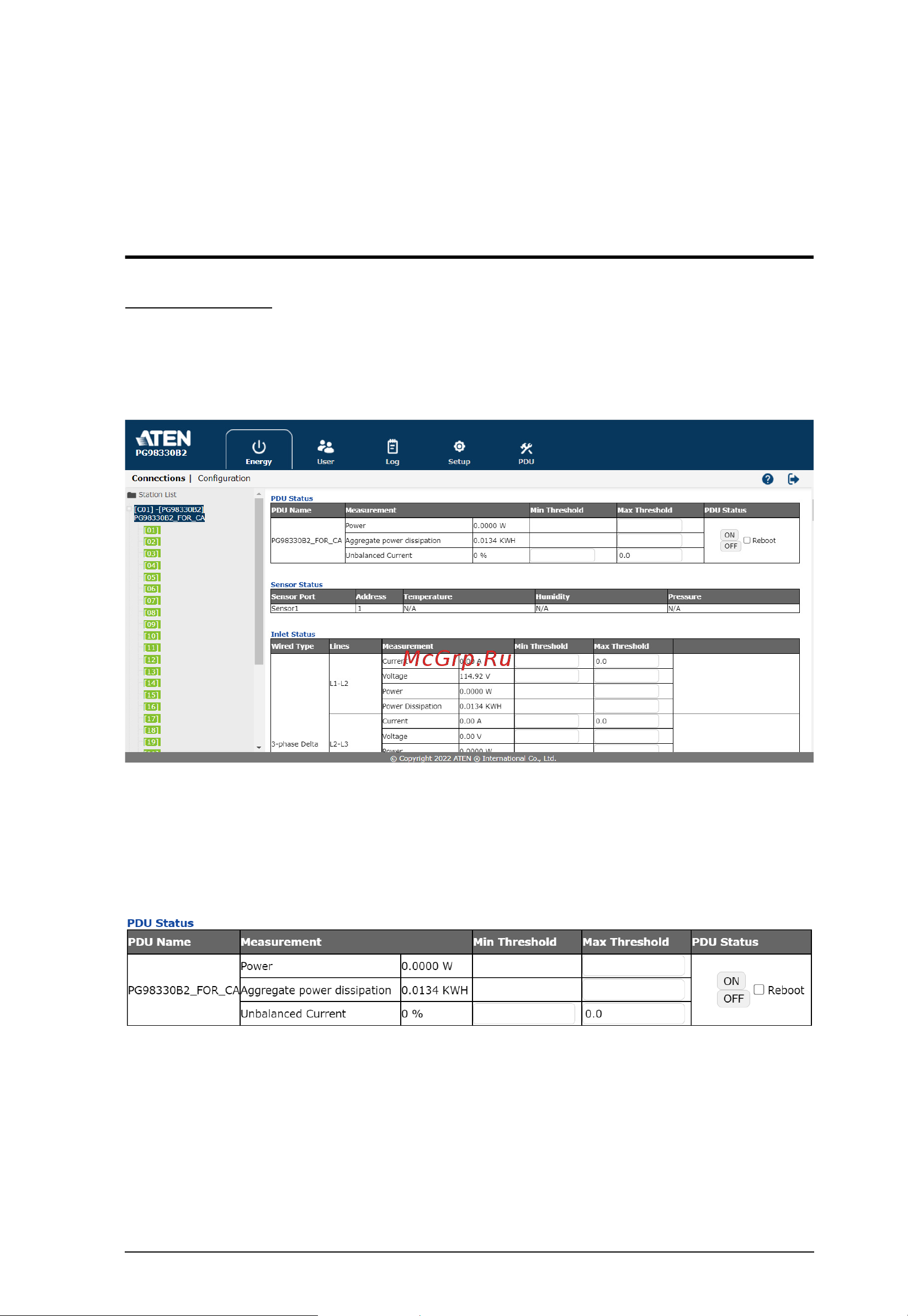

When you log in to the eco PDU, the interface opens with its default selection

of Energy

Connections, with the PDU Status, Sensor Status, Inlet Status,

Bank Status, and Outlet Status sections displayed in the main panel.

PDU Status

All eco PDU models support PDU device level monitoring. The PDU Status

section allows you to set up a power management configuration for the PDU

device as a whole:

 PDU Threshold Settings

These fields are used to set the maximum threshold settings for the Power,

and Aggregate Power Dissipation. If any of them falls below the minimum

setting or exceeds the maximum setting, an alarm is triggered.
