Aten PG95330 [83/136] Cascade

Chapter 8. Setup

Cascade

The Cascade page allows you to manage and cascade eco PDU in your

installation.

Adding a PDU

To add a cascade PDU, do the following:

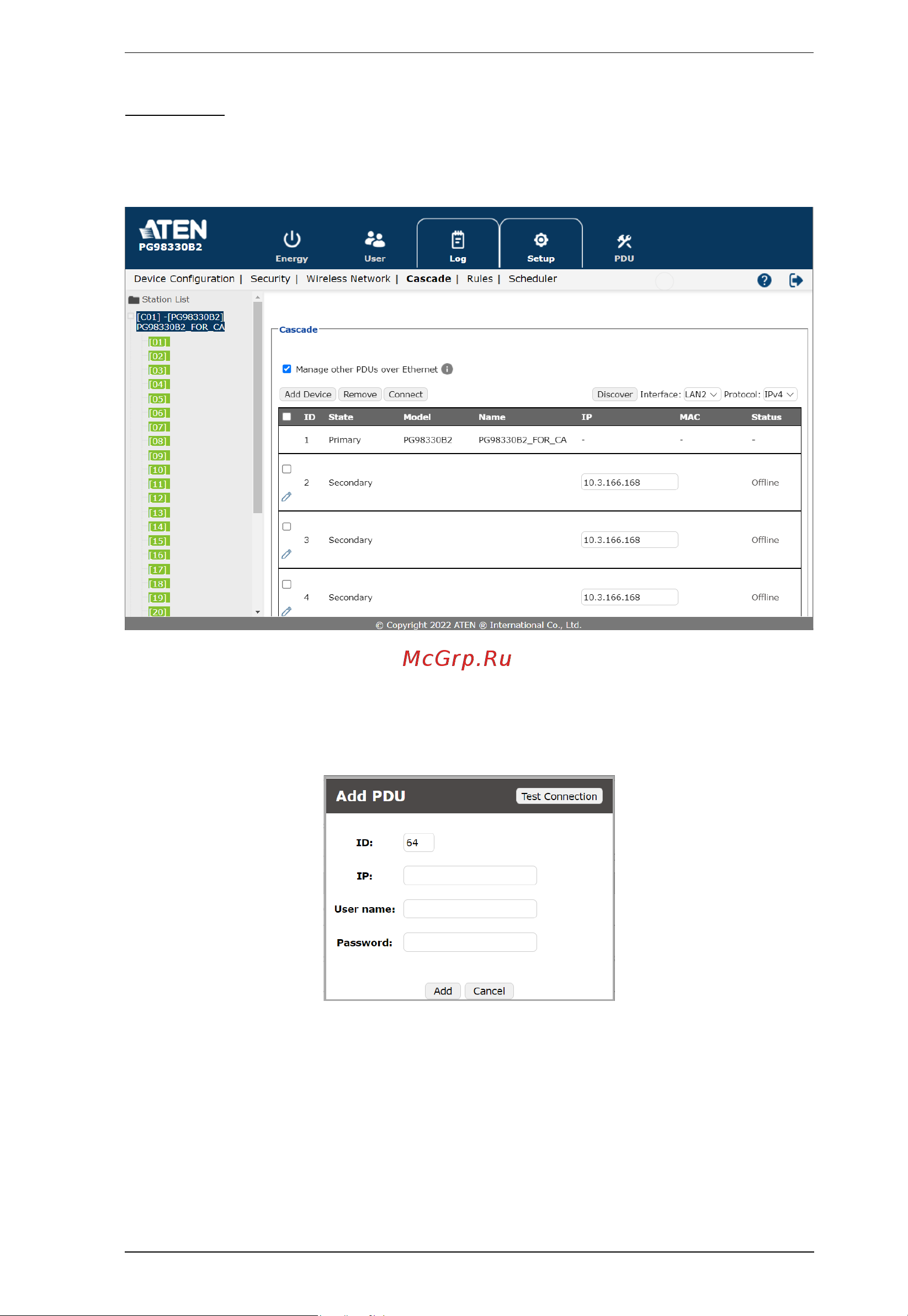

1. Click Add Device. A dialog box similar to the one below appears:

2. Specify the ID, IP address, username, and password in the dialog box, then

click Add.

3. (Optional) You may test the connection between to cascade eco PDU

before you click Add.
