Aten PG95330 [68/136] Syslog server

eco PDU PG Series User Manual

4. Key in the community value(s) if required by the version of SNMP

(SNMPv1 and SNMPv2c) used.

5. Key in the auth/privacy password(s) that correspond to each of the stations

by the version of SMP (SNMPv3) used.

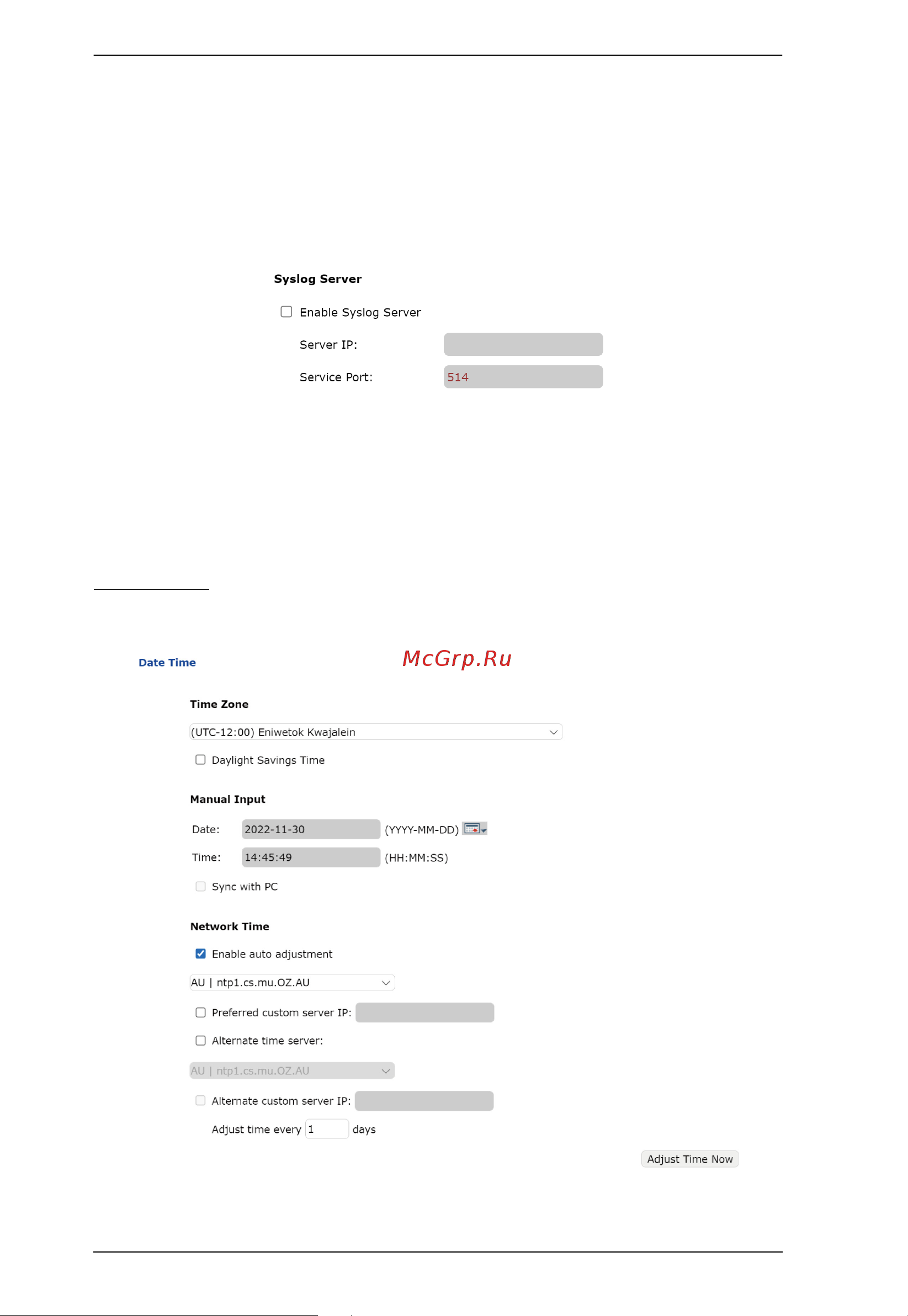

Syslog Server

To record all events that take place on the eco PDU devices, and write them to

the eco PDU Syslog server, do the following:

1. Check Enable Syslog Server.

2. Key in the IP address and port number of the Syslog server. The valid port

range is 1-65535. The default port value is 514.

Date/Time

The Date/Time dialog page sets the eco PDU’s time parameters:

Set the parameters according to the information described below.
