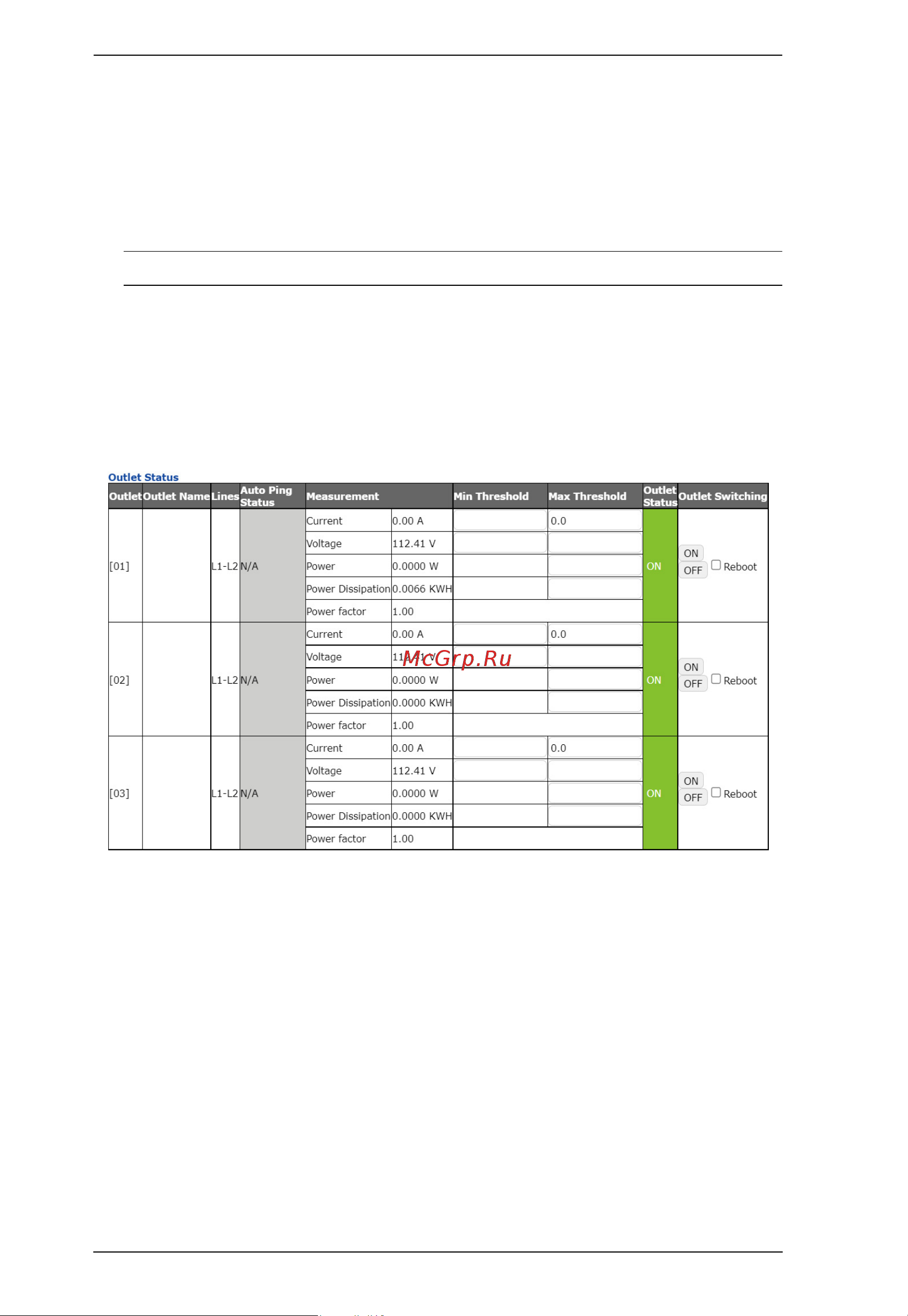

![Aten PG95330 [46/136] Outlet status](/views2/1978006/page46/bg2e.png)
eco PDU PG Series User Manual
52
On / Off / Reboot
You can manually turn the device on or off from this page by clicking the
ON / OFF buttons. To Reboot the device, enable the Reboot checkbox and
click OFF (reboot only works on the eco PDUs with Bank Outlet Status
ON).
Note: PG95 series does not support On / Off / Reboot functions.
Outlet Status
Only PG98 series supports Outlet level monitoring. The Outlet Status section
allows you to set up a power management configuration for each of the
individual outlets:
Threshold Settings
These fields are used to set the maximum and minimum threshold settings
for the Aggregate Current, Voltage, Power, and Power Dissipation. If any
of them falls below the minimum setting or exceeds the maximum setting,
an alarm is triggered.
Outlet Status
Indicates each outlet status (ON / OFF / POP).
On / Off / Reboot
You can manually turn the outlet on or off from this page by clicking the
ON / OFF buttons. To Reboot the device, enable the Reboot checkbox and
click OFF (reboot only works on the eco PUDs with Outlet Status ON).
