Aten PG95330 [89/136] Upgrade main firmware

Chapter 9

PDU

The PDU function is used to upgrade the eco PDU’s firmware, and to backup

and restore the device’s configuration settings.

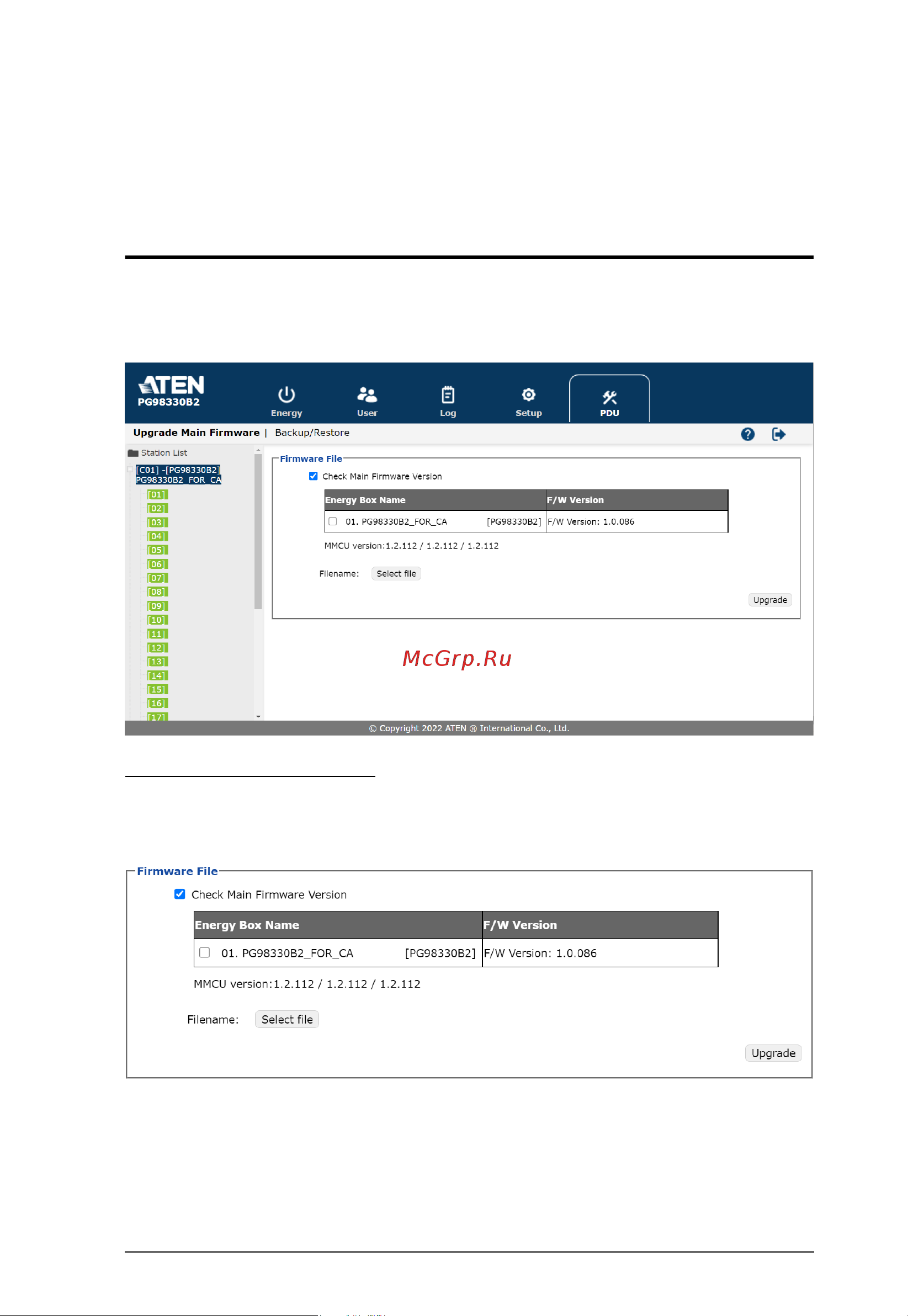

Upgrade Main Firmware

The Upgrade Main Firmware page is used to upgrade the firmware of the eco

PDU.
