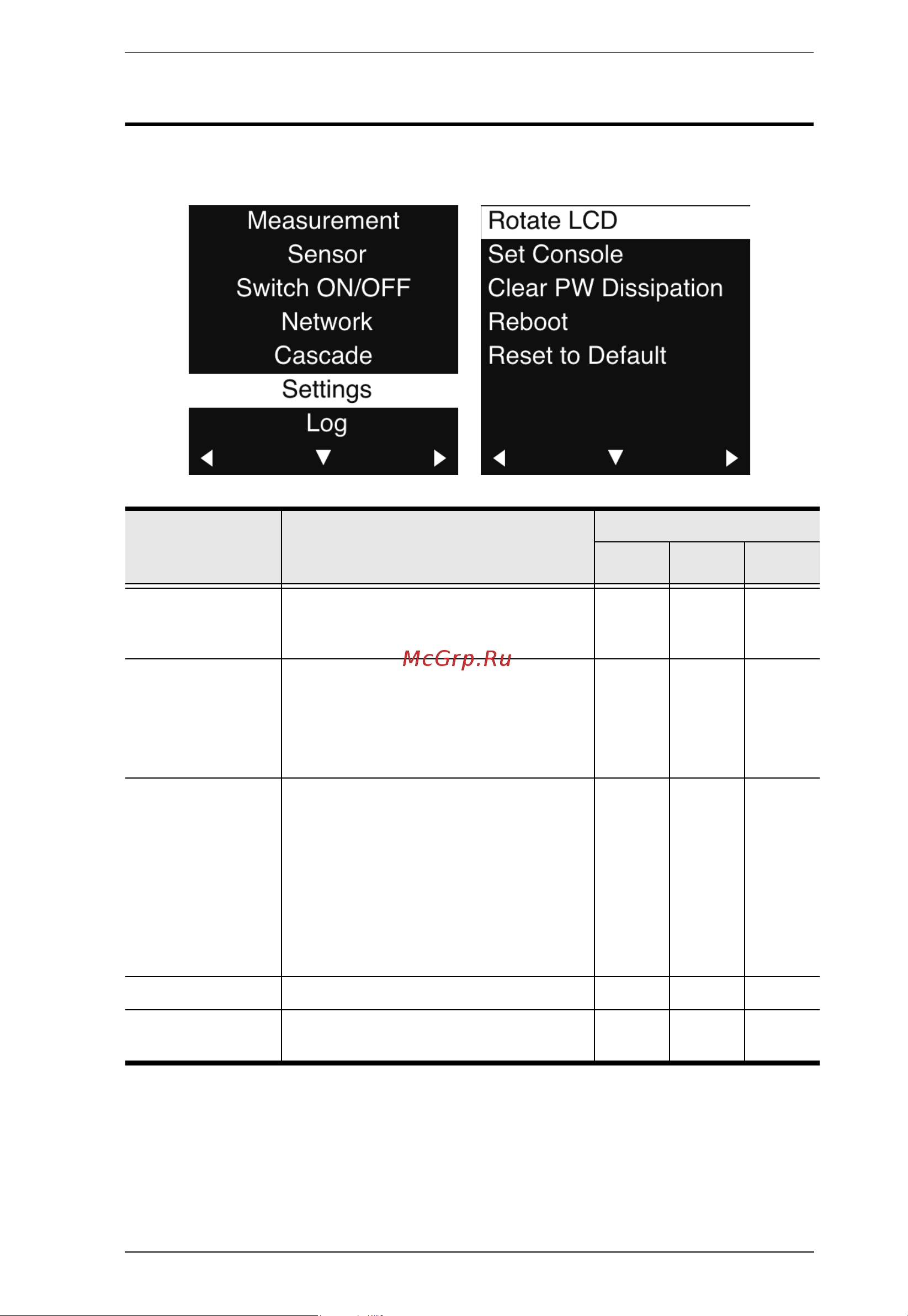

Chapter 10. LCD Menu
109
Settings
Item Description
Supported Model
PG95
Series
PG96
Series
PG98
Series
Rotate LCD Select the angle to rotate the unit's
screen to fit your installation. The
options are 0° and 180°.
Set Console Select the console mode between
RS232, RS485, and PON. See Serial
Settings for details.
Note: The function PON will be
included in a future firmware release.
Clear PW
Dissipation
For PG95 series, you can only check
the power dissipation of Bank level.
For PG96 and PG98 series, besides
Bank level, you can also check the
power dissipation for each of the
individual outlets.
Enter the detailed page to select Clear
to clear the power dissipation
information.
Reboot Reboot the eco PDU.
Reset to Default Reset the eco PDU to factory default
settings.
